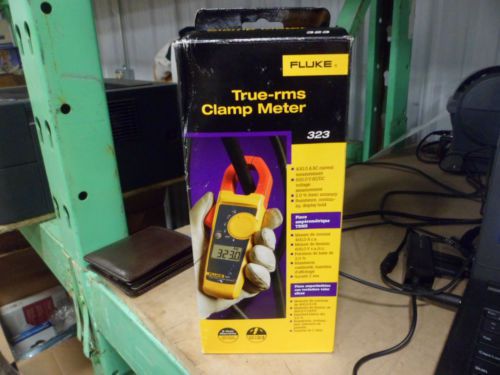

Fluke 323 True-rms Clamp Meter

US $510

Orchard Park, New York, United States
Feb 26th

Open on mobile:
QR code

Digital clamp meter measures AC current to 400 amp, AC and DC voltage to 600V, and resistance to 4 kilohmsTrue RMS sensing meter provides accurate readings when measuring linear or non-linear loads, regardless of waveformJaw opening measures current in a conductor up to 30mm without touching or interrupting the circuitAudible continuity sensor confirms that the circuit conducts electricityMeets IEC safety standard 61010-1, and is rated for CAT IV installations to 300V and CAT III installations to 600VProduct Description Style: 400A AC True RMS Clamp Meter The Fluke 323 digital clamp meter is a true RMS sensing, auto-ranging multimeter for measuring current, voltage, and resistance in electrical testing applications. It has a clamp that measures AC current to 400 amp. The clamp has two jaws that can close around an electrical conductor up to 30mm in diameter to measure current without touching or interrupting the circuit. A set of test leads is included for measuring AC and DC voltage to 600V and resistance to 40 kilohms. An audible continuity sensor confirms that the circuit conducts electricity. To aid documentation of readings and capture readings in tight spaces, the data hold function keeps the most recent reading on the display after disconnecting from the circuit. The meter has a rotary switch to select the property to measure, and a four-digit LCD that shows readings. The unit operates on two AAA batteries, and it has a low-battery indicator that signals when the battery needs to be replaced. Clamp meters are typically used by electrical engineers to measure properties of electrical current without physically touching or disconnecting the conductor.This true RMS (root mean square) sensing meter provides accurate readings when measuring linear or non-linear loads, regardless of waveform. It is auto-ranging, so it automatically selects the appropriate operating range for the property being measured. Accuracy and resolution specifications vary according to the range being measured. It meets International Electrotechnical Commission (IEC) safety standard 61010-1 and is rated for CAT IV installations to 300V, which covers measurements at the source of the low-voltage supply such as electricity meters and overcurrent protection devices, and CAT III installations to 600V, which covers items used with enclosed building circuit installations, such as service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply. The European Conformity (CE) marking indicates compliance with applicable European Union directives. The unit comes with a test lead set, a carrying case, and instructions.SpecificationsMaximum AC input400 ampMaximum AC voltage input600VMaximum DC voltage input600VMaximum resistance detected40 K?Installation ratingCAT IV, 300V; CAT III, 600VIngress protectionIP30Standards metIEC safety standard 61010-1; CE marking; CSA; Australia N10140Power supply(2) AAA batteriesWeight265gDimensions207 x 75 x 34mm (H x W x D) H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.Clamp meters, also called clamp-on meters, measure electrical current without cutting through wires, or touching or interrupting the electrical circuit. Available in handheld or benchtop models, clamp meters diagnose problems in electrical equipment, wiring, and power supplies. A current clamp has two jaws that fit around a conductor to take measurements. All clamp meters test for current. Some come with test leads and inputs for measuring voltage, capacitance, and resistance. They display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltages. Safety ratings are based on International Electrotechnical Commission (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.Fluke Corporation manufactures electrical testing tools and software for industrial and commercial applications. The company, founded in 1948, is headquartered in Everett, WA.What's in the Box?Fluke 323 True-RMS clamp meterTest lead setSoft caseInstructions

“Item is new in distressed packaging.”

Brand

Fluke
