Fluke 435 Series Ii 2 Three Phase Power Quality Analyzer Meter W Transients

US $7,195.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

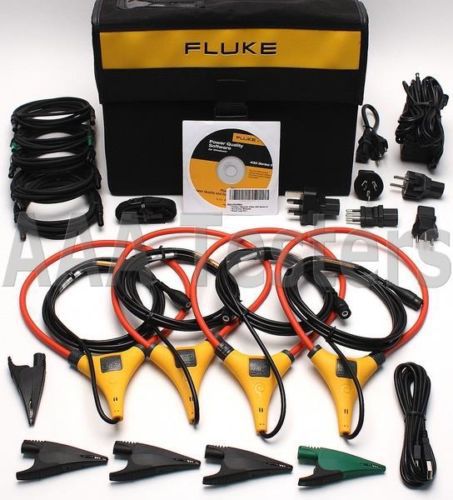

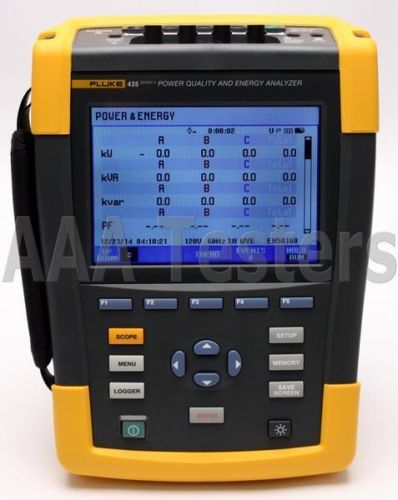

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: Fluke 435 Series II HandHeld Power Quality Analyzer (BC# 19415) w/ Options: V/A/Hz Dips & Swells Harmonics Power & Energy Energy Loss Calculator Power Inverter Efficiency Unbalance Inrush Monitor Flicker Transients Power Scope Record Mains Signaling Event Capture (4) Fluke i430 Flex Cables (5) Fluke Test Leads (4-Black, 1-Green) (5) Alligator Clips (4-Black, 1-Green) Fluke Power Quality Software CD (6) International Adapters AC Adapter/Charger USB PC Interface Cable Strap For Unit Carrying Case BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Fluke 435 Series II HandHeld Three-Phase Power Quality Analyzer Installed Options: - V/A/Hz - Dips & Swells - Harmonics - Power & Energy - Energy Loss Calculator - Power Inverter Efficiency - Unbalance - Inrush - Monitor - Flicker - Transients - Power Scope Record - Mains Signaling - Event Capture Includes (4) Fluke i430 Flex Cables, Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty Advanced power quality functions, unprecedented energy analysis capabilities Think of the Fluke 435 II Power Quality and Energy Analyzer as your insurance policy. No matter what goes wrong in your facility, with the 435 II you will always be prepared. Equipped with advanced power quality functions and energy monetization capabilities, there is no electrical issue this model can’t handle. Applications: PowerWave data capture – capture fast RMS values to see every waveform so you can determine how the voltage, current and frequency values are interacting Power inverter efficiency – Power inverter efficiency Energy monetization – calculate the fiscal cost of energy waste due to poor power quality Energy assessment – quantify the before and after installation improvements in energy consumption to justify energy saving devices Frontline troubleshooting – quickly diagnose problems on-screen to get your operation back online Predictive maintenance – detect and prevent power quality issues before they cause downtime Long-term analysis – uncover hard-to-find or intermittent issues Load studies – verify electrical system capacity before adding loads Features: Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp. PowerWave data capture: Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.). Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint the fiscal costs of energy losses. Troubleshoot real-time: Analyze the trends using the cursors and zoom tools. Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance. Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex design to fit into the tightest places. Automatic Trending: Every measurement is always automatically recorded, without any set-up. System-Monitor: Ten power quality parameters on one screen according to EN50160 power quality standard. Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals. View graphs and generate reports: With included analysis software. Battery life: Seven hours operating time per charge on Li-ion battery pack. PowerWave data capture For some users, loads switching is a cause of power quality problems. When loads switch on, the current draw sometimes causes the voltage to drop to a level that causes other equipment to malfunction. The PowerWave function available in the 435 and 437 Series II models enables users to capture voltage, current and frequency signals simultaneously at a high speed to see which interaction is potentially causing problems. PowerWave goes beyond standard power quality measurements; PowerWave’s fast data capture mode enables system dynamics to be characterized. Waveforms for voltage and current are continuously captured for the specified time, and are displayed on screen in high detail; the power waveform is derived from the data. In addition, half-cycle RMS values for voltage, current, power and frequency can be stored and retrieved for analysis. This feature is particularly useful for testing of standby generation systems and UPS systems where reliable switch-on can be vital. Power inverter efficiency Power inverters take DC current and transform it into AC current, or vice versa. Solar generation systems usually include an inverter that takes the DC energy from the solar cells and converts it to useful AC power. Inverters can lose performance over time and need to be checked. By comparing the input power with the output power you can determine the system efficiency. The 430 series II can measure the efficiency of such inverters by simultaneously measuring the DC and AC power of a system to determine how much power is lost in the conversion process. Unified power measurement Previously, only experts could calculate how much energy was wasted due to power quality issues; utilities could calculate the cost, but the required measurement process was beyond the reach of average electricians. With the new, patented Unified Power function of the 430 Series II, you can use one handheld tool to determine how much power is being wasted, and calculate exactly what the extra consumption costs. Fluke’s patented Unified Power Measurement System provides the most comprehensive view of power available, measuring: Parameters of Classical Power (Steinmetz 1897) and IEEE 1459-2000 Detailed Loss Analysis Unbalance Analysis Unbalance Analysis These UPM calculations are used to quantify the fiscal cost of energy loss caused by power quality issues. The calculations are computed, along with other facility-specific information by an Energy Loss Calculator that ultimately determines how much money a facility loses due to wasted energy. AutoTrend - Quickly see the trend Unique AutoTrend gives you fast insight into changes over time. Every displayed reading is automatically and continuously recorded without having to set up threshold levels or having to manually start the process. You can quickly view trends in voltage, current, frequency, power, harmonics or flicker on all three phases plus neutral. SystemMonitor - Check performance against EN50160 with ease With a single push of a button, the unique System-Monitor gives you an overview of power system performance, and checks the compliance of incoming power to EN50160 limits or to your own custom specifications. The overview is shown on a single screen, with color-coded bars clearly indicating which parameters fall outside the limits. Product specifications Model Measurement range Resolution Accuracy Volt Vrms (ac+dc) 435-II 1 V to 1000 V phase to neutral 0.01 V ± 0.1% of nominal voltage**** Vpk 1 Vpk to 1400 Vpk 1 V 5% of nominal voltage Voltage Crest Factor (CF) 1.0 > 2.8 0.01 ± 5 % Vrms 1/2 435-II 0.1 V ± 0.2% of nominal voltage Vfund 435-II 0.1 V ± 0.1% of nominal voltage Amps (accuracy excluding clamp accuracy) Amps (ac +dc) i430-Flex 1x 5 A to 6000 A 1 A ± 0.5% ± 5 counts i430-Flex 10x 0.5 A to 600 A 0.1 A ± 0.5% ± 5 counts 1mV/A 1x 5 A to 2000 A 1A ± 0.5% ± 5 counts 1mV/A 10x 0.5 A A to 200 A (ac only) 0.1 A ± 0.5% ± 5 counts Apk i430-Flex 8400 Apk 1 Arms ± 5 % 1mV/A 5500 Apk 1 Arms ± 5 % A Crest Factor (CF) 1 to 10 0.01 ± 5 % Amps 1/2 i430-Flex 1x 5 A to 6000 A 1 A ± 1% ± 10 counts i430-Flex 10x 0.5 A to 600 A 0.1 A ± 1% ± 10 counts 1mV/A 1x 5 A to 2000 A 1A ± 1% ± 10 counts 1mV/A 10x 0.5 A A to 200 A (ac only) 0.1 A ± 1% ± 10 counts Afund i430-Flex 1x 5 A to 6000 A 1 A ± 0.5% ± 5 counts i430-Flex 10x 0.5 A to 600 A 0.1 A ± 0.5% ± 5 counts 1mV/A 1x 5 A to 2000 A 1A ± 0.5% ± 5 counts 1mV/A 10x 0.5 A A to 200 A (ac only) 0.1 A ± 0.5% ± 5 counts Hz Hz Fluke 435 @ 50 Hz nominal 42.500 Hz to 57.500 Hz 0.001 Hz ± 0.01 Hz Fluke 435 @ 60 Hz nominal 51.000 Hz to 69.000 Hz 0.001 Hz ± 0.01 Hz Power Watts (VA, var) i430-Flex max 6000 MW 0.1 W to 1 MW ± 1% ± 10 counts 1 mV/A max 2000 MW 0.1 W to 1 MW ± 1% ± 10 counts Power factor (Cos j/DPF) 0 to 1 0.001 ± 0.1% @ nominal load conditions Energy kWh (kVAh, kvarh) i430-Flex 10x Depends on clamp scaling and V nominal ± 1% ± 10 counts Energy loss i430-Flex 10x Depends on clamp scaling and V nominal ± 1% ± 10 counts Excluding line resistance accuracy Harmonics Harmonic order (n) DC, 1 to 50 Grouping: Harmonic groups according to IEC 61000-4-7 Inter-harmonic order (n) OFF, 1 to 50 Grouping: Harmonic and Interharmonic subgroups according to IEC 61000-4-7 Volts %f 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.1 % %r 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.4 % Absolute 0.0 to 1000 V 0.1 V ± 5% * THD 0.0 % to 100 % 0.1 % ± 2.5 % Amps %f 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.1% %r 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.4 % Absolute 0.0 to 600 A 0.1 A ± 5% ± 5 counts THD 0.0 % to 100 % 0.1 % ± 2.5 % Watts %f or %r 0.0 % to 100 % 0.1 % ± n x 2% Absolute Depends on clamp scaling and V nominal — ± 5% ± n x 2 % ± 10 counts THD 0.0 % to 100 % 0.1 % ± 5 % Phase Angle -360° to +0° 1° ± n x 1° Flicker Plt, Pst, Pst(1min) Pinst 0.00 to 20.00 0.01 ± 5 % Unbalance Volts % 0.0 % to 20.0 % 0.1 % ± 0.1 % Amps % 0.0 % to 20.0 % 0.1% ± 1 % Mains signaling Threshold levels Threshold, limits and signaling duration is programable for two signaling frequencies — — Signaling frequency 60 Hz to 3000 Hz 0.1 Hz Relative V% 0 % to 100 % 0.10 % ± 0.4 % Absolute V3s (3 second avg.) 0.0 V to 1000 V 0.1 V ± 5 % of nominal voltage General specifications Case Design Rugged, shock proof with integrated protective holster Drip and dust proof IP51 according to IEC60529 when used in tilt stand position Shock and vibration Shock 30 g, vibration: 3 g sinusoid, random 0.03 g 2 /Hz according to MIL-PRF-28800F Class 2 Display Brightness: 200 cd/m 2 typ. using power adapter, 90 cd/m 2 typical using battery power Size: 127 mm x 88 mm (153 mm/6.0 in diagonal) LCD Resolution: 320 x 240 pixels Contrast and brightness: user-adjustable, temperature compensated Memory 8GB SD card (SDHC compliant, FAT32 formatted) standard, upto 32GB optionally Screen save and multiple data memories for storing data including recordings (dependent on memory size) Real-time clock Time and date stamp for Trend mode, Transient display, System Monitor and event capture Environmental Operating temperature 0 °C ~ +40 °C; +40 °C ~ +50 °C excl. battery Storage temperature -20 °C ~ +60 °C Humidity +10 °C ~ +30 °C: 95% RH non-condensing +30 °C ~ +40 °C: 75% RH non-condensing +40 °C ~ +50 °C: 45% RH non-condensing Maximum operating altitude Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V Maximum storage altitude 12 km (40,000 ft) Electro-Magnetic-Compatibility (EMC) EN 61326 (2005-12) for emission and immunity Interfaces mini-USB-B, Isolated USB port for PC connectivity SD card slot accessible behind instrument battery Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. --> This item is subject to a FIXED SHIPPING price. This means that the shipping fee will be the displayed amount for all ship-to destinations shown. This item is eligible for pickup unless otherwise stated. We do not ship to any destinations that are not specified here. Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do/do not cover this cost for all of our US customers. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept payment transactions via our online checkout system! Our checkout process is designed that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through our online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hrs upon receipt of payment from the winning bidder. A Shipment Tracking number will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Terms: All transactions are final. Winning bidder assumes all risk of liability with respect to the purchase of the product. Thank you WE ACCEPT ALL MAJOR CREDIT CARDS Put your listings on autopilot with Kyozou eBay Listing Tools

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	Fluke
Model	435 Series II
