Fluke 435 Three Phase Power Quality Analyzer Meter W/ Interharmonics Inrush

US $4,895.00

Toledo, Ohio, United States
Mar 7th

Open on mobile:
QR code

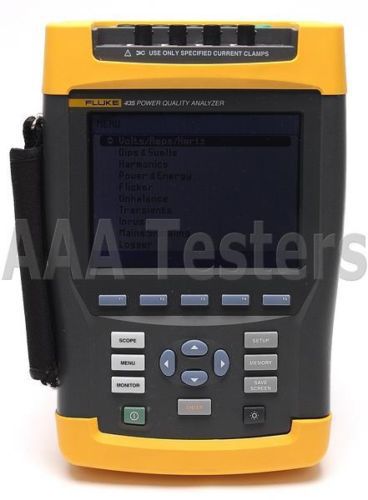

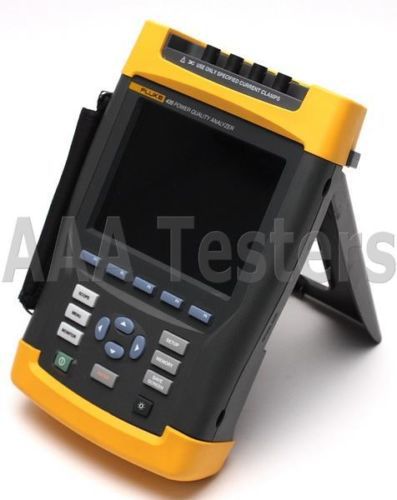

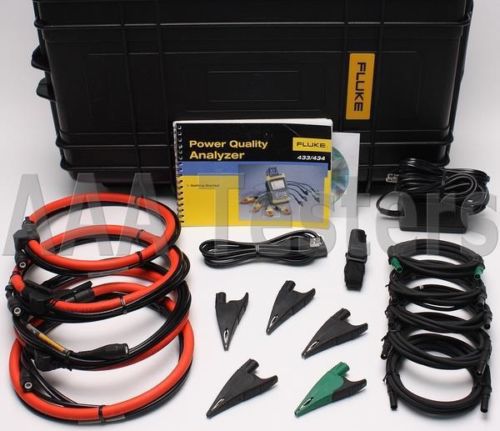

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: Fluke 435 HandHeld Power Quality Analyzer (BC# 19448) w/ Options: Transients Inrush Interharmonics Energy Memory Mains Signaling Logger (4) Fluke i430 Flex Cables (5) Test Leads Cables (4-Black, 1-Green) (5) Dolphin Clips (4-Black, 1-Green) Fluke Optical Interface Cable Fluke Power Quality Analyzer Getting Started Guide AC Adapter/Charger User Manual On CD-ROM Strap For Unit Hard Carrying Case BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Fluke 435 HandHeld Three-Phase Power Quality Analyzer Installed Options: - Transients - Inrush - Interharmonics - Energy - Memory - Mains Signaling - Logger Includes Hard Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty Fluke 435 Power Quality Analyzer These three-phase power quality meters help you locate, predict, prevent and troubleshoot problems in power distribution systems. These easy-to-use power quality tools are a “must have” for any person who maintains or troubleshoots three phase power. The new IEC Class A standards for flicker and power quality are built right in to take the guess work out of power monitoring. Troubleshoot real-time: Analyze the trends using the cursors and zoom tools-even while background recording continues Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance Automatic Transient Mode: Capture 200 kHz waveform data on all phases simultaneously up to 6 kV Fully Class-A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard Measure all three phases and neutral: With included four current probes AutoTrend: Every measurement you see is always automatically recorded, without any setup System-Monitor: Up to ten power quality parameters on one screen according to EN50160 power quality standard Inrush mode: For troubleshooting nuisance circuit breaker tripping View graphs and generate reports: With included analysis software Logger function: Configure for any test condition with memory for over 400 parameters at user defined intervals Mains signaling: Measure interference from ripple control signals at specific frequencies Battery Life: Seven hours operating time per charge on NiMH battery pack Applications Frontline troubleshooting – quickly diagnose problems on-screen to get your operation back online Predictive maintenance – detect and prevent power quality issues before they cause downtime Quality of service compliance – validate incoming power quality at the service entrance Long-term analysis – uncover hard-to-find or intermittent issues Load studies – verify electrical system capacity before adding loads Energy assessments – quantify energy consumption before and after improvements to justify energy saving devices Features: Complete three-phase troubleshooting tool: measures virtually every power system parameter: voltage, current, frequency, power, power consumption (energy), unbalance and flicker, harmonics and inter-harmonics. Captures events like dips and swells, transients, interruptions and rapid voltage changes. The Fluke 435 features 0.1 percent voltage accuracy making it fully compliant with the IEC 61000-4-30 Class A standard Logger function: record the detail you need. Detailed, user-configurable long-time recording gives you the MIN, MAX and AVG readings of up to 100 parameters on all 4 phases with selectable averaging time down to 0.5 seconds. Enough memory is available to record 400 parameters with 1 minute resolution for up to a month. Four channels: simultaneously measures voltage and current on all three phases and neutral. AutoScaling: easier trend analysis with automatic scaling of the vertical axis you will always use the full display to view the waveforms. Automatic transient display: captures up to 40 dips, swells, interruptions or transients automatically. Meets the stringent 600 V CAT IV, 1000 V CAT III safety standard required for measurements at the service entrance. Rugged, handheld instrument operates for more than 7 hours on included rechargeable NiMH battery pack. Menu-driven interface simplifies operation. Extensive data analysis possibilities. Cursors and zoom can be used ‘live’ while taking the measurements, or ‘offline’ on stored measurement data. The stored measurements can also be transferred to a PC with FlukeView software. The Fluke 435 comes with Power log software to analyse recorded data and to create reports. Complies with IEC 61000-4-30 measurement standards Power quality analyzer selection table 435 434* Measures voltage, current, dips, swells, interruptions, harmonics, inter-harmonics, flicker, power, energy, transients, frequency, unbalance, inrush, EN50160 overview • • Logger function with multi-parameter logging • optional* Mains signaling • optional* Memory size 16 MB 8 MB Current probes 3000 A flexible (4) 40 A/400 A clamp (4) Carrying case water-tight hard case with rollers rugged hard case Software Fluke Power Log and FlukeView® FlukeView® Technical Data Inputs Number: 4 voltage and current (3 phases + neutral) Maximum voltage: 1000 Vrms (6 kV peak) Maximum sampling speed: 200 kS/s on each channel simultaneously Volt/Amps/Hertz Vrms (AC + DC) Measurement range: 1 ... 1000 V Accuracy: 0.1% of Vnom Vpeak Measurement range: 1 ... 1400 V Accuracy: 5% of Vnom Crest factor, voltage Measurement range: 1.0 ... > 2.8 Accuracy: ±5% Arms (AC + DC) Measurement range: 0 ... 20 kA Accuracy: ±0.5% ± 5 counts Apeak Measurement range: 0 ... 5.5 kA Accuracy: 5% Crest factor, A Measurement range: 1 ... 10 Accuracy: ±5% Hz 50 Hz nominal Measurement range: 40 ... 70 Hz Accuracy: ±0.01 Hz Dips and swells Vrms (AC+DC) ? Measurement range: 0.0% … 100% of Vnom Accuracy: ±0.2% of nominal voltage Arms (AC+DC) ? Measurement range: 0 ... 20 kA ? Accuracy: ±1% ± 5 counts Harmonics Harmonic (interharmonic) (n) Measurement range: DC, 1..50; (Off, 1..49) measured according to IEC 61000-4-7 Vrms Measurement range: 0.0 … 1000 V Accuracy: ±0.05% of nominal voltage Arms Measurement range: 0.0 … 4000 mV x clamp scaling Accuracy: ±5% ± 5 counts Watts Measurement range: Depends on clamp scaling and voltage Accuracy: ±5% ± n x 2% or reading, ± 10 counts DC voltage Measurement range: 0.0 … 1000 V Accuracy: ±0.2% of nominal voltage THD Measurement range: 0.0 … 100.0% Accuracy: ±2.5% V and A (± 5% Watt) Hz Measurement range: 0 … 3500 Hz Accuracy: ± 1 Hz Phase angle Measurement range: -360? ... +360? Accuracy: ± n x 1.5? Power and energy Watt, VA, VAR Measurement range: 1.0 … 20.00 MVA? Accuracy: ±1% ± counts kWh, kVAh, kVARh Measurement range: 00.00 …200.0 GVAh? Accuracy: ± 1.5% ± 10 counts Power Factor/ Cos Ф / DPF Measurement range: 0…1 Accuracy: ± 0.03 Flicker Pst (1 min), Pst, Plt, PF5 Measurement range: 0.00 … 20.00 Accuracy: ±5% Unbalance Volts Measurement range: 0.0 … 5.0% Accuracy: ±0.5% Current Measurement range: 0.0 … 20% Accuracy: ± 1% Transient Capture Volts Measurement range: ±6000 V Accuracy: ±2.5% of Vrms Minimum detect duration 5 µs (200kS/s sampling) Inrush mode Arms (AC+DC) Measurement range: 0.000 … 20.00 kA? Accuracy: ±1% of meas ± 5 counts Inrush duration (selectable) Measurement range: 7.5 s ... 30 min Accuracy: ±20 ms (Fnom = 50 Hz) Autotrend recording Sampling: 5 readings/sec continuous sampling per channel Memory: 1800 min, max and avg points for each reading Recording time: Up to 450 days Zoom: Up to 12x horizontal zoom Memory Screens & data: 50, shared memory divided between logging, screens and data sets Notes ? Depending on clamp scaling ?? Value is measured over 1 cycle, commencing at a fundamental zero crossing, and refreshed each half-cycle Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Put your auctions on autopilot with Kyozou eBay Auction Management Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	Fluke
Model	435
