Fluke/giga-tronix 6060a/6061a/6062a A9 Signal Generator Power Supply Assembly

US $170

Indianapolis, Indiana, United States
Jun 9th

Open on mobile:
QR code

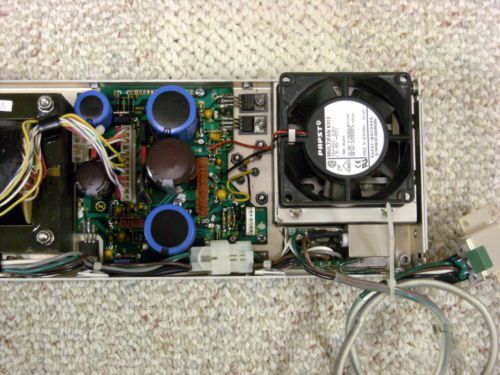

Fluke/Giga-tronix 6060A/6061A/6062A RF Signal Generator Power Supply Assembly This power supply assembly comes from a Gigatronix 6062A Signal Generator that was purchased as not working. The 6062A was powered up and had signals out (up to 8 Vpp) & was controllable at all frequencies, but was unlocked about 20% of the time. The front panel, controller and power supply were verified as working with no issues. Two (2) A8 attenuator assemblies were removed to fix a Fluke 6082A with attenuator issues and were not in the 6062A when tested. A9 Power Supply PCA Removed from a Giga-tronix 6062A but should work in any of the 6060 Series Generators Tested under load with following readings: +15 Vdc read 15.12 Vdc with < 1 mv ripple - 15 Vdc read -15.01 Vdc with < 1 mv ripple + 5 Vdc read 5.17 Vdc with < 1 mv ripple +37 Vdc read 37.04 Vdc with < 1 mv ripple +18 Vdc read 18-22 Vdc with < 3 mv ripple (this is unregulated and varies with line voltage All voltage readings taken while powering all assemblies less the attenuator (A8A1/A8A2) Notes: 1) The front panel on/off switch and associated cable to the power supply is included with the power supply since the wiring was soldered to the power supply. 2) Fan is quiet and turns freely 3) Only what is shown in the photos will be supplied - no mounting hardware, or A3 (IEEE-488 Interface) and the two 10 MHz in/out coaxes are not included (only the BNC covers are included). This power supply assembly has a 14 day right of return with full refund less shipping cost. Shipping will be via UPS with delivery confirmation. I only accept PayPal for payment. PayPal payment is requested within 24 hours of close of auction Please contact me via eBay Message if any question arises before you leave feedback or open a case. I will do my best to solve it!

“Tested & Working with 14 day RoR”
