Fluke Networks Of-500 Optifiber Oftm-5612b Oftm-5732 Sm Mm Fiber Otdr Of-500-ms

US $6,995.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

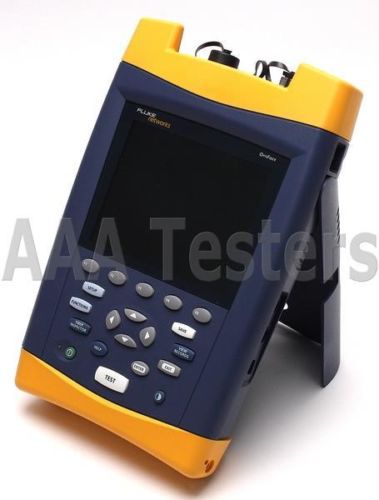

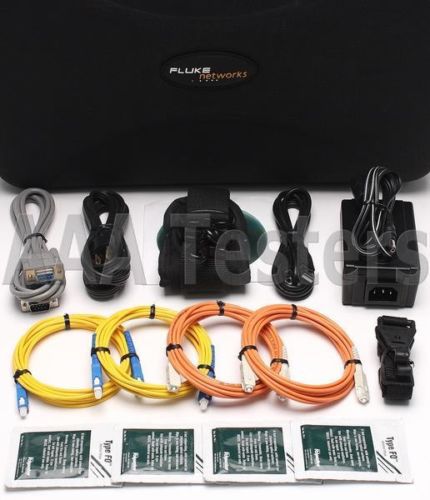

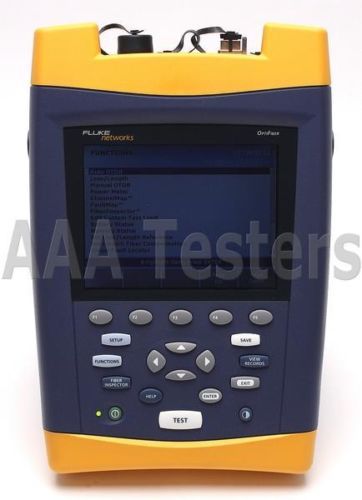

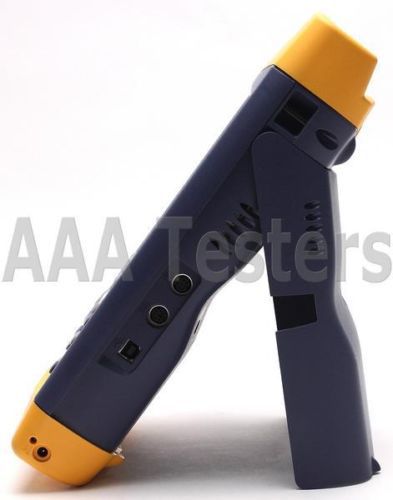

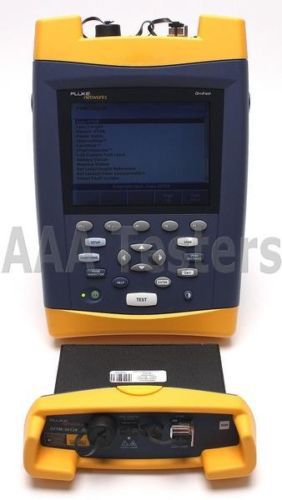

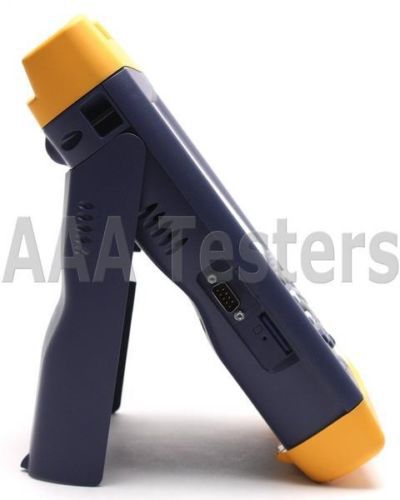

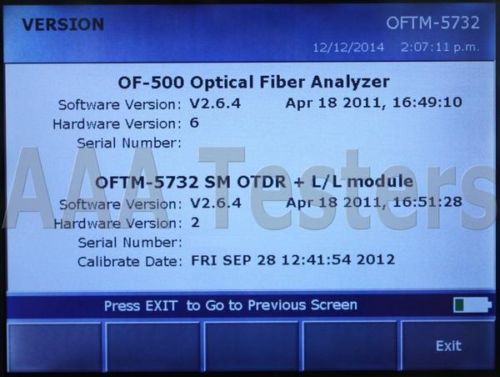

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: Fluke Networks OF-500 OptiFiber OTDR Mainframe (BC# 19238) Fluke Networks OFTM-5732 SingleMode OTDR Module (BC# 19228) SM OTDR Source: 1310nm 1550nm Power Meter: 850nm 1300nm 1310nm 1550nm VFL SC Connector For Source SC Connector For Power Meter Fluke Networks OFTM-5612B MultiMode OTDR Module (BC# 19229) MM OTDR Source: 850nm 1300nm Power Meter: 850nm 1300nm 1310nm 1550nm SC Connector For Source SC Connector For Power Meter (2) MM SC-SC Fiber Cables (2) SM SC-SC Fiber Cables (4) Fiber Optic Wipes AC Adapter/Charger Power Cord RS232 PC Interface Cable User Manual On CD-ROM Strap For Unit Carrying Case w/ Strap BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Fluke Networks OF-500 OptiFiber MainFrame With OFTM-5732 Singlemode 1310 / 1550nm OTDR Module With Power Meter & VFL And OFTM-5612B Multimode 850 / 1300nm OTDR Module w/ Power Meter The OTDR Module has the (LL) Loss/ Length Certification Option! PASS / FAIL Optical Loss Analysis! Dynamic Range: 1310 / 1550 nm : 26 / 24 dB 850 / 1300 nm : 15 / 14 dB Power Meter: - 850nm - 1300nm - 1310nm - 1550nm Includes Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty Features Tier 2 Fiber Certification Powerful Diagnostics Auto OTDR Analysis Loss Length Certification Fiber End-face Inspection ChannelMap View Power Meter Results Management Easy-to-use Interface OTDR Port Check Multiple Languages Modularity and Portability With OptiFiber, network engineers have in-house capability to: Perform inspection, verification, certification, troubleshooting, and documentation of fiber cabling in a single, easy tool Save time and money when diagnosing fiber cabling problems that are causing network performance issues Easily locate and eliminate fiber problems Check the work of subcontractors ChannelMap™ Troubleshooting starts here. See a diagram of the channel, including patch cords. Check that the links are patched all the way across the campus, and determine the number and location of all connectors in a channel. OTDR View the trace of the fiber link. Compare one fiber to another by using Trace Overlay. Zoom in for a closer look at events. Move quickly to areas of interest. Identify suspect optical events such as high-loss connections. Event Table OptiFiber’s event table analysis automatically characterizes and compares loss and reflectance against user defined limits. Results are displayed in an easy-to-read table which makes it simple for you to present to your customers. Loss/Length Certification PASS/FAIL Optical loss analysis makes it easy to certify that the fiber meets applicable industry standard requirements – and presents the data in a clear, easy-to-interpret format. FiberInspector™ Pro The fiber inspection video probe provides a high-resolution 250X/400X end-face image of a fiber connector. Grade the image. Save the image – and show it to your customer. OTDR Port Quality Check OptiFiber incorporates an automated port quality check that warns the user when the OTDR port is dirty or contaminated. Description As bandwidth increases to more than 10 Gb/s, the use of fiber optics in premise networks continues to grow- and so do the requirements for testing and certifying it. To ensure the performance of mission-critical fiber infrastructure, network owners need a more complete picture of their fiber plant. And no solution provides a more complete picture than OptiFiber. OptiFiber integrates power/loss, fiber length measurement, OTDR analysis and fiber connector end-face imaging to provide a higher tier of fiber certification and diagnostics. The companion LinkWare PC software documents, reports and manages all test data. OptiFiber enables network owners of all experience levels to certify fiber to customer specifications and new industry standards, troubleshoot connection-rich links, and thoroughly document results. It will improve the health of your fiber network. Your fiber cabling will be ready and capable to perform for high-bandwidth applications. Tier 2 Fiber Certification Applications such as 10 Gb/s Ethernet require lower losses and higher quality installations. OptiFiber advances the testing of premise fiber optic cabling, providing all the individual tests and documentation required to ensure the cable plant was correctly installed in accordance with best professional practices and new standards. The TIA TSB-140 includes two tiers of testing that can be chosen by a designer to be specified in a project. Tier 1 accommodates loss and length testing with an optical loss test set (OLTS). Tier 2 testing includes the parameters of Tier 1 and also an OTDR trace of the installed cable plant. By incorporating the proposed two-tier testing method, installers have the most complete picture of the fiber installation and network owners have proof of a quality installation. Recent IEC standards also include the recommendation of a second level of testing. OptiFiber delivers on Tier 2 certification by integrating bi-directional two-fiber dual-wavelength insertion loss and automated OTDR pass/fail link analysis a one-two combination you will find only with OptiFiber. But OptiFiber doesn't stop there. It also offers fiber endface grading. Only with OptiFiber can you certify every link with one tool by: measuring loss and length analyzing the OTDR trace grading the connector end-face Then use the companion LinkWare cable test management software to present this test data in a single certification report that can be archived or submitted as proof of a properly installed and terminated installation. Powerful Diagnostics OptiFiber integrates the features that matter most when troubleshooting enterprise networks. These networks are characterized by relatively short lengths of fiber within data centers or between buildings. Fibers are terminated with connectors and segments connected with short patch cables. No other OTDR let's you see both ends of short patch cables, allowing you to see the condition of your connectors so you can quickly and efficiently diagnose and fix the problem. OptiFiber leads the industry with: event characterization analysis advanced multimode modules with event deadzone of .5 meter at 850nm advanced singlemode modules with event deadzones of 1 meter at 1310/1550 nm a unique map of the channel that illustrates the location of all connectors automated OTDR trace and event test limits 250x and 400x high magnification video end-face inspection Document the condition of your network with LinkWare Cable Test Management software. Auto OTDR Analysis OptiFiber simplifies OTDR analysis by automating certification and troubleshooting. In Auto OTDR mode OptiFiber automatically: optimizes launch conditions for the best resolution makes dual wavelength OTDR measurements - 850/1300 nm or 1310/1550 nm identifies and characterizes the fiber link and its events compares the results to user-defined limits for immediate pass/fail link and event certification saves time spent setting and moving cursors For advanced troubleshooting you can view a trace at two wavelengths. Automatically step from one event to the next and zoom in on those of interest. Measure event loss. Events are also summarized in a table. Save the information for LinkWare reporting. You may also choose to operate OptiFiber in manual mode so you can set the test parameters yourself. Loss/Length Certification -- from 10 Meg to 10 Gig Automated optical loss measurement that provides immediate pass/fail link status based on industry standards. Most industry standards and customer work statements require loss measurements to certify a fiber link. With OptiFiber's optional loss/length certification module, you can have the same powerful loss certification capability as found in our fiber test adapters. Only OptiFiber offers a single module that integrates both insertion loss and OTDR certification, minimizing the number of tools you need to carry with you into the field. Loss/length certification provides the fastest certification solution possible. This certification solution uses a main unit and a smart remote so that in one automated operation the OptiFiber: tests two fibers, a transmit and receive pair, at two wavelengths measures fiber length using the time of flight technique measures insertion loss of both fibers at both wavelengths enables bi-directional testing without having to swap main and remote units calculates the loss budget and compares the results to a user-defined test limit immediately displays the pass/fail link status This proven test methodology yields the most links tested in the least amount of time. You can drill down into the data to view details useful in link analysis and troubleshooting. OptiFiber also incorporates the timesaving FindFiber feature enabling users at both ends to quickly check and correct link continuity. Utilizing LinkWare Cable Test Management software you can easily save all fiber link data electronically for results management and report generation. Fiber End-face Inspection More than 85% of all fiber failures encountered are due to contaminated fiber end-faces. Such contamination is easily seen with OptiFiber's video inspection system. View end-faces under 250x or 400x magnification. You can inspect fibers installed in patch panels and devices without disassembly with OptiFiber's video probes. The probe is inserted through bulkhead adapters letting you test 10 times faster than traditional scopes. And it's safer on your eyes, too. With FiberInspector you can see the condition of the fiber end-face. You can assign a pass or fail grade to the fiber and append a comment. You can apply a scale to help determine the fiber type. And you can save the image for use in certification reports and other documents. ChannelMap View Troubleshooting starts here with a simple link diagram that technicians can easily read and interpret. OptiFiber's ChannelMap presents the OTDR data in a simple diagram, or map, showing the number and location of connectors. No interpretation necessary. OptiFiber is the only OTDR solution available with this unique technician-friendly feature. With ChannelMap you can: quickly verify the composition of the link identify patch cables as short as 1 meter in length Document the link ChannelMap with LinkWare Cable Test Management software. Power Meter You may need a direct measurement of optical power to aid in source and link performance verification. With OptiFiber's optional power meter module, you have 850nm, 1300nm, 1310nm and 1550nm optical power measurement capability. A single module integrates both power meter and OTDR capabilities, minimizing the number of tools you need to carry with you into the field. All loss/length modules are also capable of making power measurements. With OptiFiber: verify source and link performance measure optical power at 850, 1300/1310 and 1550 nm display power in dBm or µW show min/max power over the duration of the test save the results and append comments Power measurements require a remote light source. Optical sources are available from Fluke Networks as accessories or use your existing calibrated sources. Results Management Fluke Networks' powerful LinkWare Softwarel included with every OptiFiber helps you quickly organize, edit, view, print, save, or archive test results by jobsite, customer, campus building, and more. You can merge test results into an existing database and then sort, search and organize by any number of data fields or parameters. LinkWare is also available free from our web site. Once your work is done, you can give this powerful application to your customer so they can have instant access to the data electronically or you can export the data as an Adobe Portable Document Format (PDF). Extensive data management capabilities with LinkWare: direct data import directly from OptiFiber, a computer file or an MMC device summary or detailed views that can include OTDR test information and plots at two wavelengths from both ends two OTDR trace view modes: compare to reference fiber, and multiple fiber traces (up to 12 simultaneously) merge OTDR and loss/length test results into a single record export results to Bellcore GR-196-CORE format ChannelMap diagram fiber end-face images from both ends of the link bi-directional loss/length certification results power meter measurements OptiFiber OTDR emulation to study and analyze traces in the office summary or detailed printed graphical reports in color, gray scale or in Adobe Portable Document (PDF) format drag and drop multiple project management compatibility with the TIA 606-A labeling hierarchy share file with remote users No other fiber test solution documents the fiber infrastructure so completely and easily. Easy-to-Use Interface OptiFiber makes it easy to test fiber - with an intuitive user interface and a lightweight handheld footprint that mimics our user-friendly copper-based certification solutions. Now troubleshooting fiber and testing to the latest industry standards is as quick and easy as pushing a button. Storing and transfering fiber test results is simple and effortless with OptiFiber's data mobility features. OptiFiber boasts an MMC (MultiMedia Card) drive and internal non-volatile memory for records storage. A 32MB card is included with every OptiFiber and 128MB MMC are available. This portable storage medium allows your OptiFiber to remain in the field while the data is sent to the office. And, it is easy to transfer data from OptiFiber to your PC. Use the RS-232 serial port or the high-speed USB interface. Or read data from your MMC with serial and USB MMC readers. Every OptiFiber includes: bright, color display for enhanced readability sturdy integrated stand for table top operation hanging strap when working off of racks long-life battery with integrated charger and fuel gauge keyboard port to speed data entry A variety of accessories are available to enhance the power of your OptiFiber. Check out our selection of launch cables, carrying cases, camera probe options, light sources and other accessories. OTDR Port Quality Check OptiFiber is the only OTDR to incorporate an automated port quality check that warns the user when the OTDR port is dirty or contaminated. This is an important feature that can save users time while delivering a higher level of confidence in the OTDR test results. Over 70% of fiber test results that are inaccurate are due to dirty port connections, which means you may be spending hours trying to find the problem when the problem is in the port, not the fiber link. OTDR port quality test automatically displays and evaluates the quality of the optical connection at the OTDR port with a Poor, Fair or Good rating. If the connection quality is poor or fair, a warning message appears so you can fix it before you do your OTDR testing. Multiple Languages OptiFiber speaks your language. The OptiFiber Certifying OTDR supports multiple languages for an even friendlier user experience. The complete user interface and the extensive on-line help system are displayed in the language you select. The entire User Manual is available in many languages. Additionally the external keyboard reference diagram and the instruction sheets for the video probe, test modules, launch cables anf battery pack are available in multiple languages. Available languages: English, French, German, Italian, Portuguese, Spanish, Chinese (simplified), and Japanese. Modularity & Portability OptiFiber is smaller and lighter than any other mini-OTDR available today, making it perfect for working in tight spaces and crowded distribution closets. Including a module and battery, OptiFiber weighs only 4.5 lb (1.9 kg) making it easy to work with in the field. This handheld solution is compact at 10.6 x 7.5 x 2.5 inches (26.9 x 19.1 x 6.4 cm) for outstanding maneuverability in tight spaces. It is built to withstand the harshest conditions of everyday field use with a vibration and shock resistant case and rugged tactile keypad. Specifications General OptiFiber Specifications Weight Main with module and battery: 4.5 lb (1.9 kg) Dimensions Main with module and battery: 11.4 x 7.5 x 2.5 in (29.0 x 19/1 x 6.4 cm) Battery Li Ion Battery Life 8 hr typical Connections USB, RS-232, PS-2 keyboard, Fiber Inspector Camera Memory Card SD MMC (128 MB maximum) Operating Temperature O °C to 40 °C (35 °C in continuous Real Time Trace Key OTDR Specifications (23?C) Singlemode: OFTM-5732 Output/Input Connector SC UPC (Laser-hardened) Wavelengths 1310 ± 20nm and 1550 ± 20nm Fiber Under Test 9/125µm singlemode Evend Deadzones 1310/1550nm: 2.5m typical, 3m max Attenuation Deadzone 1310/1550nm: 10.5m typical, 15m max Max. Distance Range 1310nm: 20km 1550nm: 20km Dynamic Range 1310nm: 26 dB 1550nm: 24 dB Key Power Meter/Loss Length Specifications OFTM-5732 Input/ Output Connectors SC/PC Nominal Output Wavelengths FTM-5732: Laser source: 1310 nm and 1550 nm Maximum length measurement OFTM-5732: 10,000 m of 9 um singlemode fiber Power Measurment Detector Type InGaAs Calibrated Wavelengths for Power Measurment 850 nm, 1310 nm, 1550 nm Power Measurement Range 0 to -60 dBm (1300/1310 nm and 1550 nm) o to -52 dBm (850 nm) Key OTDR Specifications (23?C) for OFTM-5612B Output/Input Connector SC/UPC/Removeable/Cleanable Wavelengths 850 ± 20nm and 1300 ± 20nm Fiber Under Test 50/125µm or 62.5/125µm multimode Event Deadzones 850nm: 0.5m typical 1300nm: 1.3m typical Attenuation Deadzone 850nm: 4.5m typical 1300nm: 10.5m typical Pulse Width 850 nm: 4 ns, 20 ns 1300 nm: 8 ns, 40 ns, 100 ns, 200 ns, 400 ns, 650 ns Max Distance Range 850nm: 3 km 1300nm: 7 km Dynamic Range 850 nm: >15 dB 1300 nm: >14 dB Testing Speed for MultiMode Modules <10s for two wavelengths at 2 km with 25 cm resolution <30s for two wavelengths at 400 m with 3 cm resolution Output Power 850nm >110mW-pk 1300 >22mW-pk Distance Accuracy +- 1m +- 0.005% of distance+-50% of resolution +-IOR error +-event location Loss Threshold .2dB Linearity +- .07dB/dB Sample Spacing 3cm to 50cm Reflectance Accuracy +- 4dB ORL Accuracy +- 4dB Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Put your listings on autopilot with Kyozou eBay Listing Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	Fluke Networks
Model	OF-500
