Fresh Air Filtration System

US $495.00

Minneapolis, Minnesota, United States
Jan 30th

Open on mobile:
QR code

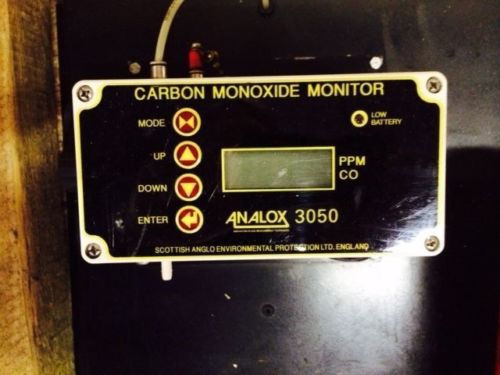

1. Carbon monoxide monitor and alarm. Four-digit liquid crystal display indicates the carbon monoxide concentration. Should the level of CO exceed alarm set points, a warning LED light will turn on, as well as a 90 decibel audible alarm. The monitor also features an alarm test switch and external calibration and test gas inlet. 2. Compressed air inlet: one 3/4" NPT (female). 3. Stage 1 Filter: Water Separator with centrifugal action and impingement separation to remove large quantities of excessive liquid contamination. 4. Pressure differential indicator to indicate when filter element change is required. 5. Stage 2 Filter: General Purpose Protection Filter removes particulates down to 1.0 micron, including water and oil aerosols. Maximum remaining oil aerosol content is 0.5 ppm at 70°F. Recommended filter life of 6,000 hours. 6. Stage 3 Filter: High Efficiency Coalescing Filter removes particles down to 0.01 micron, including water and oil aerosols. Maximum remaining oil aerosol content is 0.01 ppm at 70°F. Recommended filter life of 6,000 hours. 7. Stage 4 Filter: Activated carbon filter removes oil vapor and hydrocarbon odors. Maximum remaining oil content of less than 0.003 ppm at 70°F. Recommended filter life of 1,000 hours. 8. De-pressurization valve to vent the compressed air in the filter housing prior to filter element change. 9. Liquid level indicator for confirmation that automatic condensate drain is operational. 10. Breathable air outlets: four Parker Hannifin quick disconnects supply air for up to 4 welders. Air Purification & Regulation Panels SA PRP 200-B Panel Specifications Outlet Air Quality: Dirt Particles less than 0.01 micron. Oil Mix/Mist/Aerosol less than 0.01 ppm. Vapor/Odor removal down to 0.003 ppm. Inlet Connection: One 3/4" NPT (female). Outlet Connections: Four Parker Hannifin Model B32-E Quick Disconnects. Maximum Flow Rate: 110 scfm. Maximum Inlet Pressure: 150 psig. Pressure Relief Valve Setting: 125 psig. Adjustable Outlet Pressure: to 100 psig. Recommended Max. Working Temp.: 86°F(30°C). Recommended Min. Working Temp.: 35°F (2°C). Audible Alarm: Continuous at 90 dba; factory-set at 10 ppm CO. Visual Alarm: CO alarm indicator LED. Filter maintenance indicator. CO Monitor: Display: 4 digit LCD. Sensor: Electronic chemical cell type. Power: 110 Volt AC power supply. Dimensions: Length 36.6" (930 mm); Width 24.2" (615 mm); Depth 7.3" (185 mm). Weight: 55 lbs (25 kg). Compliance Standards: USA 29 CFR 1910.134 CSA Z1801.1-00 ISO 8573.1: Class 1.-.1 OSHA specification 29 CFR 1910.134(i)(1)(ii) states: "Breathing air shall meet at least the requirements of the specification for Grade D air as described in ANSI/Compressed Air Association Commodity Specification G-7.1-1989." OSHA specification 29 CFR 1910.134(i)(7) states: "For oil-lubricated compressors, the employer shall use a high temperature or carbon monoxide alarm, or both, to monitor carbon monoxide levels. If only high-temperature alarms are used, the air supply shall be monitored at intervals sufficient to prevent carbon THIS IS CAN ONLY BE SHIPPED BY TRUCK.COMES IN A SHIPPING CRATE

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	SPEEDGLAS
Country/Region of Manufacture	United States
