Fsi D-9000-mil-2 Pt-4000 Pt-100 D700a D-28 Rivet Gun Riveter Fastener

US $1,200.00

Sumner, Washington, United States
Jun 9th

Open on mobile:
QR code

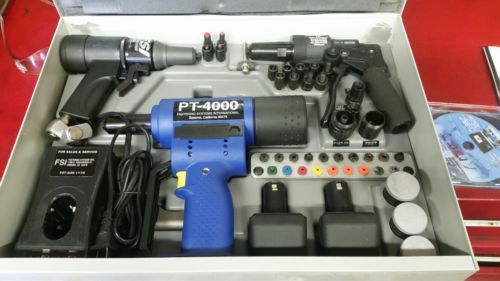

Up for sale is the D-900_MIL-2,NSN:5180-01-470-6539. The D-9000-MIL-2 is ideal for field maintenance modification and BDR applications. It provides hand mechanical, hand hydraulic, air hydraulic and cordless blind riveters all in one convenient case. It can be used for air mobility, Line maintenance and Battle Damage Repair Kits. The D-9000-MIL-2 installs all CherryMax thru 1/4" and most Blind Bolts thru 3/16". The D-9000-MIL-2 kit contains the pull-up studs and driving anvils used in conjunction with the hand hydraulic D-700C combination riveter-nutsetter, which permit installation of blind nuts (NAS1329/30, / MS27130/31) in sizes 6-32 thru 3/8-16. The riveter provides over 4000 lbs of pulling force and because of its unique two-stage valve system, wrist effort is reduced as the loads increase. For this reason, the D-700C riveter is equipped with a pressure regulating feature called Vari-Max which allows the user to set the pulling pressure desired for the particular lot of blind nuts being installed, thereby minimizing the chance of thread failure from excessive pulling force or improper installation due to inadequate upset loads. This is a new kit that I purchased in an auction from Government Liquidators. Following is some other information that I found about this kit. D-9000-MIL-2 D-9000-MIL-2 Brochure D-9000-MIL- Operations Manual. Currently this kit D-9000-Mil-2,NSN 5180-01-470-6539, sell for over $6,500.00 Following is a list of contents of this kit. 1 ea Hand Hydraulic Riveter P/N D-700A, 1 ea Air Hydraulic Riveter P/N PT-100M, 1ea Cordless Riveter P/N PT-4000, 1 ea Hand Mechanical riveter P/N D-28, 1 ea Battery Charger P/N F-4000-A, 2 ea Battery Pack NI-MH (12v, 3.2 Ah) P/N F-3001A, 1 ea 3/32" &1/8" Nutplate Nosepiece P/N F156, 1ea 1/8" Nosepiece P/N F159, 4 ea 5/32" & 3/16" Nosepiece P/N F143, 1 ea 1/4" Nosepiece P/N F142, 1ea 3/16" Monobolt Nosepiece P/N F168, 1ea 1/4" Monobolt Nosepiece P/N F169, 1ea 3/16" MS Nosepiece P/N F580, 1ea 3/16" Bulb-tite Nosepiece P/N F396, 1ea 1/4" Bulb-tite Nosepiece P/N F398, 1ea 1/4" Automotive "T" Rivet Nosepiece P/N F155, 1ea 3/32" NAS1400A Nosepiece P/N F390, 1ea 1/8" NAS1400A Nosepiece P/N F391, 1ea 5/32" NAS 1400A P/N F392, 1ea 3/16" NAS1400A Nosepiece P/N F3983, 1ea 1/8" NAS1900S Nosepiece P/N F501, 1ea 5/32" NAS1900S Nosepiece P/N F502, 1ea 3/16" NAS1900S Nosepiece P/N F503, 1ea 5/32" MS90353/54-S/U Nosepiece P/N F505U, 1ea 3/16" MS90353/54-SU Nosepiece P/N F506, 1ea Extended Straight CherryMax Head P/N F1074, 1ea 90 degree CherryMax Pulling Head P/N F1075, 1ea Offset CherryMax Pulling Head P/N F1076. Here is something else listed but not numbered. UNC Pull-up Studs & Anvils (10-24 to 3/8-16), UNF Pull-up Studs & anvils (6-32 to 5/16-24), Metric pull-up Studs & anvils (5mm to 10mm) I have no further information on this kit and am not familiar with any of its contents. I also have an instruction manual and a CD included in this kit. This kit is in a very heavy case

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Make	fsi
Country/Region of Manufacture	United States
Model	d-9000-mil-2
