Ftth Tool Kit Test Fiber Optical Power Meter+fiber Cleaver Fc-6s 10mw Visual

US $162.58

KOWLOON BAY, Hong Kong
Jan 29th

Open on mobile:
QR code

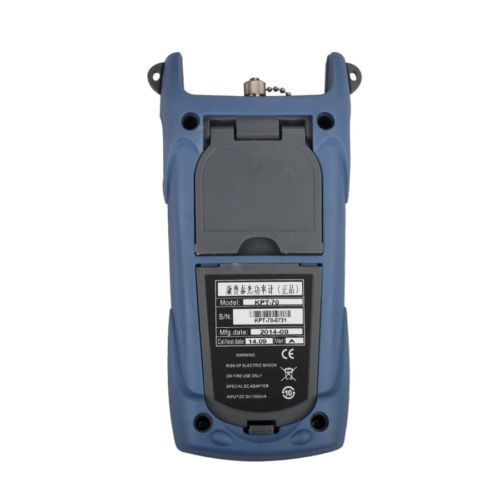

FTTH Tool Kit Test Fiber Optical Power Meter+Fiber Cleaver FC-6S 10MW Visual Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge FTTH Tool Kit Tool Fiber Optical Power Meter+10MW Visual Fault Locator+Fiber Cleaver FC-6S Please Note: a) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. b) Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying. A. Fiber Optical Power Meter: Fiber Optic Handle Optical Power Meter Specifications: Calibration Wavelength (nm): 800~1700 Detector type: InGaAs Measurement Range (dBm): -70,+10 Uncertainty: (dB: +0.2(5%) Linearity (dB): 0.01 Display resolution (dB): 0.03 Frequency ID Hz: 270 330 1K 2K Wave ID nm: 850/980/1300/1310/1550/1625 Date Storage Capacity: 1000 Communication Port: USB Connector: FC/SC/ST Interchangeable Alkaline battery: Alkaline Battery Power Adapter (V) : 8.4 Battery Operating time (h) : 240 without backlight Operation Temperature (oC): -10(oC) +60 Storage Temperature (oC): -25(oC)+70 Dimension (mm): 172*82*33 Weight (g): 310 B. 10KM Visual Fault Locator (10mw Fiber Optic Cable Tester Meter up 15km) Easy to check fiber faults with visual red laser light FC, SC, ST General interface Sturdy and durable shell Constant output power Long inspection distance Operates in either CW (Continuous wave) or pulse (Both modes are available) Pen pattern design, convenient for use and carry Dust-proof design keeps fiber connectors clean Compact in size, light in weight, red laser output, both SM and MM available. Introduction: 1.Central wavelength:650nm±10nm 2.Emitter type: LD 3.Output power: 10mW 4.Optical connector: 2.5mm universal connector 5.CW frequency: 2Hz 6.Power supply: 2 x AA Alkaline batteries(not include) 7.Operating temperature: -10~+60°C 8.Storage temperature: -20~+70°C 9.Dimension: 168mm*27mm C. FC-6S Precision Cleaver Optical Fiber Cleaver Sumitomo Electric Cut Cutting Tools The FC-6S fiber optic cleaver is used for single fiber cleaving. This FC-6S optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving. fiber optic cleaver FC-6S, high precision, preparation for single fiber(cleave length 6~20mm)/ribbon fiber cables (up to 12 counts, cleave length 10mm). Features: Compact body& light weight Applicable up to 12-fiber cleaving 36000 fibers blade life(3 height x 12 positions) Fiber scrap collection-free Packages: 1pc Optical Power Meter 1pc bag for Optical power Meter 1pc sc adapter 1pc fc adapter 1pc 10KM Visual Fault Locator (Aluminum alloy) 1pc bag for 10KM Visual Fault Locator 1pc Lanyard for 10KM Visual Fault Locator 2pc ceramic tubes (gift) 1pc Fiber Cleaver FC-6S (Metal) 1pc Hexagon minor knife 1pc Hexagon major knife 1pc Covered wire stripping device 1pc Miller clamp 1pc Combo fixed length control 1pc Guide bar 1pc Airlaid 1pc Swabs 1pc Cutting blade 1pcSmall parts storage box 1pc Alcohol bottles (empty) 5 pc AA battery (not included) 1pc Plastic toolbox Contact Me Thanks for your cooperation and contacting. If any problems either with the item or shipment, please feel free to contact us through “My Messages” or“Ask Seller Questions”. Our reply will be within 24 hours.If we can not reply you,maybe we are not in office,or we don't receive your letter,so pls send it again! Customer Service Available: Please wait for our response before you take action to open eBay case or PayPal dispute.Your satisfactory is our top concern. We sincere apologize for the inconvenience caused by time difference. Feedback Dear friend, thank you for your orders, please leave us a feedback on the eaby if you think the item is good after you received.And if there is any things (shipping package, quality) you think is not good enough just feel free to contact us, we will try our best to slove your problem. Any good suggestions will be welcome we are glad to improve our serves with your help. And you also can email us to share your experience to use those product. The item will be shipped out within 1 working days after payment was received. And it will be sent out by express. Normally the estimated delivery time is 3-7 working days by DHL and 7-12 working days by EMS. If you want any other Express shipping way, pls leave a message to us! If you don't receive the item after 15days, please feel free to contact us, we will do our best to solve the problem for you. 1. We prefer to accept paypal as our payment method. It is quick and safe. 2. Please make payment within 3 days after biding, or all non-pay bidders will result in a non-paymemt buyer alert from Ebay and unpaid transaction would be closed. 3. We will send item to your Confirmed Shipping Address in Paypal. If you want to post to other address, please inform us ASAP when making payment through Paypal. We will NOT be responsible for any delivery failure due to unclear, unconfirmed or incomplete addresses given. inkfrog terapeak i000000
