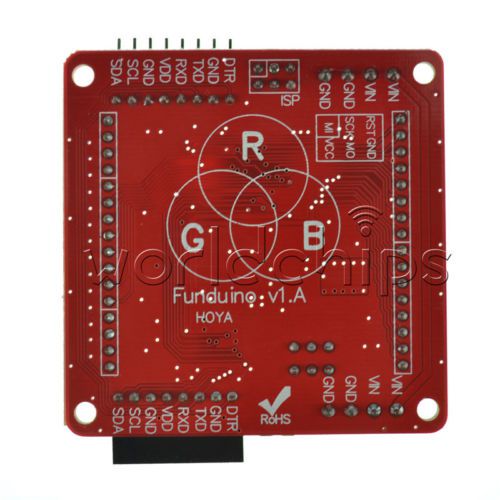

Full color Rainbow Matrix RGB LED Driver shield For Arduino Colorduino V2.0, US $13.98 – Picture 1

Full Color Rainbow Matrix Rgb Led Driver Shield For Arduino Colorduino V2.0

US $13.98

ShenZhen, China
Jan 29th

Open on mobile:
QR code

Description The driver circuit based on 3 MBI5168 constant current sink drivers and a M54564 darlington source driver, the Colorduino pairs the M54564 with a single DM163 constant current driver. In order to better drive the RGB matrix and reach their best performance, we use the professional LED driver chip DM163 on board, by using the DM163, the Colorduino gains three 8+6-bit channels of hardware PWM control of the LED’s freeing up the ATMega328P from having to implement it in software. And the DM163 comprises shift registers, data latches, 8×3 channel constant current and 64 x 256 gray level PWM for per color! Each channel provide a maximum current of 60 mA. So, each RGB dot has 256×256x256 = 16,777,216 colours (16 million) in theory, and it’s easy to use the 6bit correction register to calibrate the current error for each color LEDs This shield can be programed via FT232 USB adapter Power is supplied either by pin headers or via 2 sets of mini screw terminals, a slide switch selecting between the two. With the herder side, you just can use the 5V power supply, and in the terminal side, now support 6.2-7.5V power supply, more than 7V will cause the DM163 fever and more than 9V supply may burn your board. Pins brought out the edge of the board include RX, TX and DTS, which can be used to reprogram the onboard ATmega chip, and SCA and SCL for I2C communication. A green LED on the front of the board indicates power, although it is mostly obscured as soon as you plug the matrix panel in. If you have an Arduino UNO, but just want to drive a RGB LED Matrix, you can consider this Colors shield, it's compatible with Colorduino v2.0. To make it work, you must need this RGB LED Matrix, For more information of this product, please visit theWiki PAGE Documents: Colorduino library.zip Sch-Colorduino-V2.0.pdf DM163.pdf Package included: 1 x Full color Rainbow Matrix RGB LED Driver shield For Arduino Colorduino V2.0 Shipping Terms 1. WORLDWIDE Free SHIPPING. (Except China) 2. Orders processed within 24 hours of payment verification. 3. We only ship to confirmed eBay addresses. Your eBay address MUST MATCH your Shipping address. 4. The images shown are not the actual item and are for your reference only. 5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. 6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction! 7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery. No Tracking Number The shipping cost is very low,we are not responsible for any loss in the mail if the item not insured(no-registered mail). Registered Post Shipping cost: Would better to Add 3 USD to Upgrade---- Registered Post(Choose "Standard Int'l Shipping" for one item,and others choose free shipping.we can send all your items in one box with tracking number.) Express Courier Need URGENT? We offer a varienty of shipping methods (Expedited Int'l Shipping) to meet your needs.If you need it Urgent, please contact us to Upgrade the shipping to Express. Payment Terms 1.We accept payment via PAYPAL ONLY. 2. Payment must be made within 4 days of auction closing. (Non-payment may result in a UPI (Unpaid Item) being put on your account. eBay will automatically close your account if you accumulate 4 UPI's total.) 3. TOTAL AMOUNT DUE includes the final auction price plus S&H(Shipping and Handling). 4. S&H will be determined based upon the SHIP TO address. PLEASE NOTE: S&H DOES NOT INCLUDE DUTIES, LOCATL TAXES OR ANY OTHER IMPORTATION FEES. 5. Please list your special requests (color, packages, etc.) in the PAYPAL NOTES SECTION when you make payment. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. Links for related products Engineered for professional eBay sellers! On Aug-27-14 at 01:28:58 PDT, seller added the following information:
