Full Set 4 Axes Cnc Engraver Machine Router Cnc3020 +mhc2 Mpg Remote + Tailstock

US $1,485.79

default, default, Hong Kong
Jan 30th

Open on mobile:
QR code

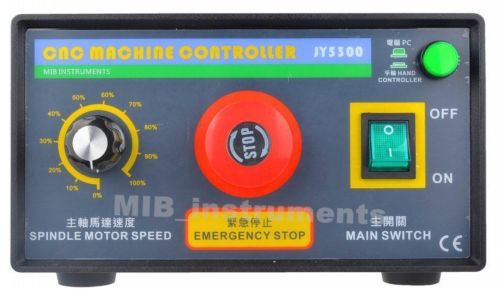

4 Axes CNC Engraver CNC3020 +controller+ MHC2 mpg handwheel pendant + tail stock Please email: cnc@mib-instruments.com for any question. Thanks. NOTE: For the countries that we do not ship to, please contact us about shipping fee. Please also check the shipping notice on the bottom of listing. Download Manual: ftp://kwansnet.dyndns.org/shares/public/User%20Manual/CNC%20manual/JY5300%20and%20MHC2%20File/Guideline/ CNC Frame and MOTOR Specification Effective Traveling Range 200(X) X 300(Y) X80(Z) mm Machine Dimension 382(X)*510(Y)*450(Z) mm Working Table 240(X)*450(Y)*20(Z) mm Frame Material Aluminum Alloy 6061/ 6063 15mm thickness Driving Core X: 1605 ball screws Y: 1605 ball screws Z: 1605 ball screws Sliding Core X: Dia. 16mm Y: Dia. 16mm Z: Dia. 12mm Limit Switch X, Y, Z (2 switch per axis) Stepping Motor 57 2 phase 3A 1.8 Degree (Brand New) Spindle Motor Brand New DC Motor - 300W Principal Axis Collet ER11 / 3.175mm Spindle Speed PWM up to 13000 RPM Repeatability 0.05mm Max No Loading speed (X, Y, Z) 2500mm / min Spindle Precision (Beat error) 0.01 - 0.04mm Carving Code G code/TAB files/nc file/NCC files PC connection Parallel Port OS Win2000 XP (Support Mach2 Mach3) Carving Speed Depend on material Weight 31KG JY5300-2 controller box and MHC2 handwheel pendant Specification: Item Description Parameter Remark Socket Number of Slot Stepper Driver Board 5 *Standard package with 4 Stepper Driver Board DC Spindle Motor Driver Board 1 Water Cooling system 1 *support 12V water pump Limit Switch X Y Z 1 External Controller 1 *support handwheel PC Parallel Port 1 USB to Serial Modbus 1 *must connected for opto- isolation power 19200 baudrate Mach3 modbus Auto check terminal 2 Relay Output (3A 110 to 220V) 2 Stepper Motor Driver Board Operating Voltage 24DCV Maximum Current 3DCA Micro-Stepping divider 1:8 Hand Wheel Control Maximum Acceleration 200mm/s2 320 Steps per mm Maximum Deceleration 200mm/s2 Maximum Speed 3500mm/min MACH3 Computer Control Maximum Acceleration 300 mm/s2 Maximum Deceleration 300 mm/s2 Maximum Speed 3500mm/min Stepper Motion Memory Number of Memory Region 4 One Region Max Record Time 30minutes Maximum Memory Speed 3500mm/min DC Spindle Motor Driver Board MACH3 PWM / Manual PWM control Rotary switch selection Operating Voltage 48DCV Maximum Current 7DCA Auto-shutdown protection PWM Speed Control 0 to 100% 1KHz Constant Speed Tolerance 5 to 15% Tested in 300W 12000RPM DC Motor Maximum Acceleration ~3000RPM/s Maximum Deceleration ~3000RPM/s Input Electricity 110/220VAC 50/60Hz Hand Wheel LCD Display Dot Matrix 128X64 with backlight 16 button Inch or mm mode Support Mach3 Modbus communication Cable Length 3m Hand Wheel Encoder 100 PPR Number of Axis 4 Axis Size Controller Box (LXWXH)mm 330X220X120 Weight net weight (kg) 4.3 Package Include: Item Description Qty Tool Kit Pack 0.2mm V cut graver 1 0.3mm V cut graver 1 1mm drill 1 2mm flat milling graver 1 3.175mm flat milling graver 1 Mounting Clips 2 Spindle Motor opening tools 2 Carbon brush (Spindle Motor) 1 CNC Router Router Frame (Sliver) with Motors 4 axes with tail stock 1 Hand Wheel MCH2 Hand Wheel Controller 1 Control Box JY5300-2CNC controller box 1 Power Cord According to your country 1 USB Cable 1 Parallel Cable 1 Payment Shipping We accept Paypal, credit card through Paypal. Buyer may need to pay for import tax depend on your country's custom. You can ask us for more detail. We ship to most countries by DHL post. Since the parcel weight 35Kg, some countries do not allow parcel over 20Kg, so have to send by 2 parcels, we will send the aluminium flame and then the controller box. These counties include Russia, Brazil, CZ, Eastern Europe and Latin America. Items are shipped within 5 business day after receive payment. or we will send email to confirm shipment arrangement. An additional USD10 for insurance Most item will arrive within 8-14 business days. It depend on your location. In some case, ship to some countries will take over 3 weeks, especially brazil, Italy and France . eBay Cross Border Trade powered by Channel Effect On Aug-12-14 at 02:37:40 PDT, seller added the following information: Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	MIB INSTRUMENTS
Country/Region of Manufacture	Hong Kong
Model	CNC3020 FULLSET
Country of Manufacture	China
