Gaas Mmic Switch Spdt Dc-3ghz Mgs70008 Sma

US $1400

  • Del Mar, California, United States
  • Jun 9th

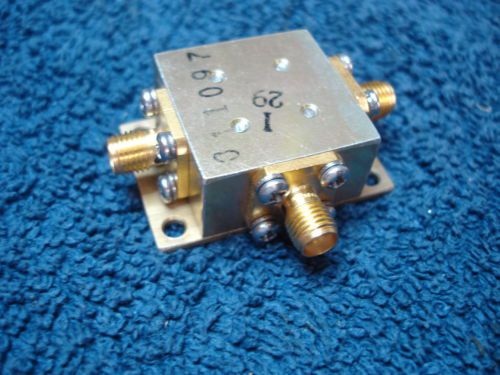

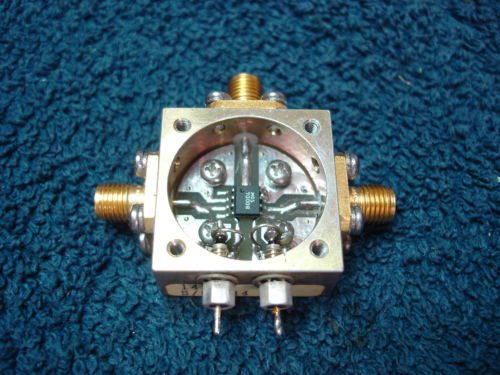

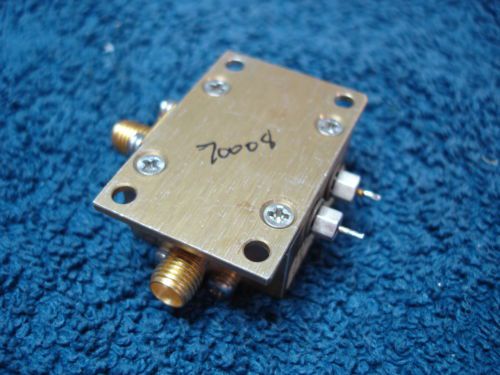

Nice Packaged HP MGS70008 GaAs MMIC switch w/ SMA connectors. Single-Pole, Double-Throw Output. The unselected port is reflective. There are 2 control lines; one is set to -5V and the other to 0V and vice versa to select the other port. Broad Bandwidth:           DC to 3GHz Low Insertion Loss:        0.8 dB typ at 1GHz Fast Switching Time:      3ns typical Isolation:                           33dB typ at 1GHz Control:                             0/-5V P1dB:                                  26dBm typ at 1GHz           A detailed spec sheet can be found here: http://www.hp.woodshot.com/hprfhelp/4_downld/products/rfics/mgs70008.pdf
