Galil Stepper Servo Driver, Sdm-20640 + Amp-20440 Eight Axis System Cnc Robot

US $495.00

  • Manchester, New Hampshire, United States
  • Jan 29th
Open on mobile:
QR code

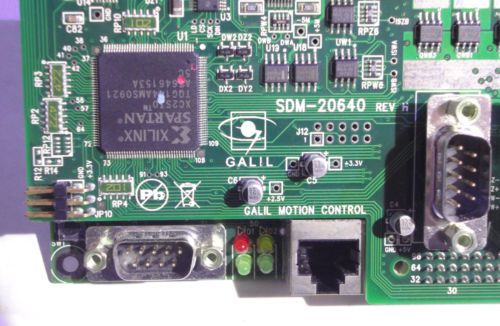

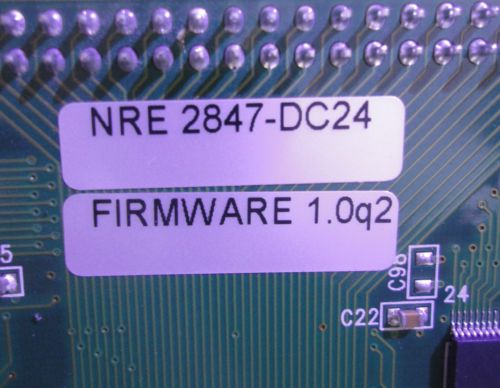

GALIL MOTION CONTROL FOUR AXIS, MICRO STEPPING STEP MOTOR DRIVER, FOUR AXIS SERVO MOTOR DRIVER and CONTROLLER. Consisting of: NRE-2847 + SDM-20640 + SDM-20440 THIS IS A HIGH QUALITY SYSTEM. Current price: $2985.00 ! Features and Benefits The SDM-20640 microstepper module drives four bipolar two-phase stepper motors with up to 1/64 microstep resolution. The current is selectable with options of 0.5,1.0, 2.0, & 3.0 Amps per axis. Like the DB-28040, the SDM-20640 provides for the addition of 8 analog input to the DMC-2183. The analog inputs accept +/- 10 V input. DC Supply Voltage: 12-60 VDC Max Drive Current (per axis) 3.0 Amps (selectable with AG command) Max Step Frequency 3 MHz Motor Type Bipolar  2phase The AMP-20440 Servo motor driver contains four 200W PWM drives for use with brush-type servo motors. The driver provides over current and over voltage protection. DC Supply Voltage: 20-60 VDC Max Current: 3.3 Amps (continuous and peak) PWM Frequency: 60 kHz The NRE-2847-DC24 motion controller connects with the above daughter board modules mounted directly on the motion controller. This eliminates the need for a separate cable between the motion controller and the amplifier or breakout module. This controller has the optional DC-to-DC converter so that a single DC power supply can be used to power the controller. Very good condition. Final sale. Check our other auctions for more interesting and esoteric items. We have been in business for 18 years. Our expert staff is available to answer any questions you may have. If you like our product offerings, please add us to your favorites list! RESOURCES UN-LTD. ELECTRONICS, OPTICS, MOTION CONTROL Check out my other items!
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand GALIL MOTION CONTROL
MPN NRE-2847 + SDM-20640 + AMP-20440
Model NRE-2847 + SDM-20640 + AMP-20440
Country/Region of Manufacture United States
