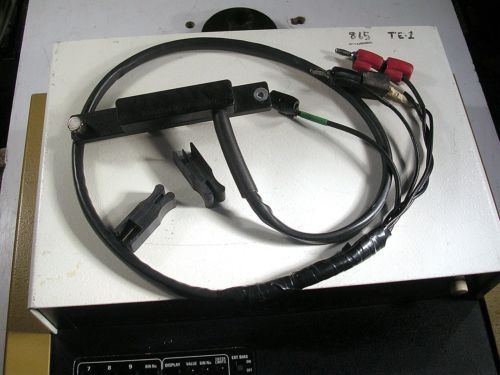

General Radio 1658 Rlc Digibridge With Adaptor And Cables

US $525.00

Manchester, New Hampshire, United States
Jan 29th

Open on mobile:
QR code

YOU WILL RECEIVE A GENERAL RADIO 1658 RLC DIGIBRIDGE SOME DETAILS: The GenRad 1658 Automatic RLC Digibridge gives you a level of flexibility and ease of use that make it ideal at incoming inspection, where you need to test a wide range of components quickly. Instrument features include a simple but sophisticated programming keyboard for setting component test limits, enabling the operator to perform high throughput testing, sorting, and evaluation; a choice of continuous, average, or triggered measurement modes to meet all measurement applications; and simple GO/NO GO indicators, plus an easy readout of value or bin number results at the touch of a button. Features: 0.1% accuracy for R, L, and C Automatic limit comparison and binning Two test frequencies (1 kHz and 120 Hz) IEEE bus/handler option External DC bias capability Full-digit, dual displays Built-in Kelvin test fixture Specifications Measurement Parameters and Modes:Series or parallel R and Q, series or parallel L and Q, series or parallel C and D. Continuous-repetitive, single, or averaged (set of 10) measurements; start button initiates single or averaged measurements. Keyboard selection of these and all measurement conditions. Main Displays (3 selections):Value display is LED-type numerical readout with automatically positioned decimal points and illumination of units; five digits for RLC (99999) and simultaneously four digits for DQ (9999). Limits display shows comparator bin limits and nominal values. Bin No. display shows the bin assignment of the measured device. Measurement Rates:Approximately 2, 3, and 7 measurements/second. Keyboard selections are: "slow, medium, fast." Test Frequencies:Keyboard selection between 2. Actual frequencies: 120.00 Hz and 1020.0 Hz. Ranges:Automatic ranging for best accuracy; autorange can be inhibited by keyboard selection. Three basic ranges of 2 decades each, for each parameter. Automatic extensions to min and max, as tabulated. RLC Range: Parameter Minimum Low Extension Basic Ranges Maximum High Extension R: 1 kHz 0.0001 ohms 2 ohms to 2MW 9.9999 M ohms R: 120 Hz 0.0001 ohms 2 ohms to 2MW 99.999 M ohms L: 1 kHz .00001 mH 0.2 mH to 200 H 999.99 H L: 120 Hz 0.0001 mH 2 mH to 2000 H 9999.9 H C: 1 kHz .00001 nF 0.2 nF to 200 µF 999.99 µF C: 120 Hz 0.0001 nF 2 nF to 2000 µF 99999 µF Q (with R) .0001 to 9.999 Q (with L) 00.01 to 999.9 D (with C) .0001 to 9.999 THE UNIT COMES W/ THE 1657-9600 COMPONENT FIXTURE AND THE TRANS/ DIODE FIXTURE. A POWER CORD ALSO COMES W/ THE SYSTEM. WE OFFER A DOMESTIC DOA WARRANTY WHICH MEANS UNITS OUTSIDE THE USA ARE SOLD AS IS W/O RETURNS. LET US KNOW IF YOU HAVE ANY QUESTIONS. THANKS FOR LOOKING WEGeneral Radio 1658 RLC DigibridgeG eneral Radio 1658 RLC Digibridge

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	GENERAL RADIO
MPN	1658
Model	RLC Digibridge
Country/Region of Manufacture	United States
