General Radio Gen Rad Genrad Z - Y Bridge, Type 1603-a

US $229.00

  • San Antonio, Texas, United States
  • Feb 12th
Open on mobile:
QR code

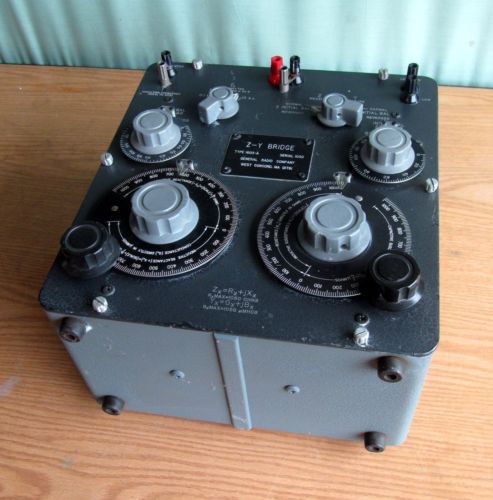

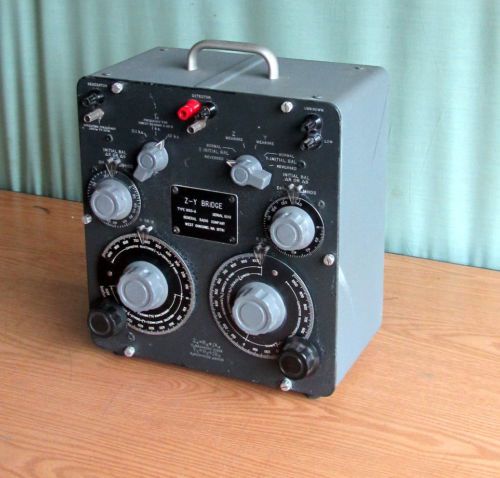

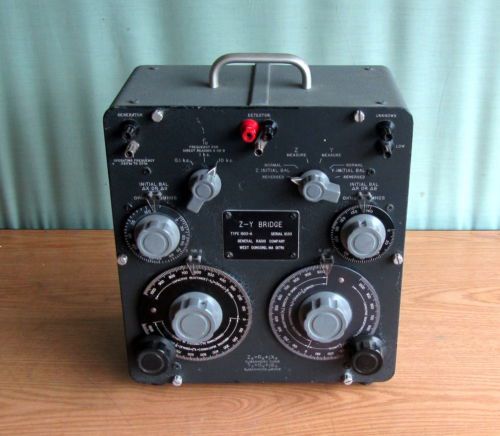

The General radio Type 1603-A is a versatile instrument that can measure any impedance from zero to infinity at any audio frequency. Impedance (Z) components (resistance and reactance) can be measured from 0 to 1,050 ?. Admittance (Y) components (conductance and susceptance) can be measured from 0 to 1,050 ?mhos. The frequency range is 20 Hz to 20 kHz, and the bridge requires an external oscillator and null detector. R and G are direct reading with an accuracy of 1%. X and B are direct reading at 100 Hz, 1 kHz and 10 kHz (scalable at other frequencies) with an accuracy of 1% to 7 kHz, 2% to 15 kHz and 3% to 20 kHz.  I use my Type 1603-A to measure the impedance of speakers, A-F transformers, and audio inputs in amplifiers and transmitters. Prices in GR catalogs: O (Jun-1956) $355.00, P (Apr-1959) $370.00, Q (May-1961) $450.00, R (May-1963) $475.00, S (Jul-1965) $515.00, T (Feb-1968) $750.00.  The Type 1603-A manual is online at the Boat Anchor Manual Archive. (text is from Star City Radios, etc.) This General Radio Type 1603-A, Serial 1030 has been stored in a large dry warehouse, where I found it, for many of the past years.  The 1603-A can be used standing up or it can be laid on its back.   It weighs about 20 lbs. and measures 13 x 9 x 14 inches high.  It has a good look to it.  I'll guarantee you'll be satisfied with it or you can return it for a refund before 14 days pass after receipt.
“Good appearance with a couple of blemishes (dings) and some alligatoring of painted surfaces after 45 years.”
Brand General Radio
Country/Region of Manufacture United States
Model Type 1603-A
