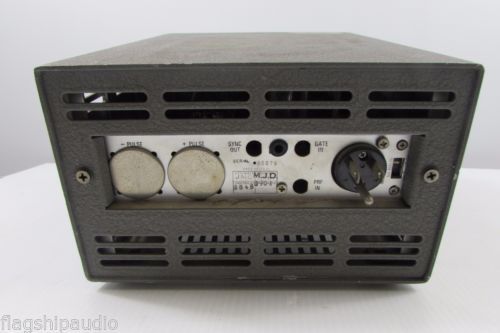

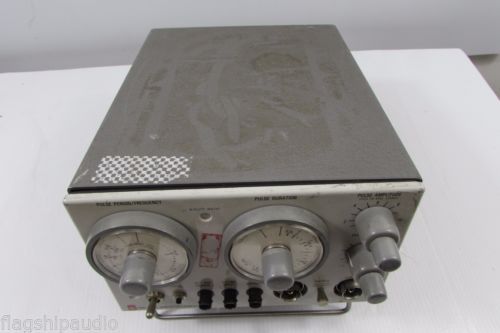

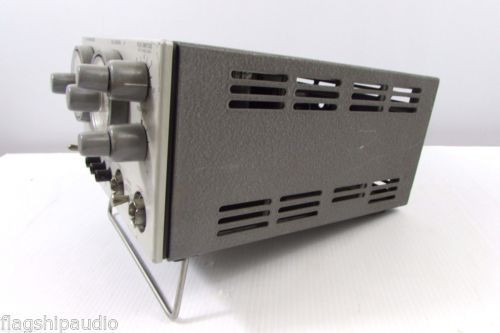

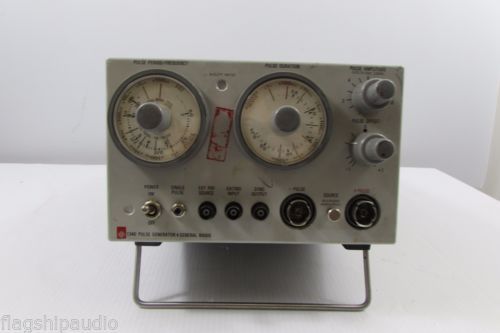

Genrad General Radio 1340 Pulse Generator, US $49.95 – Picture 0
Genrad General Radio 1340 Pulse Generator, US $49.95 – Picture 1
Genrad General Radio 1340 Pulse Generator, US $49.95 – Picture 2
Genrad General Radio 1340 Pulse Generator, US $49.95 – Picture 3
Genrad General Radio 1340 Pulse Generator, US $49.95 – Picture 4
Genrad General Radio 1340 Pulse Generator, US $49.95 – Picture 0
Genrad General Radio 1340 Pulse Generator, US $49.95 – Picture 1
Genrad General Radio 1340 Pulse Generator, US $49.95 – Picture 2
Genrad General Radio 1340 Pulse Generator, US $49.95 – Picture 3
Genrad General Radio 1340 Pulse Generator, US $49.95 – Picture 4

Genrad General Radio 1340 Pulse Generator

US $49.95

  • Prospect Park, Pennsylvania, United States
  • Jun 9th
Open on mobile:
QR code
Brand: General Radio Model: 1340 Condition: Used Voltage: 100-125V, 50-400 Hz Serial #: 279 Specs:  OUTPUT-PULSE CHARACTERISTICS   Duration: 25 ns to 2.5 s in 8 decade ranges, or square wave. Rise and Fall Times: 5 ns -2 ns at 5 V, 50 ohm load, and 50 ohm source resistance. Amplitude: Positive and negative ground-based pulses available simultaneously with independent amplitude and offset control. Source current continuously adjustable to at least 0.2. A (i.e., across 50 ohm load, 10 V from high source resistance or 5 V from 50 ohm source). Offset: Continuously adjustable source current from -20 to +20 mA. Source Resistance: 50 ohm, or high (approx 1 kohm) for 5O-ohm loads. Distortion: Preshoot, overshoot, ringing, etc, < 0.5 V (5% of max output). Duty Ratio: Duty ratios of over 70% can be obtained on all ranges except decreasing to approx 50% at 50 ns period in 50 to 500 ns range. SYNCHRONIZING PULSE   Waveform: Square wave. Negative transition precedes start of output pulse b y approx 35 ns; positive transition can be used for half-period pretriggering. Amplitude: 2.5V pk-pk positiive square wave behind 500-ohm source impedance. History:  Came from the MASSIVE collection of Laboratory Grade test equipment Test Report:  Guaranteed to be in good working order & within factory specs.  Warranty: AS-IS
“As shown”
Brand General Radio
MPN Does Not Apply
Model 1340
