George Stevens 39am Precision Xfmr Magnet Copper Coil Winding Winder Wire Core

US $3,999.99

  • Van Nuys, California, United States
  • Jan 31st

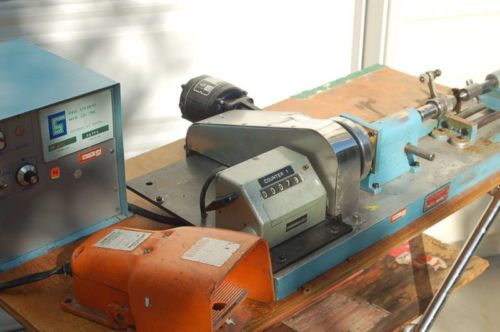

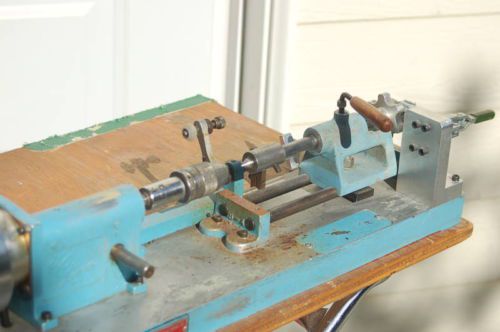

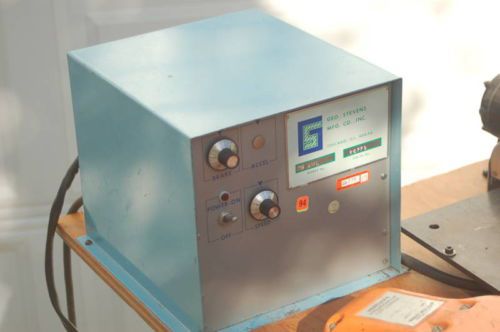

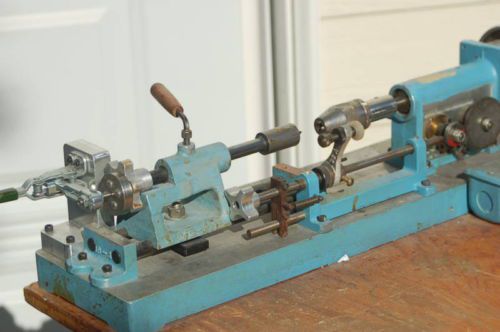

 George Stevens 39 AML - S/N 26779 All types of random wound Bobbin Coils; solenoids ; repeater coils as well as small precision instrument type miniaturized windings. Max coil 0D = 1-1/2" ( 38.1mm ) Max Coil Length 3/4" (19.05mm ) Wire size Wound   28-50 Winding Range  8 to 500 turns-per-layer Max. Loading Distance for Multiple Winding 5-1/2" ( 139.7 mm ) Winding Speeds - up to 7000 RPM Acceleration Control Motor equip- 1/12 HP , 7500 RPM , W/Built in Speed control 115 volt Emergency Stop Instant Re- setting Odometer Positive stopping Magnetic Brake Brake Release Feature Output End of Spindle 3/8" ( 9.525 mm ) flatted shaft. accommodates chucks or mandrel adapters. Standard Spindle Direction EXTREMLY COMPACT WINDING HEAD DESIGN ONLY 5" ( 127mm) W x 3-1/2"  (88.9 mm ) H x 1-1/2"  (38.1 mm ) THICK PROVIDES COMPLETE OPERATOR ACCESSIBILITY FOR PRECISION COIL WORK. TAILSTOCK FOR MULTIPLE WINDING OR FOR WINDING SOLID CORE BOBBINS .......................
