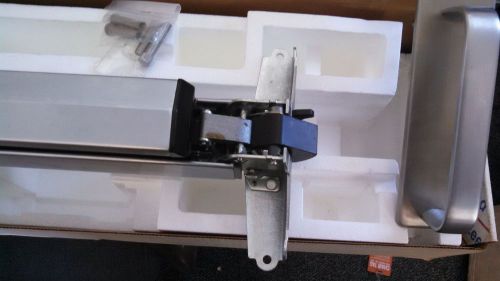

Global Door Controls New Panic Bar Heavy Duty Reversible Panic Exit Device

US $99.00

Springfield, Missouri, United States
Jan 30th

Open on mobile:
QR code

Global Series TH1100EDTBAR “touch bar” style exit devices are suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face. Manufactured of extruded anodized aluminum, the TH1100EDTBAR is durable enough for the most demanding applications. A rim cylinder is not included, and the EDTBAR can also be used in conjunction with any of the exit device trims listed below. Grade - ANSI A156.3 Grade 2 Warranty - 10 years Specifications: MATERIAL: Extruded anodized aluminum push bar, stainless steel springs LATCH: Stainless Steel, 3/4” throw - 5/8” deadlatch BACKSET: 2 3/4” Covers 161 prep, includes latch & strike filler plates STRIKE: Surface mounted for 5/8” stop with shim PROJECTION: 2 1/2” - 1 7/8” dogged STILE: 4 1/4” minimum HANDING: Reversible, non-handed DOOR THICKNESS: 1 3/4” standard DOOR WIDTH: 36”, can be field sized to 30” (48” available) MOUNTING HEIGHT: Recommended installation at 41" from finished floor to center line of push rail FASTENERS: Furnished with sheet metal and machine screws CYLINDER: Accepts all key trims cylinder DOGGING: 1/2 turn hex key FIRE RATED: Available - please specify FINISHES: Aluminum, Duronotic, and Stainless Steel Click here to view Exit Device Trims Surface Vertical Rod TH1100EDSV Global Series TH1100EDSV Surface Vertical Rod panic device is the perfect choice for double doors without mullions. Reversible for right for left hand doors, they are ideal for new construction or renovations. Our EDSV panics can be used in conjunction with any of our exit device trims listed below. Grade - ANSI A156.3 Grade 2 Warranty - 10 years Specifications: MATERIAL: Extruded anodized aluminum push bar, stainless steel springs LATCH: Top pullman type, Bottom bolt assembly DOOR HEIGHT: 7’ standard BACKSET: 2 3/4” on 4 1/2” minimum stile width - if less than 4 1/2" backset becomes half of the exposed stile width STRIKE: Top - surface mounted, Bottom - flat mortise or into threshold, vertical/rim application use DBLST double dr. strike PROJECTION: 2 1/2” - 1 7/8” dogged STILE: 4 1/2” minimum DOOR THICKNESS: 1 3/4” standard DOOR WIDTH: 36”, can be field sized to 30” MOUNTING HEIGHT: Recommended installation at 41" from finished floor to center line of push rail. FASTENERS: Furnished with sheet metal and machine screws CYLINDER: Accepts rim, all trims Schlage “C” keyway DOGGING: 1/2 turn hex key FIRE RATED: Available - please specify FINISHES: Aluminum, Duronotic, and Stainless Steel

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Brand

Heavy Duty
