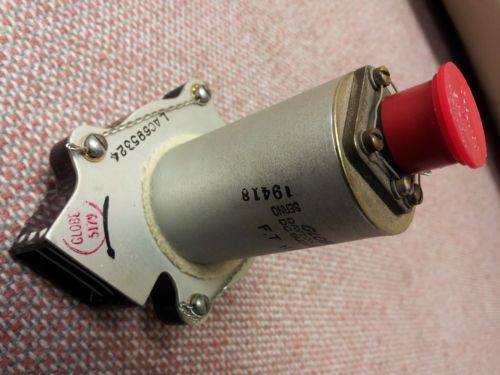

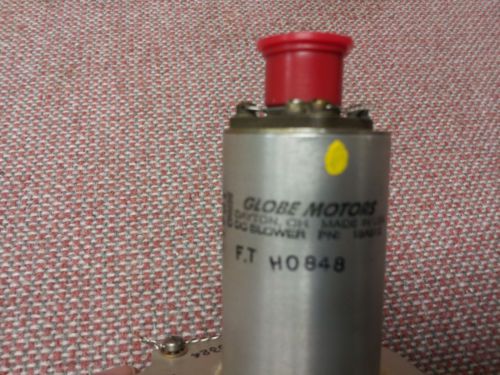

Globe Motors Dc Blower P/n C19a513 Nsn 4140-00-564-5980 Aircraft .012hp 720uf-i2

US $225.00

Indianapolis, Indiana, United States
Feb 25th

Open on mobile:
QR code

Government Paid $493.78 for these little blowers Drive type - Direct Electrical connection type - Connector Air flow rate - 10.9 cubic feet per minute nominal Ambient temp at full rated power - -55.0 deg celsius and 85.0 deg celsius Discharge direction - Angular down and angular up and horizontal and vertical down and vertical up End item identification - Sircraft, phantom f-4; aircraft, hercules c-130; simulator, c-130; aircraft, (ac-130h, mc-130h, ec-130e, hc-130); helicopter, uh-60a/uh-60d Environmental protection - Dustproof and explosion proof and fungus resistant and humidity proof and salt spray resistant and shock proof and vibration proof Inclosure type - Fully inclosed Operating speed at rated capacity in rpm - 8000.0 Outlet location - Bottom or top Outlet inside height - 1.188 inches nominal Outlet inside width - 0.875 inches nominal Material - Aluminum alloy blade Material - Plastic phenolic housing Prime mover power rating - 0.012 horsepower Prime mover type - Electric motor Rotation direction for which designed - Counterclockwise Special features - Positioning when mtg determines discharge blast direction,part number 19a513 is not coated Stage quantity - 1 Static pressure at specified air flow rate - 0.0 inches of water Style designator - Fixed, rectangular outlets Voltage in volts and current type - 27.0 dc Speed adjustments - Single speed Width - 4.016 inches nominal 19A513 Supplier Data Response for NSN 4140-00-564-5980 Item Name: FAN, CENTRIFUGAL CAGE Code: 25140 Company Name and Address: LABINAL COMPONENTS AND LABINMS INC GLOBE MOTORS DIV SIC Codes: 3621 Management Data Response for NSN 4140-00-564-5980 Item Name: FAN,CENTRIFUGAL PMI: U ADP: CC: N DML: A DI: ESDC: HMIC: N ENAC: S/A SOS AAC QUP UI Unit Price SLC CIIC RC MGMT CTL USC PC Phrase Statement UI Conv Factor OOU JTC --------------------------------------------------------------------- DS S9I D 1 EA 493.78 0 U ------- I DF S9I D 1 EA 493.78 0 U P SF9SX-N F DN S9I D 1 EA 493.78 0 U 9Z----- N Reference Number Data Response for NSN 4140-00-564-5980 Item Name: FAN,CENTRIFUGAL TYPE II: M INC: 04254 HCC:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Globe Motors
Model	C19A513
