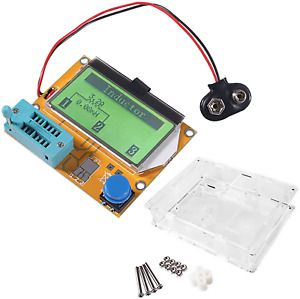

Gm328a Transistor Tester Diode Capacitance Esr Voltage Meter Pwm (english)

US $18.42

New Jersey, United States
Aug 24th

Open on mobile:
QR code

15oceaneshop 3 Business Day Estimated Delivery Mon. to Sat. Customer Service Warranty Service Product Description Description: GM328A Transistor Tester Diode Capacitance ESR Voltage Frequency Meter PWM Square Wave Signal Generator Description: Multi-functional transistor tester for automatic detection of NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout. It also can be used as square signal and PWM signal generator. Features: Digital LCD display for easy readings, can display measured data and graphics. Rotary switch control, a key measurement for convenient use. Main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip. Use 9V battery(not included), can also use DC power(DC 6.8-12V). Automatic shutdown, shutdown current is only about 20nA. Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout. Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector - emitter leakage current. Support 2 resistors measurement, show its positive and negative, on-state voltage. Resistance measurement maximum resolution 0.01, can be measured up to 50M. Automatically test the pins of a component and show on the display. Measure FET gate threshold voltage and gate capacitance. For the following 2100 resistor while measuring its inductance measuring range from 0.01mH - 20H. Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse width modulation) signals. Notice: Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter. Specifications: LCD Display: 160*128 Power Supply: 1 * 9V Battery(not included); DC 6.8-12V Current: Approx. 30mA Resistance Measurement: Max. 50M Resistance Resolution: 0.01 Capacitance Measurement: 25pF~100mF Capacitance Resolution: 1pF DC Voltage Measurement: Up to 50V Screen Size: 3.7 * 3cm / 1.45 * 1.18in PCB Size: 7.8 * 6.2cm / 3.1 * 2.44in Package Size:9*7*4cm/3.54*2.76*1.57" Package weight: 90g Style:English Included: 1 x GM328A Transistor pictures payment We accept PayPal only. All major credit cards are accepted through secure payment processor PayPal. Payment must be received within 7 business days of auction closing. If you have bought multiple items from me, you can send me one payment for all the items instead of paying for them individually. When you click the Pay Now button, eBay will automatically determine if there are other items you have won or purchased from me and will combine them for your review. NOTE: Import duties, taxes and chargers are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding buying. Warranty 12 months Warranty. Buy with confidence! If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it. If item is defective in 3 months, We will send you a replacement without extra charger, or offer refund after we receive the defective item. If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee. policies We are not responsible for any custom duty or import tax. We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are no satisfied with the item after receive it. All messages will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your message and we will reply to you as soon as possible. Serious Buyer Only! Please place bid only if you agree with all the terms. If you have any problems or concerns whatever with your order or products, please message us and give us a chance to assist you before you leave any feedback. We believe we can produce a positive outcome to any situation and will work hard to earn your praise. If you were pleased with this transaction, Please give us 5 star rating, thanks! Contact Us Our office hours are 9:00 a.m to 6:00 p.m (GMT +8) of Monday to Saturday. And our Office is closed on Sunday and public holidays. We apologize for the late reply during the holidays.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unbranded
Capacitance Resolution	1pF
MPN	Does Not Apply
DC Voltage Measurement	Up to 50V
LCD Display	160*128
Screen Size	3.7 * 3cm / 1.45 * 1.18in
Power Supply	1 * 9V Battery(not included); DC 6.8-12V
PCB Size	7.8 * 6.2cm / 3.1 * 2.44in
Current	Approx. 30mA
Package Size	974cm/3.542.761.57"
Resistance Measurement	Max. 50M
Package weight	90g
Resistance Resolution	0.01
Style	English
Capacitance Measurement	25pF~100mF
UPC	Does Not Apply
EAN	Does Not Apply
