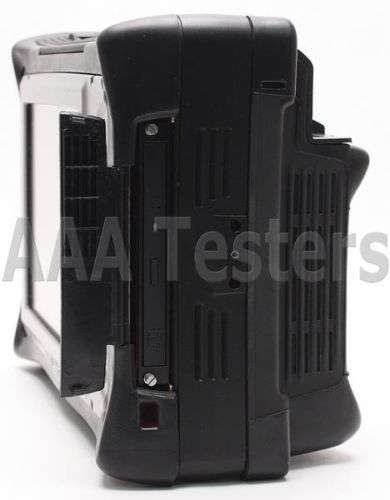

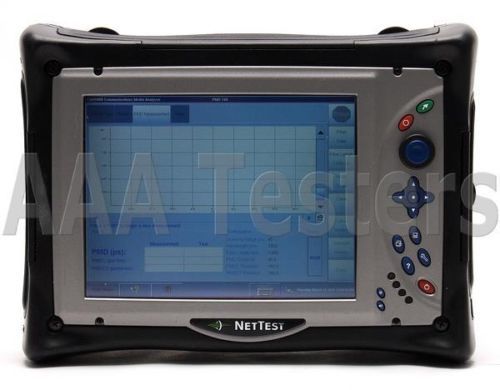

Gn Nettest Cma5000 5700 Gige Gigabit Ethernet & 5501 Optical Spectrum Analyzer

US $3,895.00

Toledo, Ohio, United States
Mar 29th

Open on mobile:
QR code

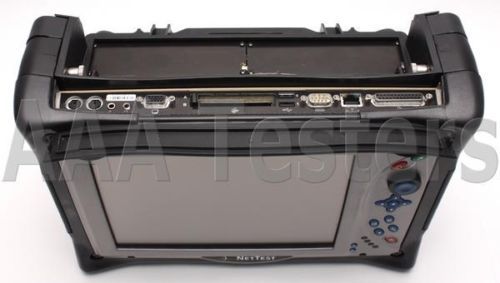

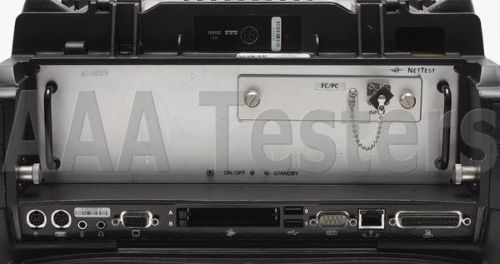

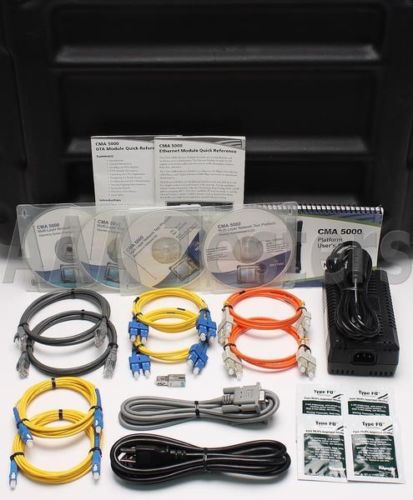

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: GN NetTest CMA5000 Mainframe (BC# 20116) GN NetTest 5700-001-GigE Gigabit Ethernet Module w/ Quick Reference Guide (BC# 20117) GN NetTest 5501-000-OSA-1 Optical Spectrum Analysis Module w/ Quick Reference Guide (BC# 20115) Finisar 850nm Transceiver P/N: K8400C3 w/ SC Connectors Finisar 1310nm Transceiver P/N: K127G9A w/ SC Connectors SC Attenuator P/N: 370504303 (2) MM Duplex SC-SC Fiber Cables (2) SM Duplex SC-SC Fiber Cables (2) SM SC-SC Fiber Cables (2) Ethernet Cables CMA5000 Application Software CD (2) Recovery CD's Desktop Admin CD (4) Fiber Optic Wipes AC Adapter/Charger Power Cord RS232 PC Interface Cable Hard Copy User Manual Hard Carrying Case BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! GN Nettest CMA5000 OTDR Mainframe w/ 5700 GigE Gigabit Ethernet Module & 5501 OSA Optical Spectrum Analysis Module The CMA 5700 is a double (2) bay module and can be used in either an SBA, MBA or LBA, it features 2 ports for SX, LX or 1550 nm GBIC interfaces for 1000 Mbps optical ethernet testing and 2 ports for RJ45 interfaces for 10/100/1000 Mbps electrical ethernet testing When characterizing and documenting such stringent performance levels, the CMA 5000 Optical Spectrum Analysis (OSA) application is the ideal single-solution for facilitating accurate and efficient channel management, power balancing and tuning throughout the network Includes Hard Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty The CMA5000 is one of the most modular and flexible field service offerings from Anritsu. Test Gigabit Ethernet, DWDM, SONET, OTDR, ORL, PMD and CD all with the same easy-to-use instrument The CMA5000 is a field portable, network testing platform designed for installation, maintenance and troubleshooting of next generation, convergence networks. It features a common user interface, open architecture design and numerous test technologies that allow the platform to evolve with user testing needs and address ever-changing telecommunication infrastructures. Comprehensive physical layer characterization is simplified with all required testing applications including OTDR, Optical Spectrum Analysis, Loss Test Set and Optical Return Loss. Supplemental tools such as a Visual Fault Locator and Video Inspection Probe are also available providing a complete testing solution. As services are deployed, the CMA5000 expands to certify performance of Gigabit Ethernet and SONET/SDH networks up to 10Gb/s. Why choose the CMA5000? Common platform supports all the tools needed for: Fiber installation and maintenance Rapid isolation of network problems In-depth analysis and monitoring of network performance It combines Best-in-Class performance with: Exceptional ease-of-use -Accurate results with little or no training Common feature set across different test applications - Leads to greater productivity One button tests that speed troubleshooting - Faster time to restore service Multi-layer test capability - Quickly isolate and resolve complex network problems CMA5000 provides significant advantages: The CMA5000 reduces the total cost of measurement - Common platform reduces the number of “boxes” needed to perform routine and emergency testing - Common user interfaces reduces training required for effective use of different applications The CMA5000 provides increased customer revenue - Simple bandwidth utilization monitoring leads to network optimization - Fast, efficient testing enables rapid restoration of existing services and quicker deployment of new ones Simple Go/NoGo tests are always backed up with detailed data for manual analysis Even though the unit is simple for the novice, the experienced users can drill down to get more in-depth results Today’s telecommunication professionals are faced with unprecedented challenges ranging from accelerating the deployment of highspeed communications services to reducing costs, including capital expenditures. NetTest answers these challenges with the CMA 5000 Multi-Layer Network Test Platform. The CMA 5000 is the industry’s premier test and measurement solution designed with the high performance and scalability necessary to meet the stringent demands of telecommunication professionals while simultaneously accelerating the deployment of new services and reducing the total cost of measurement. Reduce the Total Cost of Measurement One platform providing complete testing solutions for multiple network layers saves time by minimizing training, increasing user efficiency, reducing equipment inventory, and decreasing test time via best-in-breed specifications - reducing the total cost of measurement. Accelerate the Deployment of Services Unparalleled performance for all applications allows networks to be characterized and commissioned faster than the competition, thereby providing accelerated time to revenue. Optimize Performance and Bandwidth The CMA 5000 fully characterizes each fiber and network for maximum performance and revenue generation. CMA 5700 Gigabit Ethernet Module The CMA 5700 is a double (2) bay module and can be used in either an SBA, MBA or LBA. It features 2 ports for SX, LX or 1550 nm GBIC interfaces for 1000 Mbps optical ethernet testing and 2 ports for RJ45 interfaces for 10/100/1000 Mbps electrical ethernet testing. The CMA5000 Gigabit Ethernet module features four full gigabit line rate ports - two GBIC ports and two RJ-45 electrical 10/100/1000 ports. Test basic networks with the T'Gen / Monitor application. The RFC-2544 application measure critical parameters during network installation, including throughput, latency, burstability and frame loss (as detailed in RFC 2544). For in dpeth troubleshooting, the Channel Statistics option allows the user to quickly identify the root cause of network impairments, not just the symptoms. Channel Statistics presents detailed statistics on all traffic received for up to 8,000 individual Ethernet or IP addresses, VLAN tags or MPLS labels. Full line rate traffic generation and shaping for 10/100/1000 Base-T, 1000 BASE-SX, 1000 BASE-LX AND 1000 BASE-EX networks, combined with comprehensive professional reporting, ensures the easy installation, maintenance, troubleshooting and documentation of 10/100/1000 Mbps based ethernet networks. Specifications: Interface Specifications Ethernet Test Ports (2) Gigabit optical and (2) 10/100/1000 Mbps electrical Optical Line Interfaces Simultaneously hold any two, field swappable, industry standard 850 nm (SX), 1310 nm (LX) and 1550 nm (LD, EX) GBICs Electrical Line Interfaces 10/100/1000 Mbps RJ45 (unshielded and shielded twisted pair cables, category 3, 4, 5, 5E, and 6) FDX and HDX operation Traffic Generation Variable line rate traffic generation, up to full line rate Configurable IP and Ethernet source and destination addresses (Support of IPv4 and IPv6 addressing) Unicast and broadcast frames EtherType II (DIX V.2), IEEE 802.3 with 802.2 (LLC1) and IEEE 802.3 with SNAP encapsulation Adjustable frame size from 44 bytes to 10,000 bytes provides testing of undersize, oversize, and jumbo frames User definable VLAN ID and VLAN priority Configurable data field (payload) supporting PRBS or user defined payload User definable traffic mix (Broadcast and Unicast) Frame sizes may be set to constant, stepped, or random length to emulate real world traffic profiles In addition, when used with Ethernet or IP address swapping, all measurements may be performed in loopback or point-to-point networks allowing the CMA5000 to measure any network topology for unsurpassed versatility Ethernet Measurements (per port) The CMA5000’s comprehensive active (RFC 2544) and passive (monitoring and statistics) testing capability accelerate Ethernet service deployment and facilitate faster troubleshooting and maintenance. Installation/Commissioning (RFC 2544) Throughput Frame loss Latency IP Jitter Back-to-Back frames Ping Test For efficient connection/configuration check and round trip time (RTT). Supports both IPv4 and IPv6 addressing. General Health/Line Statistics Link status Remote fault Signal present Frames present Speed Full or half duplex Interface type Local clock Pause capable Asymmetric pause capable Link partner capabilities Performance Statistics Max., min., average utilization Max., min., average throughput Max., min., aaverage frame rate Frame Statistics Total frames Total good frames Unicast frames Multicast frames Broadcast frames Number of pause frames Total errored frames Number of fragments Number of undersized frames Number of jabbers/oversize frames Number of FCS errored frames Number of collisions (10/100 Mbps half duplex only) Preamble violations Alignment errors IFG violations Encapsulations (Frame Formats) Supported EtherType II (DIX v.2) IEEE 802.3 - LLC1 IEEE 802.3 - SNAP Ethernet Measurements (per port) Adjustable Thresholds (When any threshold is exceeded, the user receives a visual indication and the time and date are recorded in the events tag.) Utilization Throughput Collision rate Unicast frames Multicast frames Broadcast frames Pause frames Errored frames Fragment frames Undersized frames Oversize frames FCS errored frames IFG violations Preamble violations Alignment errors Frame Distribution Statistics (Ethernet and IP) Total valid/good frames 64 - 127 byte frames 128 - 255 byte frames 256 - 511 byte frames 512 - 1023 byte frames 1024 - 1518 byte frames Total number of jumbo frames Max., min., average frame size Burst Statistics Total frames in bursts Max., min., average burst size CMA 5501 OSA Diffraction Grating Module The CMA 5501 is a double-deep (4-Bay) module that must be used with a MBA or LBA. Today's competitive environment demands that networks offer exceptional performance and reliability with minimal down time. When characterizing and documenting such stringent performance levels, the CMA 5000 Optical Spectrum Analysis (OSA) application is the ideal single-solution for facilitating accurate and efficient channel management, power balancing and tuning throughout the network. The OSA application lowers DWDM installation and maintenance costs by providing industryleading spectral analysis of system-critical parameters. Operating from 1450-1650 nm (S-, C- and L-bands), the OSA module for the CMA 5000 maintains industry-leading accuracy performance over the entire temperature and spectral range. In addition, 30 dB of OSNR at ±25 GHz channel spacing is perfect for testing high-capacity DWDM systems. Increased revenue through accurate channel characterization: 30 dB of OSNR at ±25 GHz channel spacing +20 pm wavelength accuracy over spectrum and temperature +0.3 dB power accuracy over spectrum and temperature Added value through performance: High resolution, two-pass Diffraction Grating Wide spectral range for characterization of the S-, C- and L-bands with a single unit Reduced cost of measurement: Easy-to-use - one button complete spectral characterization User-defined configurations for custom DWDM testing Reduced test time through targeted applications Specifications: Technology Diffraction Grating Wavelength Range 1450 - 1650 nm Wavelength Accuracy ±20 pm FWHM (typical) Wavelength Repeatability ±5 pm Resolution Bandwidth 85 pm FWHM (typical) Channel Spacing (minimum) 25 GHz Power Range +15 to -65 dBm Power Accuracy ±0.3 dB over temperature and spectrum Power Linearity ±0.1 dB Power Repeatability ±0.1 dB Stability ±0.2 dB per hour Optical Signal to Noise Ratio >40 dB @ ±100 GHz >35 dB @ ±50 GHz >30 dB @ ±25 GHz (typ.) Channel Table 256 simultaneous Sweep Time 4 seconds typical over full spectrum Polarization Dependence Loss <±0.05 dB Optical Return Loss >35 dB Internal Reference Yes Channel Drop Feature 5 dB maximum loss (optional) Operating Temperature 0? to 40? C (32? to 104? F) Storage Temperature Range -20? to 70? C (68? to 162? F) Humidity 95% RH non-condensing Connector Types Single-mode FC or SC (PC/Ultra polish) Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Put your listings on autopilot with Kyozou eBay Listing Management Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	GN NetTest
Model	CMA5000
