US $23.20
Condition: |
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is
applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
...
|

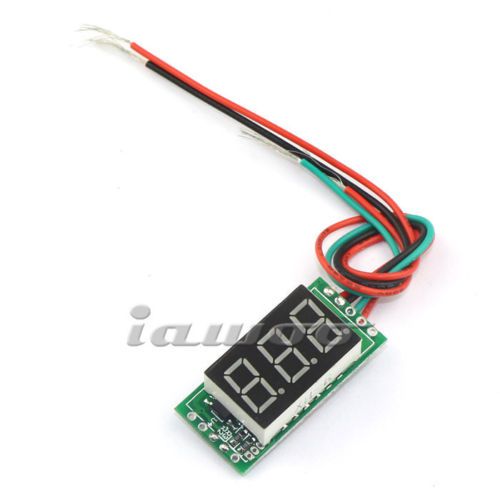

Digital tube | 22.5 x 14 x9 mm |
Refresh rate | about 300mS / times | ||
PCB Dimension | 34mm x 15 mm | ||
accuracy | 0.5% (+ / - 5 digits) | ||
Operating voltage | DC 7-30V | ||
Overload | four times the range | ||
Measuring current | 0-100A | ||
Operating temperature | -40°c -85 °c | ||
Minimum display | DC 0A | ||
Input impedance | about 100Kohm | ||
Maximum display | DC 99.9A | ||
Over range display | 0 | ||
Display Color | Green | ||
With anti-reverse protection | Yes | ||
Display | three 0.36 "LED digital tube |

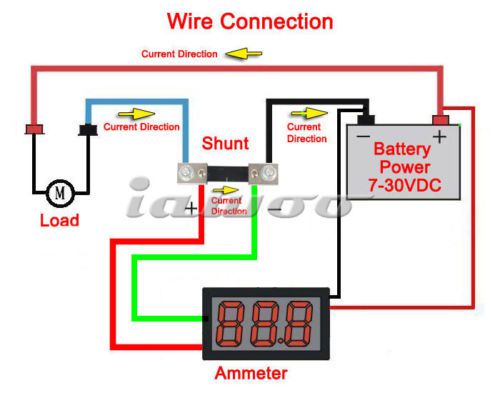

Directions
