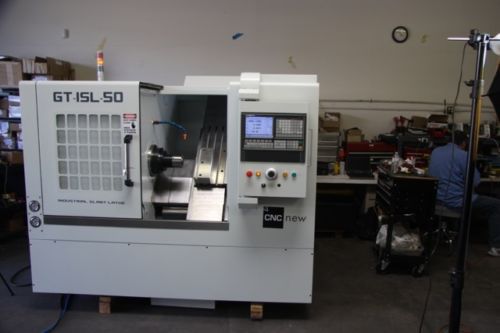

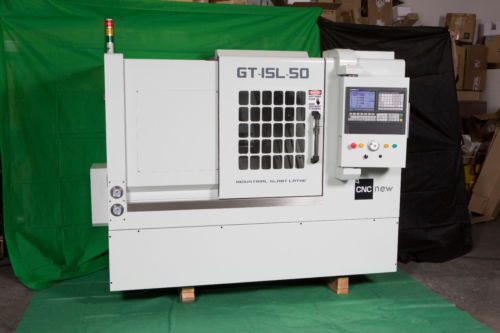

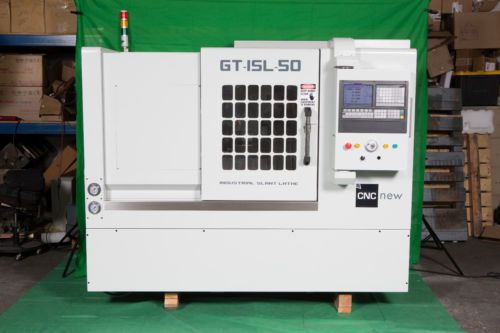

Gt-isl-50 Industrial Slant Combination Gang & Turret Lathes

US $56,950.00

Santa Ana, California, United States
Jan 30th

Open on mobile:
QR code

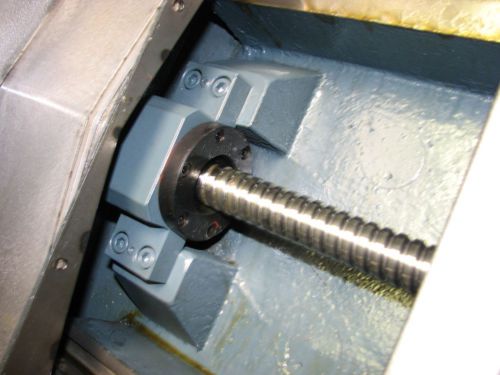

GT-ISL-50 Specifications Capacities S.A.E Metric Max Turning Diameter 15.74 in 400 mm Max Swing Over Table 7.55 in 192 mm Bar Capacity 1.96 in (Optional 2”) 50 mm (52 mm) Travels & Feedrates X-Axis Travel 16.5 in with way covers 420 mm Z-Axis Travel 15.74 in 400 mm Rapid on X-Axis 590 in/min 15 m/mi Rapid on Z-Axis 787 in/min 20 m/mm Axis Max Feed Rate 400 in/min 10.15 m/min Spindle Power Rating 15 hp 11 kw RPM 15 – 4,500 Spindle Bore 2.4 in 61 mm Drawtube bore 1.96 in 50 mm Spindle Nose A2-6 A2-6 Collet Actuator Hydraulic Cylinder Base Integral Casting One Piece Construction Slant Angle 45 Degree Rail Span 17.32 in 440 mm Casting Weight 3,300 lbs 1,500 kgs Linear Rails X/Z 1.81 in P Accuracy X/Z 30mm P Accuracy Ball Screws Precision X/Z Ground 1.26in C3 Accuracy X/Z Ground 32mm C3 Accuracy Auto Lubrication Linear rails and ball screws Head Stock Cast Iron Cast Iron Turret WorkHolding Gang Turret Table HT. 3.818 in 97 mm Table Length T-Slot 24.41 in 620 mm Chuck Size 8 in Center Height Holders 3/4 ” center height tooling Custom tool holders on request Collet Nose Options A2-6 Precision Positional Repeatability ±0.0001 (one tenth) 0.00254 mm Positional Resolution ±0.00005(50 millionths) 0.00127 mm Positional Accuracy ±0.0001 (one tenth) 0.00254 mm Spindle Runout 0.00005 (50 millionths) 0.00127 mm C-Axis Indexing Increment 0.001° 360,000RadialPosition Requirements Coolant Capacity 18.5 gallons 70 Liters Coolant Pump 3/4 hp 0.5 Kilowatt Power Required 16 KVA- 42 amps Voltage 208-240 VAC 3-Phase Machine Dimension Floor Space L X W 68 X 35 in 1,730 X 890 mm Machine Height 63.00 in 1,600 mm Sheet Metal Length 87.4 in 2,220 mm Sheet Metal Width 56.6 in 1,438 mm Machine Weight 4,500 lbs 2,045 kgs

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	CNC New, Inc.
Country/Region of Manufacture	United States
Model	Gang Tool & Turret Lathe Combo
