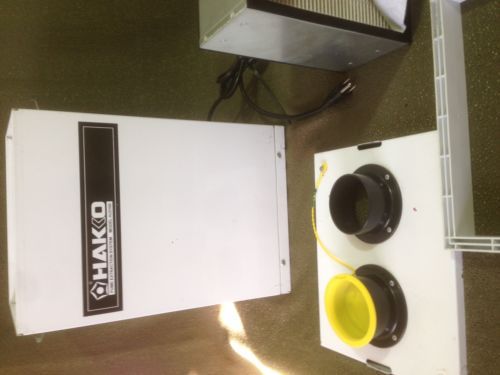

Hakko Hj3100 Soldering Station Fume Extractor.

US $250.00

Mission, Texas, United States
Feb 25th

Open on mobile:
QR code

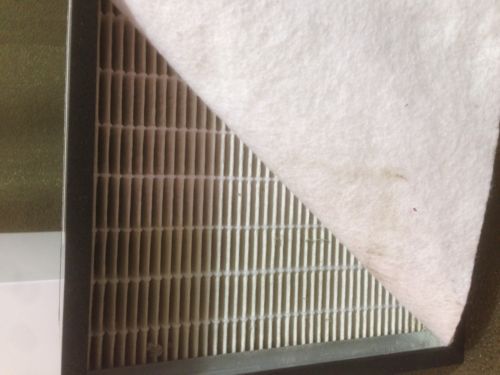

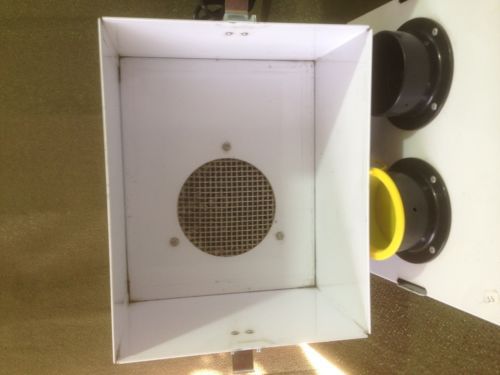

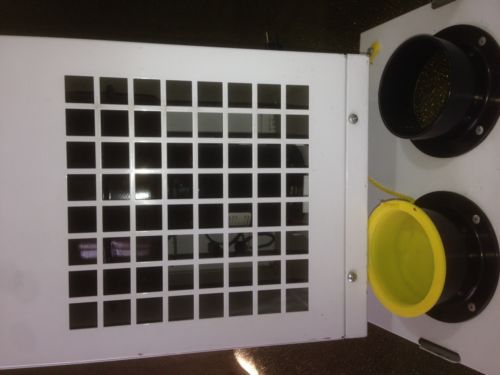

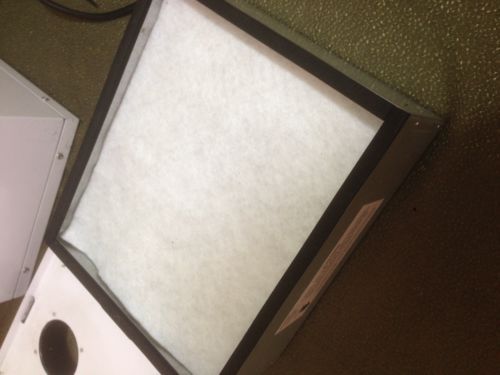

Part No. HJ3100 Input Voltage 115VAC - 50/60 Hz Current Draw 3.5a Power Consumption 350W Motor Type PSC - Thermally Protected Vacuum Pump/Blower Rating One Port: 100CFM (169 cu.m/h) Two Ports: 180CFM (305 cu.m/h) Noise Level 59dB Filters Pre-filter and HEPA/Carbon combination Dimensions 11(W) x 9(D) x 18(H) in. 27.94(W) x 22.86(D) x 45.72(H) cm Weight (w/ filters) Approx. 18 lbs. (8.16 kgs) The HJ3100 fume extraction unit is designed expressly for use at soldering stations, extracting the contaminated air directly at the source.The HJ3100 is a high-mass flow, low vacuum system. Contaminated air is captured from the workplace surrounding the soldering station by the hood or hoods, and transferred to the HJ3100 unit by flexible or rigid ducts. Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the HJ3100 is located. The pre-filter is made of a treated polyester material that removes coarse particles, such as dust, thus extending the life of the main HEPA filter. The HEPA (High Efficiency Particulate Air) filter consists of a pleated fiberglass paper medium, providing the greatest amount of surface area within the volume of the filter case. The standard filters used in the HAKKO HJ3000-series fume extractors contain an activated carbon element built into the filter. This filter is designed to last the life of the main HEPA filter. Carbon filters have absorption ratings of 80-85%. Efficiencies of the various HEPA/carbon filters for the HJ3100 are greater than 98% at 0.3 microns. All tests per the DOP test as stipulated in MIL-STD-282. A wide range of accessories are available. condition of filter Unknown. Every Fume extractor has been tested by professional technicians and are working 100 % . may have have some scratches and scuffs since is a used item but overall in great condition!

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	HAKKO
Country/Region of Manufacture	United States
