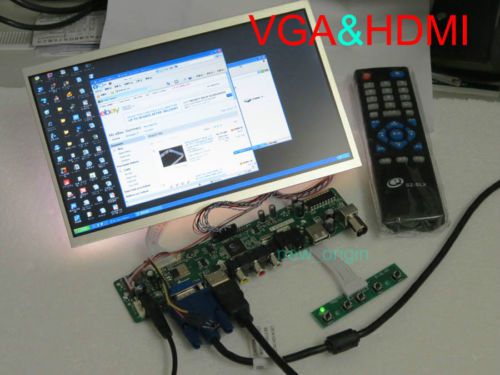

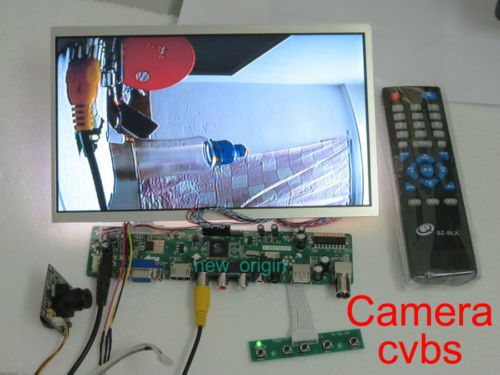

Hd 1024*600 10.1 Inch Lvds Tft Lcd Display Module Kit Support Av/vga/tv/hdmi Fpv

US $99.00

ShenZhen, China
Jan 29th

Open on mobile:
QR code

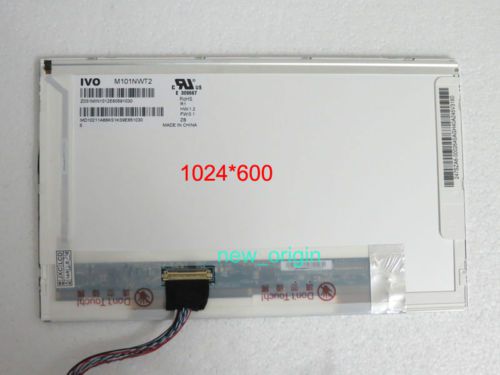

HD 1024*600 10.1 inch LVDS TFT LCD Display Module kit Support AV/VGA/TV/HDMI FPV LCD Specification (you can also inquire more details of the LCD through email) Items Specifications Screen Diagonal 10.1 inch Active Area 222.72(H)mm x 125.28(V)mm Outline Dimension (MAX) 243.5(H) x 147.0(V) x3.8(D) mm Pixels H x V 1,024 (x3) x 600 Pixel Pitch 0.2175(H)x0.2088(V)mm Display Mode TN Mode?Normally White Contrast Ratio 400 (Typ.) Response Time 8(Typ.)ms View Angle(L/R/U/D) 45/45/15/35(Typ.) Input Voltage +3.3 (Typ.)V Power Consumption 2.8 (Max)Watt Module Weight 175 (Max.)g Electrical Interface (Logic) LVDS LCD PIN information Pin # Signal Name Description 1 GND Ground 2 VDD Power supply 3.3V(Typ.) 3 VDD Power supply 3.3V(Typ.) 4 VEDID EDID +3.3V Power 5 (NC) Not Connected(Reserve for BIST Mode) 6 CLK_EDID EDID Clock Input 7 DAT_EDID EDID Data Input 8 Rin0- -LVDS differential data input(R0-R5,G0) 9 Rin0+ +LVDS differential data input(R0-R5,G0) 10 GND Ground 11 Rin1- -LVDS differential data input(G1-G5,B0-B1) 12 Rin1+ +LVDS differential data input(G1-G5,B0-B1) 13 GND Ground 14 Rin2- -LVDS differential data input(B2-B5,HS,VS,DE) 15 Rin2+ +LVDS differential data input(B2-B5,HS,VS,DE) 16 GND Ground 17 CLKN- -LVDS differential clock input 18 CLKN+ +LVDS differential clock input 19 NC Not connected(Reserve) 20 LVDS_EN LVDS enable input level(+3.3V) 21 NC Not connected(Reserve) 22 GND Ground-Shield 23 NC Not connected(Reserve) 24 NC Not connected(Reserve) 25 GND Ground-Shield 26 NC Not connected(Reserve) 27 NC Not connected(Reserve) 28 GND Ground-Shield 29 NC Not connected(Reserve) 30 NC Not connected(Reserve) 31 VLED_GND LED Ground 32 VLED_GND LED Ground 33 VLED_GND LED Ground 34 NC Not connected(Reserve) 35 VPWM_EN System PWM Logic Input Level 36 VLED_EN LED enable Input Level(+3.3V) 37 NC Not connected(Reserve) 38 VLED LED Power Supply 5V-21V 39 VLED LED Power Supply 5V-21V 40 VLED LED Power Supply 5V-21V LCD driver Board Specification (you can also inquire more details through email) OSD Language Chinese, English, Italian, French, Portugal, Germany, Spanish, Russia LCD interface LVDS Resolution up to 1920x1080 TV input 48.25MHz ~ 863.25MHz input inpedance: 75ohm input format: PAL, SECAM VGA input(PC-RGB) Up to 1920x1080@60Hz CVBS input PAL/NTSC/SECAM HDMI input 480i, 480p, 576i, 576p, 720p, 1080i, 1080p PC input 0.2 ~ 2.0 VRMS CVBS input 0.2 ~ 2.0 VRMS Audio output 100Hz~15KHz @±3dB (1KHz reference signal) 2x3W(4?)THD+N<10%@1KHz (Power Supply: 5V, Audio Input: 0.5VRMS) Power supply 12V DC/12V(built in) Standby Power Consumption < 0.22W(Board Only) Human Interface IR remote control/KEY board Key board function MENU, UP, DOWN, LEFT, RIGHT, POWER Package list 1 * LCD 1 * LCD driver board 1 * KEY BOARD 1 * IR Receiver 1 * Remote Controller 1 * LVDS LCD cable 1 * KEY cable **************************************************************************************** Policies: Payments and Shipping 1. Paypal only 2. Upon receiving your payment, item(s) will be shipped within 24 working hours. 3. Parcels will be shipped out within 1 business days after received the payment and delivery to the your address on PayPal which normally takes 7 -25 days.(we will provide the tracking number) United States , United Kingdom , Australia, Canada(Ship By ePacket 10-15 working days ) Returns and Exchanges 1. All returns/exchanges must be in brand new & resalable condition and in original packing. 2. Returns must be received by us within 14 days upon the delivery date of the order. 3. It may takes up to 7 business days on processing the returned product(s). 4. Warranty with free repair services will be provided for all products, which will be effective after 30 days from the date you received the product(s). If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country/Region of Manufacture	China
Model	10.1 inch LVDS 1024*600
