Heinemann 7 Amp Military Surplus Toggle Switch 240v Hm2-z04-237 M39019/01-237

US $30.00

Westerville, Ohio, United States
Mar 5th

Open on mobile:
QR code

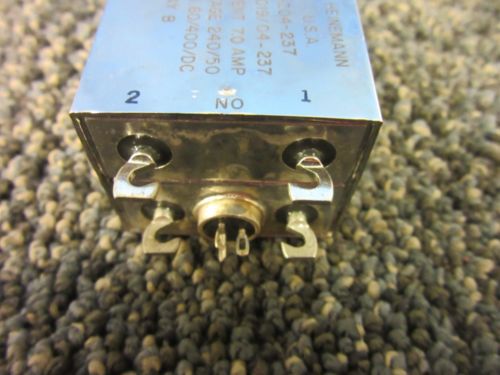

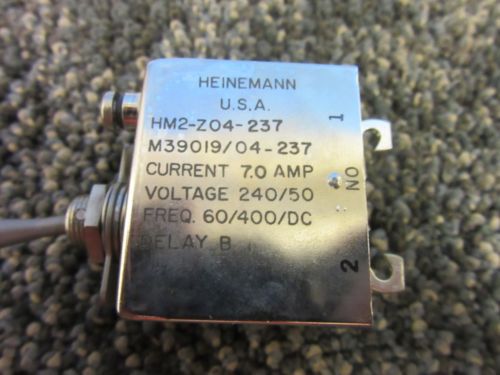

FOR SALE IS A BRAND NEW HEINEMANN ON/OFF CIRCUIT BREAKER TOGGLE SWITCH. MILITARY SURPLUS - MADE IN THE USA! THE PART NUMBER IS HM2-Z04-237 M39019/01-237. THE NSN IS 5925010581264. THE SPECIFICATIONS ARE AS FOLLOWS: MRC Parameter Characteristics AAJE Thread Pitch Diameters +0.3503/+0.3537 inches AAQL Body Style Multipole-single actuator type ABXD Bushing Length 0.332 inches minimum and 0.380 inches maximum ADAQ Body Length 1.531 inches minimum and 1.562 inches maximum ADAT Body Width 1.250 inches minimum and 1.281 inches maximum ADTV Case Material Metal AEBP Center TO Center Distance Between Terminals Parallel TO Length 0.875 inches minimum and 0.906 inches maximum AEBQ Center TO Center Distance Between Terminals Parallel TO Width 0.594 inches minimum and 0.653 inches maximum AEGJ Switch Contact Arrangement Single pole, double throw AJWX Mounting Surface TO Terminal END Distance 1.797 inches minimum and 1.828 inches maximum AKPX Pole Quantity 2 AXHR Mounting Facility Type AND Quantity 1 threaded bushing W/panel seal BBRG Storage Type General purpose warehouse CMLP Thread Quantity PER Inch 32 CPLM Maximum Continuous Load Current Rating PER Pole 7.0 amperes ac all locations and 7.0 amperes dc all locations CPRF Operating Voltage Type AND Rating PER Pole IN Volts 240.0 ac all locations and 50.0 dc all locations CPRG Maximum Interrupting Capacity Current Type AND Rating PER Pole IN Amps 300.0 ac all locations and 500.0 dc all locations CPRH Circuit Protection Type Overcurrent all locations CPRJ Trip Release Method Magnetic all locations CPRL Trip Release Characteristic Time delay all locations CPRN Ultimate Trip Rating OF Continuous Current Rating PER Pole IN Percent 115.0 all locations CPRQ Reset Method Manual CPRR Main Contact Tripping Mechanism Type Trip free CPRT Manual Actuator Type AND Quantity 1 toggle CPRW Actuator Function Trip-reset CPRX Actuator Position Designation Between pole one and two CPRZ Auxiliary Switch Function AND Quantity 1 alarm CPSM Internal Trip Release Configuration Series trip all locations CQJX Nominal Thread Size 0.375 inches CQSM Switch Location AND Position Designation Internal at pole two CQWN Trip Delay Time IN Seconds PER Rated Continuous Current 0.500 minimum at 200 pct all locations and 9.000 maximum at 200 pct all locations CQXF Inclosure Protection Type FOR Which Designed Fungus resistant and hermetically sealed CRTK Switch Terminal Type Tab, solder lug CSSX Switch Current Rating AND Type IN Amps 0.5 ac and 0.5 dc CSWP Switch Voltage Rating AND Type IN Volts 120.0 ac and 50.0 dc FREQ Frequency IN Hertz 400.0 all locations PKWT Unpackaged Unit Weight 100.0 grams TEST Test Data Document 81349-MIL-PRF-39019 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). THSD Thread Series Designator UNEF TTQY Terminal Type AND Quantity 4 wire hook ZZZK Specification/Standard Data 81349-MIL-PRF-39019/4 government specification IF YOU HAVE ANY QUESTIONS, PLEASE FEEL FREE TO CALL ME 1-614-580-0951. You will not be disappointed. My feedback speaks for itself. If you have any questions please email me and check out the other items I have for sale. If you have problems with your order, PLEASE CONTACT ME BEFORE LEAVING FEEDBACK. Thanks, Mark ATTENTION! – ATTENTION! – NOTICE! – NOTICE! BEFORE LEAVING FEEDBACK PLEASE CONTACT ME. I WANT TO MAKE YOU HAPPY AND FIX THE ISSUE. IF YOU BOUGHT THE WRONG THING, IT IS BROKEN, IF SHIPPING TOOK TOO LONG OR EVEN IF YOU’RE HAVING A BAD DAY. I WANT TO HELP!! I WANT TO KEEP MY FEEDBACK CLEAN.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	HEINEMANN USGI
Country/Region of Manufacture	United States
Model	CIRCUIT BREAKER TOGGLE SWITCH
NSN	5925010581264
MPN	HM2-Z04-237 M39019/01-237
