Heller 8' X 5/16" Pinch 4 Rolls Plate Bending

US $13507

Watertown, Connecticut, United States
Jun 9th

Open on mobile:
QR code

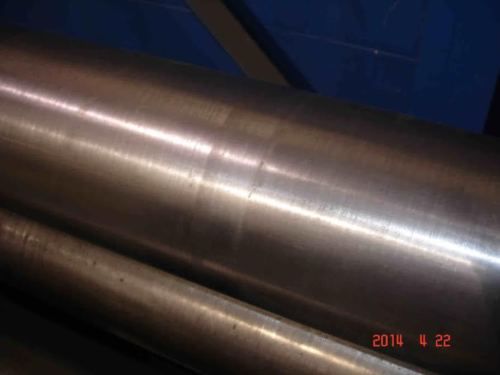

Item#4788 Heller 8' x 5/16" Pinch 4 Rolls Plate Bending Equipped With: The machine comes with a cone rolling device mounted at the drop-end of the machine All roll movements are controlled with joy sticks on the main control console Machine comes with perimeter safety cable when tripped the machine functions stop. In order to be able to repeat a rolling sequence, simple record the side roll digital positions for each pass of the material through the machine. In order to roll the minimum diameter cylinder in the maximum thickness & length material, more than one pass will be required. Machine Specifications: Rated capacity: 2500 mm x 8 mm in mild Steel yield strength of approx.. 36,000 P.S.I. Rolling Capacity: 8 Ft. x 1/4 ” Top roll Diam. 7.9” Bottom Roll Diam: 7.1” Side Roll Diam. 5.9” Total number of rolls: 4 Smallest possible Diam. That can be rolled: 1.1 Times Top roll diameter or: 8.69” I.D. Top & Bottom Clamping Rolls are Driven All 4 Rolls are hardened and Ground Bottom pinch roll can be hydraulically tilted for cone rolling Side rolls c n be tilted for cone rolling Hydraulic Drop end for easy removal of completed cylinders Position of side rolls can be repeated by way of digital read out for each side roll All control functions are made from the control panel located at the drop-end of the machine, this allows the operator a clear view of the rolling process. Shipping Point: Price: $ 48,500.00 SPECIFICATIONS SUBJECT TO VERIFICATION** Rigging and Hauling NOT Included Call On Target with all your equipment questions-203-441-4655 kevinb@ontargetmachines.com
