Hi-q Pwm Dc Motor Speed Regulator Controller Plc Switch 6v-90v 15a

US $4.78

??, China
Jan 29th

Open on mobile:
QR code

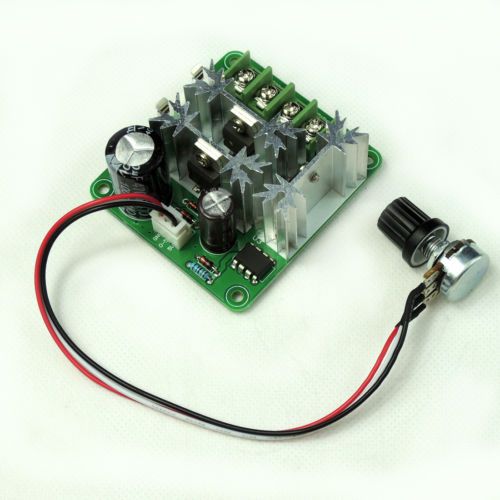

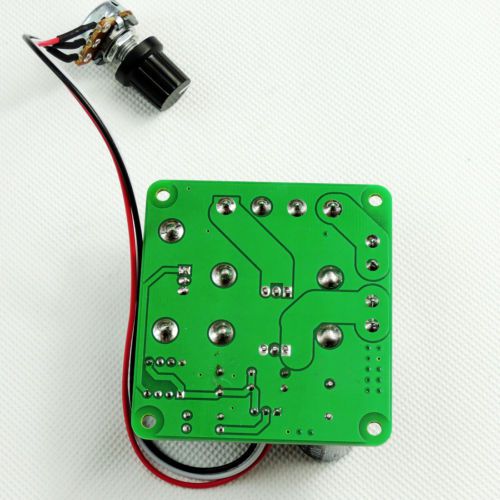

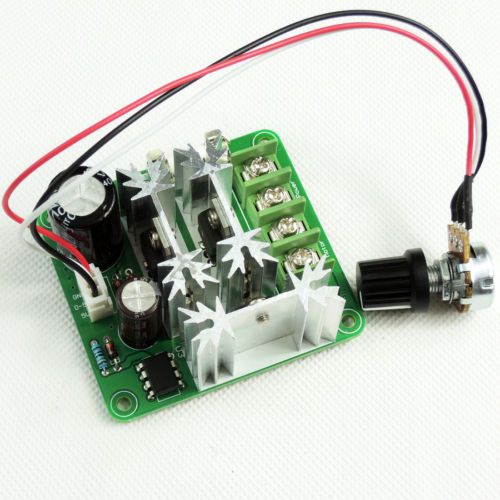

We provide free tracing No. for you Description CCMHCN DC Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%. The motor speed controller can provide a continuous current of 10A to your DC motor or other DC load. The use of 0-5V external voltage control line description. The speed controller supports the use of an external DC voltage control. The circuit also includes a 20A fuse, with reverse connection of power supply and control voltage over-voltage protection function. Main technical parameters: ?Input supply voltage: 6V-90VDC ?The maximum output power: 0.01-1000W ?The maximum continuous output current :10A; The overload and short circuit protecting current is 15A ?PWM frequency: 16kHz ?Duty Cycle adjustable: 0%-100% ?The 20A fuse with reverse connection of power supply and control voltage over-voltage protection function ?Can adjust the speed by the external 0-5V signal Specifications: ?Item size:64*59*28mm ?Two mounting holes of 3.2 mm each ?Net weight: 80g Operating instruction: 1.Connect your motor (or DC load) to the motor terminals as indicated on the wiring diagram. 2.Connect a voltage of 6 to 90V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is with a 20A fuse with the positive supply in order to protect the circuit from any possible short circuits. 3.You can now control the speed of the motor through potentiometer. Using the following steps: ?First, remove potentiometer. (you may take it down from one side of the circuit board or potentiometer side down under your need); ?Second, connecting 0-5V DC control signal to the middle pin marking 0-5V; ?Third, connecting the earth wire of 0-5V DC control signal to the connecting piece on the pin marking GND. Payment We only accept Paypal as a payment method Delivery details The item will be ship to buyer CORRECT and VERIFIED Paypal Address.We are not responsible for the package lost due to incorrect address. Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unique Goods
Country/Region of Manufacture	China
Model	CCMHCN
