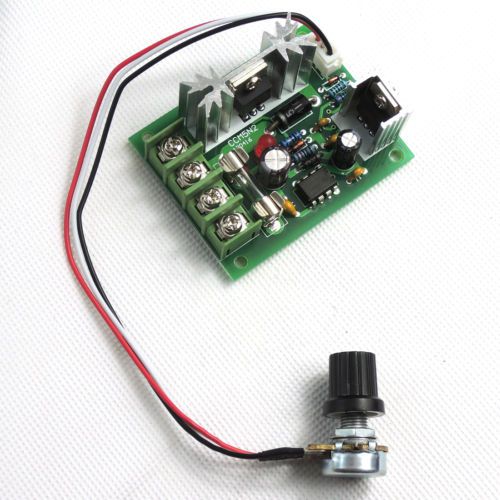

Hi-Q PWM DC Motor Speed Regulator Controller 5A 12V 24V 30V 120W With Fuse, US $5.85 – Picture 0

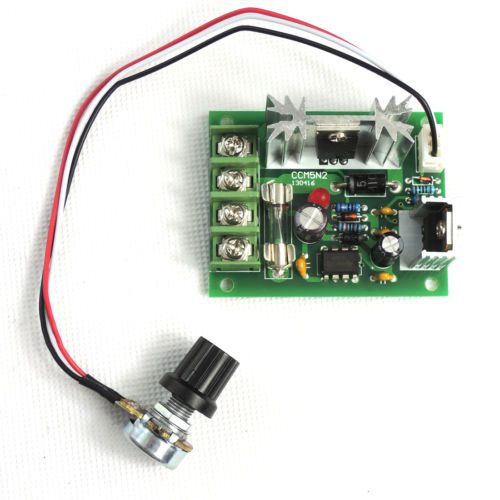

Hi-Q PWM DC Motor Speed Regulator Controller 5A 12V 24V 30V 120W With Fuse, US $5.85 – Picture 1

Hi-Q PWM DC Motor Speed Regulator Controller 5A 12V 24V 30V 120W With Fuse, US $5.85 – Picture 2

Hi-q Pwm Dc Motor Speed Regulator Controller 5a 12v 24v 30v 120w With Fuse

US $5.85

??, China
Jan 29th

Open on mobile:
QR code

MOTOR Description CCM5 DC Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%. The motor speed controller can provide a continuous current of 5A to your DC motor or other DC load. The circuit also includes a 10A fuse, with reverse connection of power supply and control voltage over-voltage protection function. The circuit also includes LED whose brightness varies proportional to the relative speed of the motor therefore giving a visual feedback of the current speed. Main technical parameters: ?Input supply voltage: 10V-30VDC ?The maximum output power: 120W ?The maximum continuous output current :5A; The overload and short circuit protecting current is 10A ? PWM frequency: 1kHz ? Duty Cycle adjustable: 0%-100% ? The 10A fuse with reverse connection of power supply and control voltage over-voltage protection function ? Power-On LED indicator Specifications: ?Item size:60*47*28mm ?Four mounting holes of 3.2 mm each ?Net weight: 50g Operating instruction: 1.Connect your motor (or DC load) to the motor terminals as indicated on the wiring diagram. 2.Connect a voltage of 10 to 30V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is with a 10A fuse with the positive supply in order to protect the circuit from any possible short circuits. 3.You can now control the speed of the motor through potentiometer. The LED’s brightness will also increase and decrease proportionally to the relative speed of the motor. Important Notes An appropriately rated fuse (rated a little higher than the maximum current you expect to draw) is recommended to ensure safe operation. The controller is with reverse-polarity protection and the fuse will be damaged if connect the supply voltage with wrong polarity. Double check all connections before applying power and always turn off the power supply before making any wiring changes. Payment We only accept Paypal as a payment method Delivery details The item will be ship to buyer CORRECT and VERIFIED Paypal Address.We are not responsible for the package lost due to incorrect address. Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unique Goods
Country/Region of Manufacture	China
Model	CCM5
