High Frequency, 1.3ghz - 1.5ghz+ Vco And Frequency Modulator

US $50.00

  • Chandler, Arizona, United States
  • Feb 28th
Open on mobile:
QR code

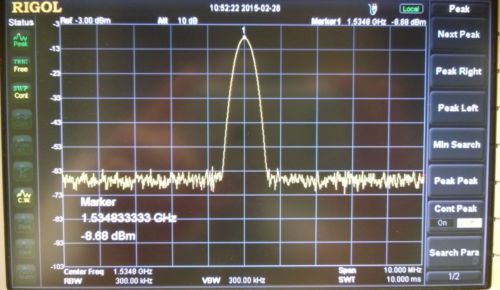

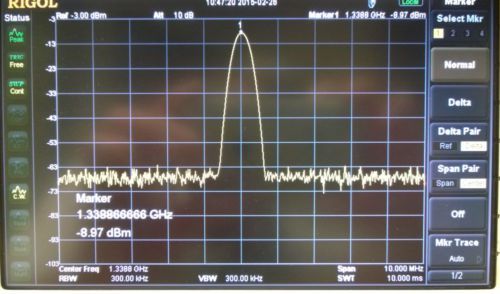

The item is a VCO and frequency modulator. The supply voltage is 4.75 to 5.5V. The lower frequency is close to 1.4 Ghz and the upper frequency is close to 1.6 Ghz.The tuning voltage is 0.3V to 5.5V. The output power ranges from -3.0 to 3.0 dBm. The supply current is a maximum of 35 mA. The tuning sensitivity is close to 65 Mhz/V.The phase noise at 10 Khz offset is typically -103 dBc/Hz. The load impedance should be 50 Ohm. The input capacitance is 120 pF max. The operating temperature range is -40 Deg C to 85 Deg C.
