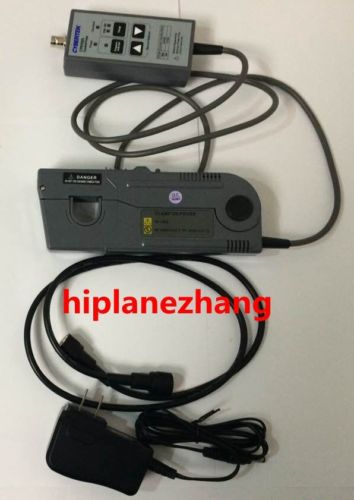

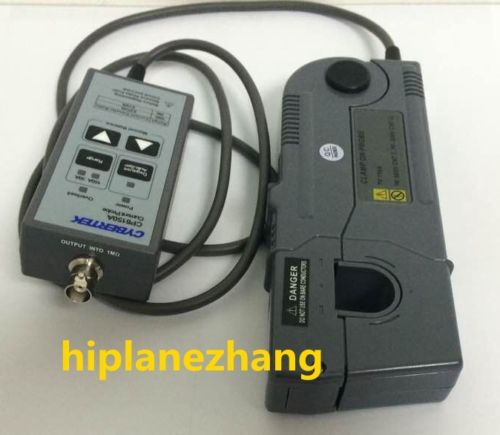

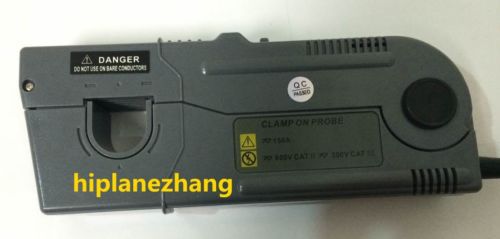

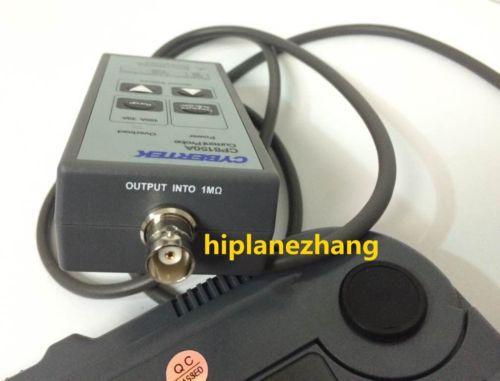

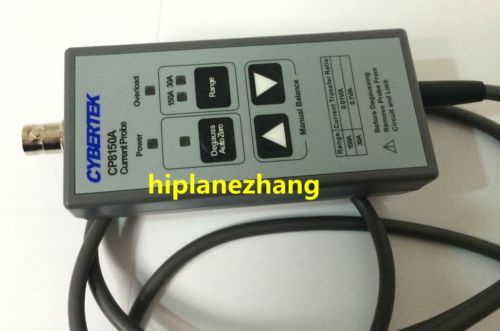

High Frequency Dc/ac Oscilloscope Current Probe 12mhz 150arms Peak 300a 10x 100x

US $2,375.00

  • Shenzhen, China
  • Mar 7th
Open on mobile:
QR code
CP8150A The CP8000A series uses a combination of  Hall effect and transformer technology which enables measurements to be made on DC, AC and impulse currents. It’s key features include highly accurate current measurements?wide bandwidth?easy current measurements?DC/AC measure?over-current protected and indication(buzzer and LED indicator)?double ranges selection?low current measurements?degauss and auto zero function. CP8150A has a 12 MHz bandwidth and is designed to measure continuous currents up to 150 Amp. Key features • Highly accurate current measurements • Easy current measurements • Wide bandwidth • DC/AC measure • Over-current protected Application ?  switching power supply ?  LED lighting design ?  Semiconductor Devices design ?  Inverter/ transformer design ?  electronic ballast design ?  engine driven design ?  electric vehicle design   Parameter CP8150A BW(-3dB) DC-12MHz(see Fig.4) Rise time 29ns or less Continuous maximum input range 150Arms (Frequency derating see  Fig. 5) Max peak current value 300A Range 30A 10X 150A 100X Over 30A >=30A 150A >=300A Current Transfer Ratio 30A 0.1V/A 150A 0.01V/A Lowest Measurable Current 30A 5mA 150A 50mA Amplitude accuracy (DC,45-66Hz ) 30A ±1%±10mA 150A ±1%±100mA Input impedance see Fig.6 Power Supply DC 12V/1.2A Safety standards IEC61010-1: 2010   IEC61010-2-32: 2012 EN61010-1: 2010   EN61010-2-32: 2012 Max. rated voltage to earth 600V CATII 300V CATIII
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Model CP8150A
Country/Region of Manufacture China
MPN CP8150A
