High Power Thyristor Tl2-200-8 200a 800v - Brand-new

US $22.00

  • Sofia, Sofia city, Bulgaria
  • Jun 9th
Open on mobile:
QR code

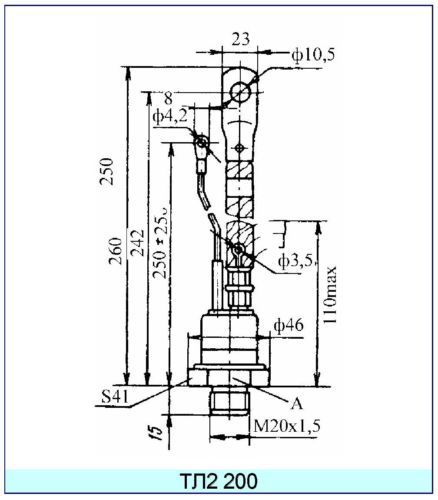

TL2-200-8 (cyrillic ??2-200-8) silicone diffused type p-n-p-n avalanche thyristor with enhanced overvoltage endurance. Designed for use in DC and AC circuits with frequency up to 500 Hz of electric power converters and other high power units like electric actuators for industry and transport, fully and semi controlled rectifying bridges, AC regulators etc. Produced in cermet bolt construction body with M20 threaded Anode pin and flexible Cathode and Gate terminals. Made in USSR. 2 units available in stock. Brand-new and unused. Price is per 1 unit. Specifications: Maximum off-state repetitive pulse forward voltage VDRM:  800 V Maximum repetitive pulse reverse voltage VRRM: 1000 V Maximum on-state average current IT(AV): 200 A Maximum on-state RMS current IT(RMS): 314 A Maximum on-state non-repetitive pulse surge current ITSM:   4000 A Critical rate of rise of on-state current (di/dt)crit: 40 A/?s Junction operating temperature TJmin - TJmax:   -50 °C - 140 °C Body operating temperature TBmin - TBmax:   -50 °C - 85 °C Storage temperature Tstgmin - Tstgmax:   -50 °C - 60 °C Forward on-state voltage drop VTM:
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
MPN ??2-200-8 (TL2-200-8)
Country/Region of Manufacture Russian Federation
