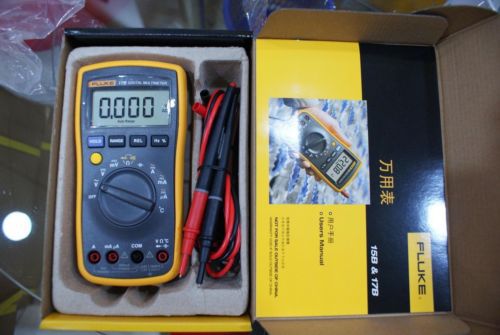

HIGH QUALITY ! FLUKE F17B+ 17B+ Digital Multimeter Meter with 12 months Warranty, US $60.00 – Picture 0

HIGH QUALITY ! FLUKE F17B+ 17B+ Digital Multimeter Meter with 12 months Warranty, US $60.00 – Picture 1

High Quality ! Fluke F17b+ 17b+ Digital Multimeter Meter With 12 Months Warranty

US $60.00

West Islip, New York, United States
Mar 5th

Open on mobile:
QR code

> FLUKE 17B Digital Multimeter Meter Specification Maximum Voltage between any Terminal and Earth Ground: 1000 V Fuse Protection for mA ?A inputs: 500 mA, 1000 V FAST, Min. Interrupt Rating 20,000 A Fuse Protection for A input: 10 A, 1000 V FAST, Min. Interrupt Rating 20,000 A Display: Digital: 4000 count updates 3/sec Operating Altitude: 0 to 2000 meters Temperature Coefficient: 0.1 X (specified accuracy)/ °C (<18 °C or >28 °C) Temperature: Operating: 0 °C to 40 °C, Storage: -30 °C to 60 °C indefinitely (to -40 °C for 100 hours) Electromagnetic Compatibility: Complies with FCC Part 15, Class B, IEC 61326, 3 V/m, performance criterion B Rated Transient Over-voltage: 4 kV (1.2 x 50 ?s) Peak for measurement Categories I, II, and III. Relative Humidity: Non-condensing < 10 °C ; 90% from 10 °C to 30 °C; 75% from 30 °C to 40 °C Relative Humidity, 40 M? Range: 80% from 10 °C to 30 °C; 70% from 30 °C to 40 °C Battery Type: 2 X AA, NEDA 15A, IEC LR6 Battery Life: Alkaline: 500 Hours Size (H x W x L): 7 " X 3.5" X 2" (with holster) Weight: 15 once (less than 1 LB) Certifications: CMC, CE Safety Compliance: IEC 61010-1, 2000 CAT I 1000 V, CAT II 600 V, and CAT III 300 V over voltage standards Over-voltage installation categories per IEC 61010-1, 2000: The Meter is designed to protect against transients in these categories: CAT I.From high-voltage low-energy sources, e.g., electronic circuits or a copy machine. CAT II. From equipment supplied from the fixed installation, e.g., Televisions, PCs, portable tools and household appliances. CAT III. From equipment in fixed equipment installations, e.g., installation panels, feeders and short branch circuits, and lighting systems in large buildings. Function Range Resolution Accuracy Model 15B Model 17B AC Volts (40 to 500 Hz) v 400.0 mV 1 0.1 mV 3.0 % + 3 3.0 % + 3 4.000 V 40.00 V 400.0 V 1000 V 0.001 V 0.01 V 0.1 V 1 V 1.0 % + 3 1.0 % + 3 DC Millivolts M 400.0 mV 0.1 mV 1.0 % + 10 1.0 % + 10 DC Volts V 4.000 V 40.00 V 400.0 V 1000 V 0.001 V 0.01 V 0.1 V 1 V 0.5 % + 3 0.5 % + 3 Diode Test 1.000 V 0.001 V 10 % Temperature 3 °C (K-type thermocouple) 50 °C to 400 °C 0 °Cto 50 °C -55 °C to 0 °C 0.1 °C NA 2 % + 1 °C ± 2 °C 9 % + 2 °C Resistance (Ohms) 400.0 ?4.000 k?40.00 k?400.0 k?4.000 M?40.00 M? 0.1 ?0.001 k?0.01 k?0.1 k?0.001 M?0.01 M? 0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5 % + 3 0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5 % + 3 Capacitance 4 c 50.00 nF 500.0 nF 5.000 µF 50.00 µF 100.0 µF 0.01 nF 0.1 nF 0.001 µF 0.01 µF 0.1 µF 2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 Frequency Hz (10 Hz – 100 kHz) 50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz 0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz NA 0.1 % + 3 Duty Cycle 0.1 % to 99.9 % 0.1% NA 1% typical 5 (1). Manual Range only (2). Diode test open circuit test voltage is 1.1 V to 1.6 V and short circuit current is < 0.6 mA (typical). (3). Temperature specifications do not include thermocouple errors. After inserting the thermocouple plug into the meter, allow several minutes for thermal stabilization. (4). Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range). For the 17B, errors can be reduced by using the relative feature. (5). For values between 10% and 90% duty cycle at 50 Hz. F unction Range Resolution Accuracy Model 15B Model 17B AC Current (40 to 200 Hz) 400.0 µA 0.1 µA 1.5 % + 3 1.5 % + 3 4000 µA 1 µA AC Current (40 to 200 Hz) 40.00 mA 0.01 mA 1.5 % + 3 1.5 % + 3 400.0 mA 0.1 mA AC Current (40 to 200 Hz) 4.000 A6 10.00 A 0.01 A 0.01 A 1.5 % + 3 1.5 % + 3 DC Current 400.0 µA 0.1 µA 1.5 % + 3 1.5 % + 3 4000 µA 1 µA DC Current 40.00 mA 0.01 mA 1.5 % + 3 1.5 % + 3 400.0 mA 0.1 mA DC Current 4.000 A6 0.01 A 1.5 % + 3 1.5 % + 3 10.00 A 0.01 A Function Overload Protection Input Impedance (Nominal) Common Mode Rejection Ratio Normal Mode Rejection AC Volts v 1000 V >10 M? <100 pF >60 dB at dc, 50 or 60 Hz _ DC Volts V 1000 V >10 M? <100 pF >100 dB at dc, 50 or 60 Hz >45 dB at 50 or 60 Hz Shipping 1. To serve buyers better, we will provide you for free with a tracking number of Registered International Standard Shipping, not Express. The shipping company will charge us additional fees for it. Please view the delivery time in the shipping terms carefully. If you would like express, please contact us on ebay. 2. Item(s) will be shipped out within 1-2 working days (expect china public holiday and Weekend) after receipt of a verified payment. 3. All items are directly shipped out as “spare parts , Sample” by Singapore Post Office (http://www.singpost.com/index.php), and Hong Kong Post Office (http://app3.hongkongpost.com/CGI/mt/enquiry.jsp) . It normally takes approximately 10-25 working days (not including holiday, Saturday and Sunday) to arrive. some areas may take longer (20-45days),such as: Italy, Spain ,Russian Federation, Brazil ,Chile,Argentina, Thailand local custom clearance factors check. We will send the tracking number to you immediately after we sent out your items. We are not responsible for any loss of the mail if the item is not insured. we strongly suggest buyers who from these mentions country would better to choose $2 of insurance in case of getting lost. Country Delivery Time Working Days (not including holiday) 5-7 8-11 12-14 15-19 20-22 >22 Working Days+ Saturday + Sunday 5-9 10-15 16-20 21-25 26-30 >31 United States Rate (item arrived ) 5.1% 50.1% 29.6% 10.5% 4.7% Refund United Kingdom Rate (item arrived ) 9.9% 63.2% 19.1% 3.4% 4.4% Refund Australia Rate (item arrived ) 21.4% 50.0% 14.3% 7.2% 7.1% Refund France Rate (item arrived ) 10.5% 28.6% 43.8% 10.1% 7.0% Refund Germany Rate (item arrived ) 11.1% 22.2% 30.3% 20.9% 15.5% Refund Canada Rate (item arrived ) 0.0% 47.1% 31.4% 17.6% 3.9% Refund Spain Rate (item arrived ) 3.5% 25% 47.9% 12.9% 10.7% Refund (Other countries or remote areas may take longer.) 4. The information is provided by the shipping company. Note that delivery time may vary, particularly during strict customs and peak periods. 5. We only ship the item(s) to the address according to EBAY information. Buyer should make sure their shipping information (include door no and shipping address) in EBAY platform is correct. We are not responsible for any loss of the mail if the shipping information is incorrect. 6. Please contact us in the period of 28 to 35 days from dispatched if you don't receive the item(s). Otherwise, we would assume that the item(s) has been received. 7. International Buyers – Please Note: l Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. l Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying. Payment 1. We reserve all right to refuse high bidders having negative, hidden feedback, all non-registered bidders or bidder with unpaid history. 2. We accept PAYPAL PAYMENT ONLY ! 3. If you paid by e-cheque via Paypal, we will send the item(s) to you after the payment was cleared. It normally takes 5-7 business days for payment processing. 4. Payment is expected to be completed within 3 days after auction closed. Unpaid auction will be forfeited and eBay may suspend unpaid buyer account. Return Plicy 1. You have 14 days to contact us and 20 days to return it from the date it was received. If this item is in your possession more than 20 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. 2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your eBay ID. 3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from eBay. OR, you may choose to have a replacement. 4. Return shipping is to be paid by the Buyer. Feedback 1. We hope to received you 5 star positive feedback when you get the item. 2. We have always been trying to provide the best service and reliable products for every customer. Please contact us to resolve any issue before leaving negative feedback.we will assist you in any way possible and aim to answer all emails . 3. I believe that communication is the best way to resolve problem. Thank you !! Contact us If you have any question, please you contact us on ebay.

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Brand

Fluke
