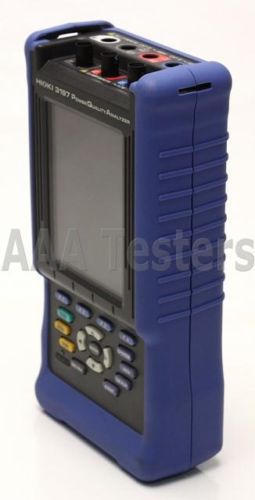

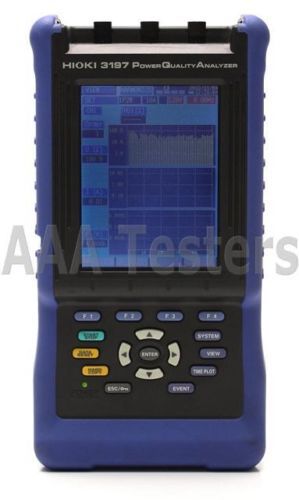

Hioki 3197 Three Phase Handheld Power Quality Analyzer Meter

US $1,995.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

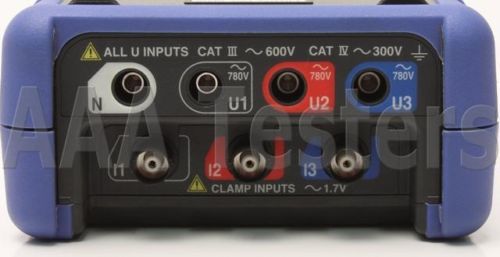

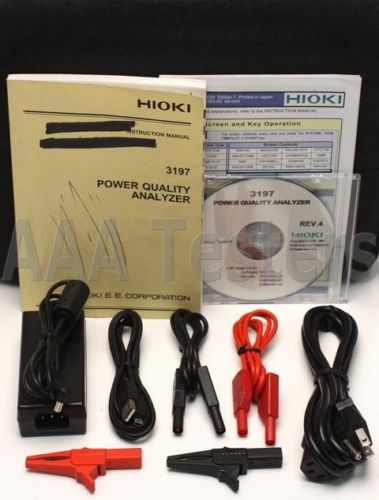

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: Hioki 3197 Power Quality Analyzer (BC# 11745) MC Flexible Test Leads (1 Red, 1 Black) MC Alligator Clips (1 Red, 1 Black) Hioki 3197 Measurement Guide AC Adapter / Charger Power Cord USB PC Interface Cable Hioki 3197 Application Software Hard Copy User Manual Carrying Case BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Hioki 3197 Power Quality Analyzer Three measurement channels support various voltage, current and power measurements of single-phase 2-wire, single-phase 3-wire, three-phase 3-wire and three-phase 4-wire circuits. With three-phase 4-wire lines, the neutral line current is determined by internal processing. Includes Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty Overview POWER QUALITY ANALYZER 3197 is a compact, easy-to-operate, and affordable power quality measurement instrument. It has streamlined the functions of POWER QUALITY ANALYZER 3196, one of the power quality measurement instruments recognized as a standard worldwide. While the basic power anomaly measurement capabilities are retained, the smaller size and simpler measurement operations ensure that anyone can handle it easily. Also, in response to the recently growing interest in power management and energy saving measures, power measurement functions have been enhanced and display screen capabilities have been added for time series graphs of voltage, current and power, as well as energy consumption and demand graph displays. These features are ideally suited to the particular measurements required when a power anomaly occurs, and for applications involving power management and energy saving measures. Features Measure various power systems around the world Three measurement channels support various voltage, current and power measurements of single-phase 2-wire, single-phase 3-wire, three-phase 3-wire and three-phase 4-wire circuits. With three-phase 4-wire lines, the neutral line current is determined by internal processing. Vector multi meter function to detect incorrect probe connections for power measurement A probe connection diagram, detected phases (vector scope) and measured voltage and current values are displayed together on one screen. A correct vector diagram is also displayed when connecting test sensors to help users confirm that connections are made properly for correct measurement. Bypass complex settings using the QuickSet feature The handy QuickSet feature makes the appropriate settings required for the probe connections and clamp sensor current to be used. Settings such as the threshold values to be used for capturing power anomalies are made automatically, so you can start measuring immediately. Automatic recording data compression function enables reliable, long-term measurements Initially, recording occurs at one-second intervals, but as internal memory starts to fill up, the recording interval is automatically extended up to the maximum of one hour. With this method, both short- and long-term recordings can fit into available storage. This provides for the longest possible continuous measurement period of about 125 days. Compatible to a variety of clamp-on current sensors and current and power measurement methods In addition to HIOKI AC clamp-on current sensors, various other current sensors can be connected for measuring leakage currents as small as several milliamperes, and load currents up to 5000 amperes. Simultaneous measurement of multiple power quality parameters for power anomaly analysis To analyze power anomalies, measurement of multiple parameters may be necessary to determine precursors to an event and the occurrence of compound phenomena. Model 3197 supports such detailed analyses by simultaneously measuring and recording multiple power quality parameters. Measurable parameters include: transient overvoltage (impulse), voltage swell, voltage dip, instantaneous interruption, frequency, voltage, voltage waveform peak, current, current waveform peak, effective power, reactive power, apparent power, power factor, displacement power factor, voltage unbalance, harmonic voltage, harmonic current, harmonic power, fundamental voltage phase difference, fundamental current phase difference, voltage total harmonic distortion (THD-F), K factor, active power value, reactive power value, active power demand and reactive power demand Voltage anomaly precursors can be easily captured by a time series graph display of voltage effective value and fluctuation Various power quality parameter fluctuations are recorded and displayed as a time series graph, with maximum, average and minimum values calculated for every interval for recording and display. RMS voltage is calculated according to IEC standards and appears in the time series graph showing voltage fluctuations and event detection of voltage swell, dip and interruption. Measure demand and energy consumption as required for power management and energy saving calculations Demand-polarity-related parameters such as power consumption and generation, lag and lead and energy consumption can be measured and recorded. You can also confirm demand and energy consumption on the time series graph, allowing the easy viewing of shifts in power consumption right at the worksite. Analyze power faults with defined event detection function When a specified threshold value is exceeded during measurement, the event is detected and recorded. Detected events can be analyzed according to the event number, detailed numerical value data and type of waveform anomaly. Events can be defined for voltage swell, dip (instantaneous drop), interruption, inrush current or transient overvoltage. Easily measure for inrush or starting currents that trip breakers Monitor for motor starting current and breaker trip current over a thirty second window, and record then display the RMS current as a graph. Large internal memory and long backup battery Measurement data is recorded in the 4 MB internal memory. It lithium backup battery lasts about ten years, so data is preserved even when power is turned off. Built-in 4.7-inch color LCD offers a crystal clear view of numerical values, waveforms and graphs Three selectable languages can be selected for the display screens and comprehensive operator help messages more languages to be added in the future Select from five color configurations (corresponding to input connector colors) for suiting the lines to be measured Built-in rechargeable battery pack provides up to six hours of continuous measurement The rechargeable battery pack and AC adapter make for dual power supply method and are supplied as standard equipment. Battery operation provides six hours of stand-alone continuous measurement. Hand-held design convenient in catering to portability and ease-of-use Designed to be held in one hand and weighing just 1.2 kg, the appearance is harmonized with a durable rubber grip for single-handed operation. USB 2.0 interface and bundled special-purpose analysis software program for easy data analysis on a PCRemote instrument operation, data transfer and analysis can be conducted on a computer by connecting the supplied USB cable and using the bundled data download and analysis program. Applications Power delivery businesses that supply and sell electricity (such as power generation companies): Maintenance and management of power supply quality, and cause analysis when power supply faults occur. Power system facilities manufacturers of transformer equipment, electrical safety organizations, and electrical contractors: Evaluation and maintenance of power facilities, periodic maintenance and power quality fault analysis during system operation. Large electrical facilities Power supply fault evaluation and analysis for semiconductor manufacturing equipment, vending machines, machine tools, OA equipment, UPS equipment, air conditioners and welders. Maintenance, inspection power management and energy saving at factories All types of power supply quality maintenance and fault analysis, such as power line maintenance and management at factories, maintenance and management of production equipment, energy conservation for ESCO businesses, building maintenance, maintenance and management of treatment equipment at clinics and hospitals, maintenance and management of communications equipment. SPECIFICATIONS Measurement line type Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire Voltage range 600.0 V AC Current ranges 500.0 mA to 5.000 kA AC (depends on current sensor in use) Power ranges 300.0 W to 9.00 MW (depends on combination of current range and line type) Basic accuracy Voltage: ±0.3 % rdg. ±0.2 % f.s. Current: ±0.3 % rdg. ±0.2 % f.s. + current sensor accuracy Active power: ±0.3 % rdg. ±0.2 % f.s. + current sensor accuracy (at power factor=1) Measurement items RMS Voltage and Current (200 ms calculation) Voltage (1/2) RMS: one cycle calculation refreshed every half cycle. Current (1/2) RMS: half-cycle calculation. Frequency Active Power/ Reactive Power/ Apparent Power/ Power Factor/ Displacement Power Factor/ Active or Reactive Energy Consumption Demand (Active or Reactive power) Up to 50th Harmonic Analysis (Time series measurement or recording is not capable) Peak Voltage and Current Total harmonic voltage distortion ratio Voltage Unbalance Factor K Factor (Time series recording is not capable) Total harmonic current distortion ratio (Time series recording is not capable) Event Detection Voltage Swells (Rise), Voltage Dips (Drop), Interruptions: RMS value detected using voltage (1/2) measured every half cycle Inrush Current: RMS value detected using current (1/2) every half cycle Transient Overvoltage: 50 Vrms or more detection, 10 to 100 kHz Timer: Detect events at preset intervals Manual: Detect events when keys are pressed Number of Recordable Events 50 event waveforms, 20 event voltage fluctuation graphs, 1 inrush current graph, 1000 event counts Interface USB 2.0 (Communication to the PC) Display 4.7-inch color STN LCD Power supply AC ADAPTER 9418-15 (100 - 240V, 50/60Hz), BATTERY PACK 9459, Continuous use 6 hours (LCD Back-light auto-OFF 5min.), 23VA max. Dimensions, mass 128 mm (5.04 in) W x 246 mm (9.69 in) H x 63 mm (2.48 in) D, 1.2 kg (42.3 oz) (with Battery pack) Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Powers Your Online Marketplace Make order management a breeze with Kyozou eBay Order Management Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	HIOKI
Model	3197
