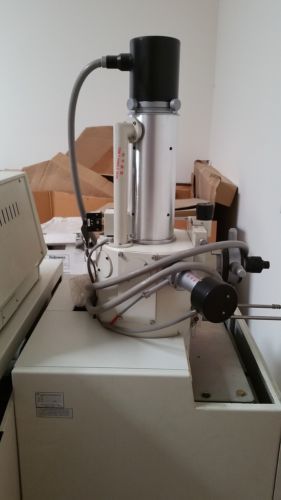

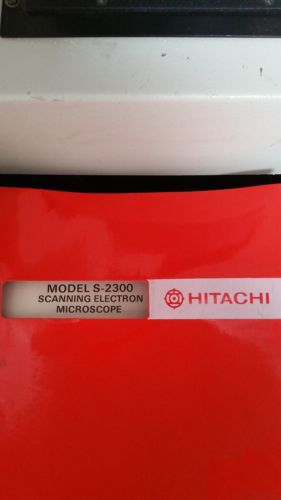

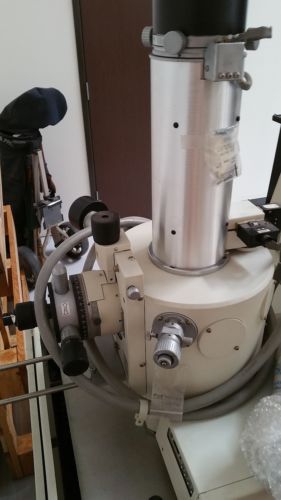

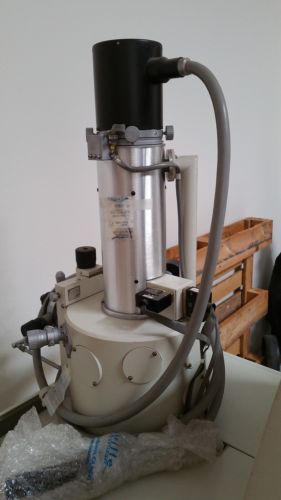

Hitachi S-2300 SEM Scanning Electron Microscope, US $8,400.00 – Picture 0

Hitachi S-2300 SEM Scanning Electron Microscope, US $8,400.00 – Picture 1

Hitachi S-2300 SEM Scanning Electron Microscope, US $8,400.00 – Picture 2

Hitachi S-2300 SEM Scanning Electron Microscope, US $8,400.00 – Picture 3

Hitachi S-2300 SEM Scanning Electron Microscope, US $8,400.00 – Picture 4

Hitachi S-2300 SEM Scanning Electron Microscope, US $8,400.00 – Picture 5

Hitachi S-2300 SEM Scanning Electron Microscope, US $8,400.00 – Picture 6

Hitachi S-2300 Sem Scanning Electron Microscope

US $8,400.00

Anaheim, California, United States
Jun 9th

Open on mobile:
QR code

This unit was functional when taken out of service in 2014 when its operator retired. The operator claimed that there is an upgrade available to convert this to digital image acquisition. Original Hitachi SEM S-2300 Specification and Key Features: Resolution: 4.5 nm (45 A ) guaranteed Magnification range: 20 ~ 200,000x Electron optical system: Filament : Pre-centered hairpin type filament Bias: Auto-bias system Accelerating voltage : 0.5 ~ 3 kV (0.1 kV STEP)4, 5, 6, 7, 8, 10,15,20,25kV Lens system: 3-lens reduction system Stigmator: 8-pole electromagnetic system (X, Y) Deflection coil : 2-stage electromagnetic deflection system Objective lens aperture: Movable aperture with 0.1. 0.2, 0.3, 0.4 mm dia. openings Specimen stage Standard stage X-traverse : 0 ~ 80 mm (continuous) Y -traverse: 0- 40 mm (continuous) Tilt angle: -20 ~ + 90° (continuous) Rotation angle: 360° (continuous) Z-traverse: 5-35 mm (working distance WD, continuous) Specimen size: 150 mm dia. max Specimen exchange: air introduction Super eucentric stage X-traverse: 0-32 mm (continuous) Y -traverse : 0 ~ 32 mm (continuous) Tilt angle: -20 ~ + 90° (continuous) Rotation angle:360° (continuous) Z-traverse 5-35 mm (working distance WD, continuous) Specimen size : 125 mm dia max. Specimen exchange : air introduction Display unit CRT: (afterglow type 9 inch) X 1: Conforms to EIAJ standard Scanning speed (Raster scan, Two values correspond to 50 and 60-Hz regions respectively) X period (msec) 0.064 1 4 20/16.7 40/33.3 0.5 Photo1 : 20/16.7 Photo2: 40/33.3 Photo3: 80/66.7 Y period (sec) 0.0167 0.5 2 20/16.7 40/33.3 0.16 Photo1: 40/33.3 Photo2: 80/66.7 Photo3: 160/133.3 No. of scan lines 525 (interlace) 500 500 1000 1000 250 Photo1: 2000 Photo2: 2000 Photos: 2000 Electrical image shift : ±20 um (X, Y); at 25 kV and WD 15 mm Image mode Auto focus Aperture alignment Auto stigmator Image shift Auto brightness/contrast control Twin photo Data display Gamma control Auto focus alignment Polarity reversion Signal monitor Focus memory Waveform monitor Evacuating system Type: Automatic valve control Vacuum gauge: Pirani gauge Ultimate vacuum : 1 X 10-5 Torr Vacuum pump : Oil diffusion pump 400 l/sec x 1 Oil rotary pump: 160 l/min x 1 Evacuating time: About 3 min Safety device: Safety devices for water supply interruption and vacuum deterioration are provided. Power supply: 100 V AC ± 10%, 50/60 Hz, 2 kVA, Power consumption 1.8 kVA Water facilities: Flow rate : 1 – 1.5 l/min (0.26- 0.4 gpm) Pressure : 0.5- 2 kg/cm2 (7- 29 psi),Use a reducing valve if water pressure fluctuates excessively. Temperature : 10- 20°C (50-68°F) Supply port: Chemical faucet of 10 mm dia. (x 1) (City water hose should be connectable. It is recommended to use a filter if water contains much mineral deposit.) Drainage: Natural drainage Ambient conditions Temperature : 15 ~ 30°C (59- 86°F) Humidity : Less than 70% RH Vibration : Less than 5 Hz, 3 ump-p Dimensions Main console: 600 (W) X 1000 (D) X 1520 (H) mm; 200 kg Display unit : 1100 (W) X 900 (D) X 1170 (H) mm; 180 kg Rotary pump : 200 (W) X 478 (D) X 293 (H) mm; 27 kg X 1 Others: 200(W)x 180(D)x 160(H)mm; 40kg Hitachi SEM S-2300 Standard Equipment: Main console 1 set Display unit 1 set Oil rotary pump 1 set Instruction manual 1 set Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Hitachi
Country/Region of Manufacture	Japan
Model	S-2300
MPN	Does Not Apply
