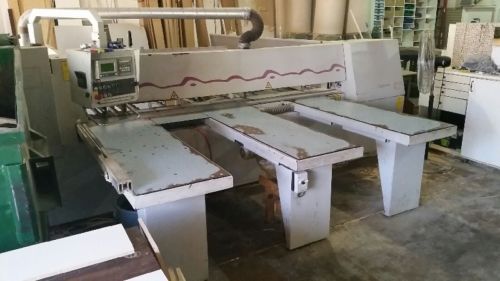

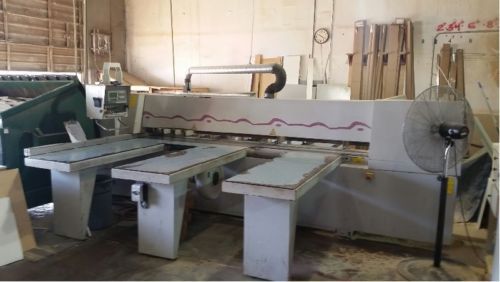

Homag Panel Saw Ch 03 Plus

US $7,000.00

Houston, Texas, United States
Feb 22nd

Open on mobile:
QR code

Cutting length 3,200 mm (126"), pusher stroke 126", cutting height 2" with 11-3/4" dia. blade; 7.5 HP main and 0.75 HP scoring motor, 4,550 RPM main & 5,100 RPM scoring blade. Equipped with: Saw carriage travel 20 - 105 FPM, return speed 105 FPM, powered by 0.75 HP motor; automatic carriage return (no programming), sensor indicates when the saw carriage is through the cut and blade retracts & carriage returns. Programmable pusher fence with (6) material grippers; feeds from 3.3 FPM slow forward to 46 FPM fast, 46 FPM return speed, powered by DC Servo motor on rack & pinion system; solid rear table supports. "HOMATIC" Controller with LCD display, user-friendly operating menu, operates in either inch or metric; data entry by keypad, stores up to (20) cutting patterns (programs) with up to (20) sizes each, repeatable (99) times. Complete with: Full length crosscut fence; (3) air floatation tables, (1) 23-1/2" x 69" in the crosscut area and (2) 23-1/2" x 69" in rip area. Includes: Safety curtain & safety bar cover cutting line w/saw blade, panels enclose rear saw table area. Follow THE LINK TO CHECK OUT THE SAW IN ACTION!! http://youtu.be/xJ9a83uDuLw The Saw has works great for us and has been very reliable. As of 12/5, the saw is still being used and operating every day. Cuts accurate and clean. We are upgrading to a saw that is able to support our increasing volume. Sell is, as is, Where is BUYER IS RESPONSIBLE FOR SCHEDULING AND PAYING FOR FREIGHT SERVICES! Payment is due prior to shipping.

“This saw was in full operation prior to take down. With increase in demand, we had to upgrade to a bigger and faster saw. This saw was well maintained and used daily. There is fading paint as noted in the pictures, but fully operation. FOLLOW THE YOUTUBE LINK BELOW TO SEE IT IN ACTION”
