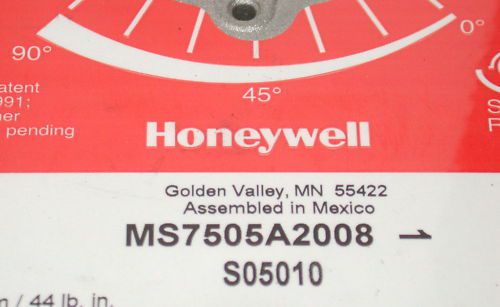

Honeywell Spring Return Direct Actuator #ms7505a2008

US $149.00

  • Rochester, New York, United States
  • Jan 29th
Open on mobile:
QR code

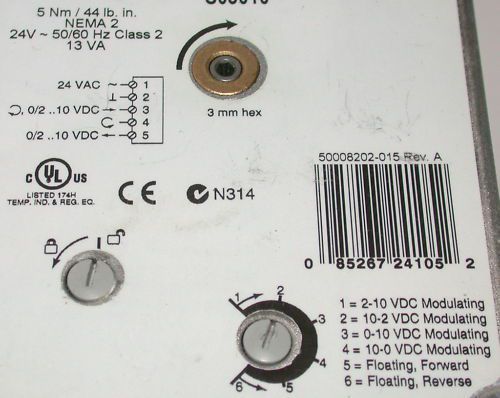

HONEYWELL SPRING RETURN DIRECT ACTUATOR #MS7505A2008     You are bidding on a Very Nice Honeywell Spring Return Direct Coupled General Purpose Actuator, Model #MS7505A2008. Retail cost of more than $300.00. This is a very nice unit in like new condition and it is fully guaranteed. Actuator Type Damper Actuator Type Valve Application Type HVAC Torque/Force (lb-in., lbf) 44 lb-in. Torque/Force (Nm, N) 5 Nm Fail Safe Mode Spring Return Control Signal Floating Control Signal (0)2-10 Vdc (4-20 mA w/500 ohm resistor) Supply Voltage 24 Vac ±20% Number of Internal Auxiliary Switch 0 External Auxiliary Switches Available Yes, SW2-US Shaft Adapter Type Self-centering clamping Feedback 2-10 Vdc (max. output: ±1.0 mA) Manual operation Manual crank Spring Return Torque/Force (lb-in., lbf) 44 lb-in. Spring Return Torque/Force (Nm, N) 5 Nm Maximum Stall Torque/Force (lb-in., lbf) 75 lb-in. Maximum Stall Torque/Force (Nm, N) 8.5 Nm Mounting Direct Coupled Frequency 60 Hz Frequency 50 Hz Rotational Stroke 95 ±3 degrees Rotational Stroke Adjustment Mechanically limited 5 degree increments Rotation to Open By switch Spring Return Direction By orientation Timing, Maximum Spring Return (sec) 20 sec Timing, Nominal Driving @ 60 Hz (sec) 90 sec Dimensions (in.) 9.72 in high x 3.94 in wide x 2.95 in deep Dimensions (mm) 247 mm high x 100 mm wide x 75 mm deep Weight (lb) 6 lb Weight (kg) 2.72 kg Compatible Damper Shafts (in.) 3/8 to 1.06 round or 3/8 to 11/16 square Compatible Damper Shafts (mm) 10 to 27 round or 10 to 18 square For more information: http://customer-ap.honeywell.com/honeywell/ProductInfo.aspx/M7285A1003     Very competitive Shipping rates for our always welcomed International bidders Shipping and handling is $9.90 within the Continental USA. - We always combine shipping to give you the lowest cost. -     Contact us with any questions at 1-800-826-3433 (9-5pm Est) Please visit our other listings on eBay!
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Model MS7505A2008
TYPE Actuator
Brand HONEYWELL
