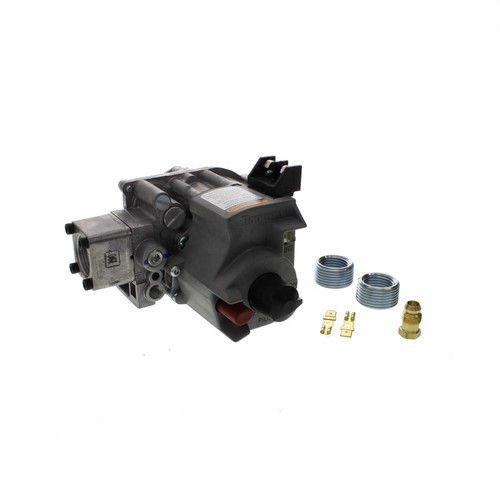

HONEYWELL VR8300C4506 STEP DUAL STANDING PILOT GAS VALVE OPENING *NEW IN BOX*, US $99.99 – Picture 0

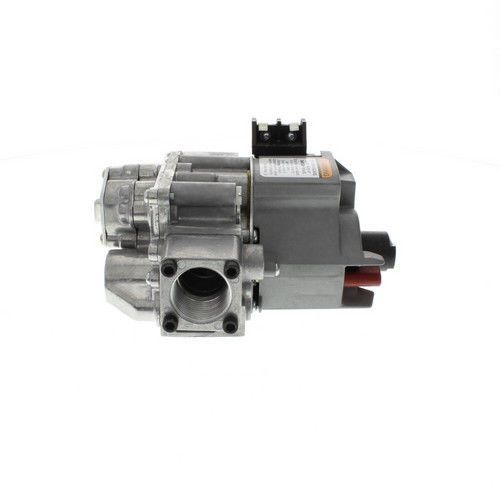

HONEYWELL VR8300C4506 STEP DUAL STANDING PILOT GAS VALVE OPENING *NEW IN BOX*, US $99.99 – Picture 1

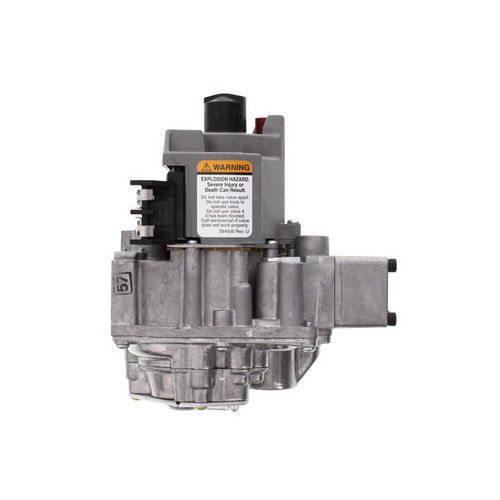

HONEYWELL VR8300C4506 STEP DUAL STANDING PILOT GAS VALVE OPENING *NEW IN BOX*, US $99.99 – Picture 2

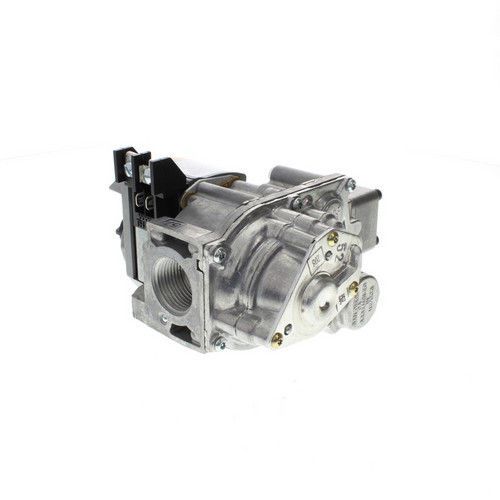

HONEYWELL VR8300C4506 STEP DUAL STANDING PILOT GAS VALVE OPENING *NEW IN BOX*, US $99.99 – Picture 3

HONEYWELL VR8300C4506 STEP DUAL STANDING PILOT GAS VALVE OPENING *NEW IN BOX*, US $99.99 – Picture 4

Honeywell Vr8300c4506 Step Dual Standing Pilot Gas Valve Opening new In Box

US $99.99

Silverthorne, Colorado, United States
Jan 29th

Open on mobile:
QR code

Description for Honeywell VR8300C4506 24 Vac Dual Standing Pilot Gas Valve with 3/4 in. x 3/4 in. inlet\outlet, step opening and Full Rate: 3.5 in. wc; Step Setting: 0.9 in. wc pressure regulator setting Features Combination gas control for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh. Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment. Compact size. Provide two automatic valves. Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends. Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted. Meet codes requiring dual safety shutoff. Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves. LITE-RITE (OFF-PILOT-ON) lighting sequence. All adjustments, wiring connections and pilot outlet are accessible from top of control. Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure. Compatible with ECO connector. Product Specifications Type: Single Stage Ignition Type: Standing Pilot Type of Gas: Natural Inlet/Outlet Size (in.): 3/4 in. x 3/4 in. Body Pattern: Straight through with integral tapping; with flange Opening Characteristics (standard, step): Step Opening Capacity @ 1 in. p.d.: 200,000 BTU/hr; 30,000 BTU/hr minimum Pressure Ratings: 1/2 psi, or 3.5 kPa Pressure Regulator Setting(psi): Full Rate: 3.5 in. wc; Step Setting: 0.9 in. wc Pressure Regulator Setting(kPa): Full Rate: 0.87 kPa; Step Setting: 0.22 kPa Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing Pressure Tapping: 1/8 in. NPT with plug Electrical Connections: 1/4 in. quick-connect male terminals Electrical Ratings: 24 Vac Frequency: 60 Hz Anticipator Setting: 0.7 A Temperature Range: 0° to 175°F, or -18° to +79°C Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep Includes: Two 3/4 x 1/2 in. reducer bushings Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025006. Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025006. FREE SHIPPING!! Voltage close Voltage, or volts, is a measurement of the difference between two electric fields (in heating terms, the difference between the Earth's electrical field and the electricity running through your wires). Voltage close Voltage, or volts, is a measurement of the difference between two electric fields (in heating terms, the difference between the Earth's electrical field and the electricity running through your wires). Voltage close Voltage, or volts, is a measurement of the difference between two electric fields (in heating terms, the difference between the Earth's electrical field and the electricity running through your wires). Amperage close Amperage, or amps, refers to the amount of electricity flowing through the wires.
