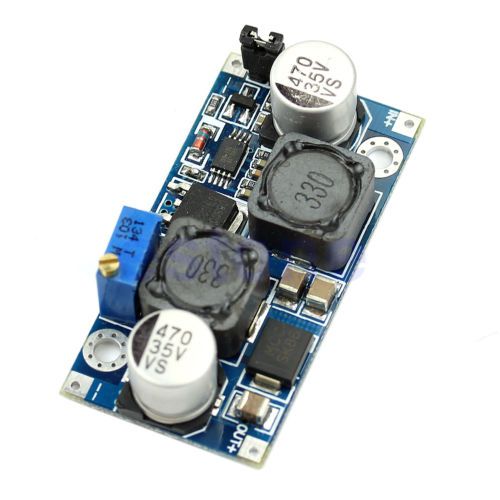

Hot 25w 3-15v To 0.5-30v Auto Dc-dc Solar Converter Regulator Boost Buck Module

US $4.10

Hong Kong, Hong Kong
Jan 29th

Open on mobile:
QR code

a¦aЂ“a°a?a»a?a§a 1/2 aЂ~a©a?aµ 6 New 25W 3-15V To 0.5-30V Auto DC-DC Solar Converter Regulator Boost Buck Module Description: 100% brand new and high quality Quantity:1pc Weight:16 g Color: as picture show Features: *Modules nature: non-isolated Boost Buck (SEPIC) *Rectification: Non-synchronous rectification *Input voltage: DC 3-15V *Output voltage: DC 0.5-30V *Input current: 3A (MAX) *Power: 25W (MAX) *Conversion efficiency: 95% (MAX) *Switching frequency: 150KHz *Output ripple: 40mV (max) *Load regulation: ± 0.5% *Voltage regulation: ± 2.5% *Operating Temperature: -40 ° C to +85 ° C *Dimension: 48mm x 23mm x 14 mm/1.89"x0.91"x0.55"(inch) (approx) *Output short circuit protection: Yes.( If short circuit, the output will be 0, until exclude short-circuit) Typical output, do not need heatsink (reference): Input 12V----Output 12V/2A; 24W Input 12V----Output 5V/3A; 15W Input 12V----Output 13.8V/1.8A; 25W Input 5V----Output 3.3V/3A; 9.9W Product features: *This module using production quality control chip, external ultra low on resistance MOSFET, ultra-high efficiency (maximum 95%), no radiation can reach 25W. *This module uses low ESR original Sanyo filter capacitor, at the same time after class to add one level LC filter unit, can make the ripple voltage as low as 40mV, can be used in most occasions! The scope of application: *The battery voltage regulator can 12V battery (10-14V) output voltage in 12V. *Solar charging voltage can solar battery voltage fluctuation stable, and can give the battery charge battery, avoid overshoot. *Supply your electronic equipment, ultra wide pressure rise step-down design, wide range of application of voltage. *System level power supply, ultra wide pressure rise step-down design, wide range of application of voltage. Use / Note: *This module is automatically lifting pressure module is adjustable, can adjust the module above the blue adjustable resistance to change the output voltage. *Module indicated IN- (negative input), IN+ (positive input), OUT- (negative output), OUT+ (output) must be correctly connected, otherwise may cause module damage. *Module with short circuit protection function, if the output short circuit, the system will enable the output lock 0, eliminate the short, re power to output again. Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes: 1pc 3-15V To 0.5-30V Auto DC-DC Solar Converter Regulator Boost Buck Module. Payment: We accept payment through Paypal ONLY. If you do not have Paypal account, please registered with (http://www.paypal.com) Payment must be received within 5 days after auctions ended. Please do not bid if you are not intending to buy. Unpaid dispute will be filed to ebay for the non payable bidders. Shipping and handling:
