Hp 16702a Logic Analyzer With Hp 16741a And Hp 16534a Modules

US $1,000.00

  • San Jose, California, United States
  • Jan 29th
Open on mobile:
QR code

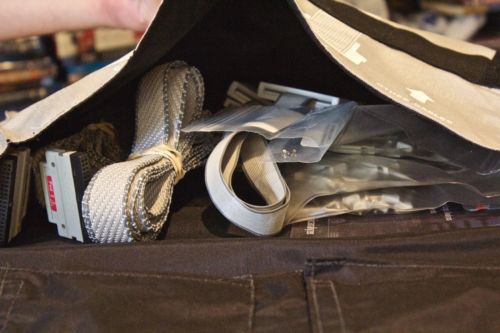

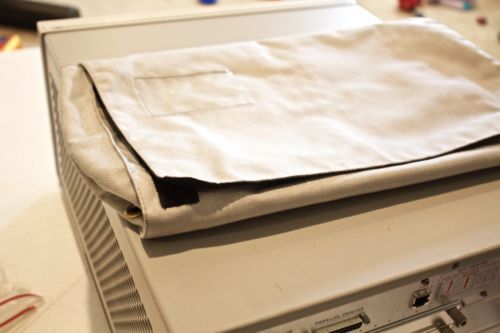

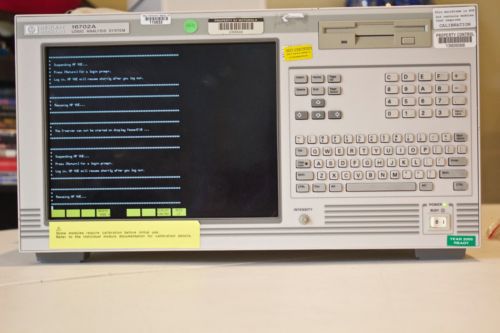

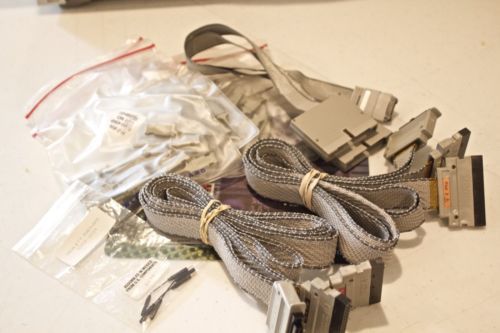

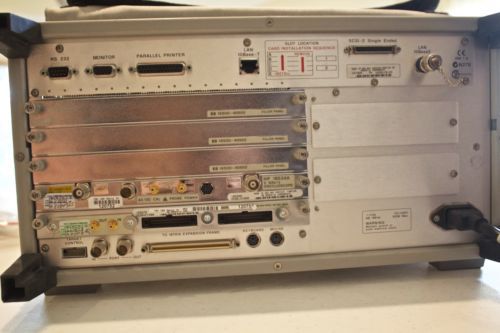

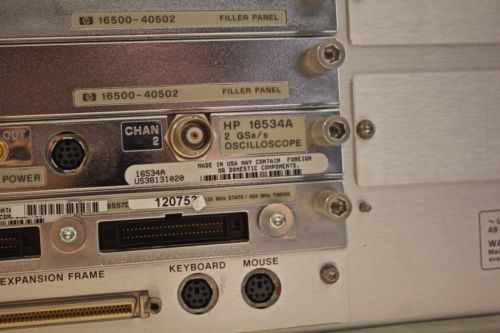

This is a HP 16702A logic analyzer mainframe, with an HP 16741A timing and state module and an HP 16534A 2GSa/s oscilloscope module installed.  It comes with a probe pouch and an assortment of probe cables and HP-branded mini clips. The unit appears to be functional, but appears to be configured to use an external display, which I do not have.  The boot sequence completes successfully, but the HP VUE software does not load, so I cannot test its functionality. The unit has minor cosmetic wear and light screen burn-in which is only visible during the early part of the boot sequence. HP / Agilent 16702A Logic Analyzer System Mainframe Modular expandability has always been the key to a logic analysis system's long-term value. Now a new generation of logic analysis systems, the Agilent 16900 Series, deliver what you've come to expect from the industry leader in logic analysis.  Slots For Measurement Modules: 5 (10 with HP 16701A Expansion Frame)  Number of Emulation Module Slots: 2 (4 with HP 16701A Expansion Frame)  Built-in Display: 800 x 600, 10.3"  External Monitor Supported: 1280 x 1024 std., 1600 x 1200 opt. 003, or remote via Web browser or X-windows  Power Requirements: 115/230 V, 48 to 66 Hz, 610 W max  Back Panel Connections: RS-232, Monitor, Parallel Port, LAN 10Base-T, SCSI-2 Single Ended, LAN 10Base2, five slots for Measurement Modules, two slots for Emulation Modules, Target Control Port, Port IN, Port OUT, Expansion Frame cable connector, keyboard, mouse  The HP 16741A logic analysis module offers industry-leading memory depth and performance for debugging complex digital designs.  200 MHz state speed  800 MHz timing speed  4 M memory depth  68-channels per module The HP 16534A offers the advantages of a full-featured, deep memory, digitizing oscilloscope integrated into your HP logic analysis system. 500 MHz Bandwidth 2 Gsa/s sampling 2 channels
Condition:
For parts or not working: An item that does not function as intended and is not fully operational. This includes items that are defective in ways that render them difficult to use, items that require service or repair, or items missing essential components. See the seller’s listing for full details. ...
Brand HP
Model 16702A
