Hp 8082a 250 Mhz Pulse Generator Powers Up

US $445.00

Hurricane, Utah, United States
Jan 29th

Open on mobile:
QR code

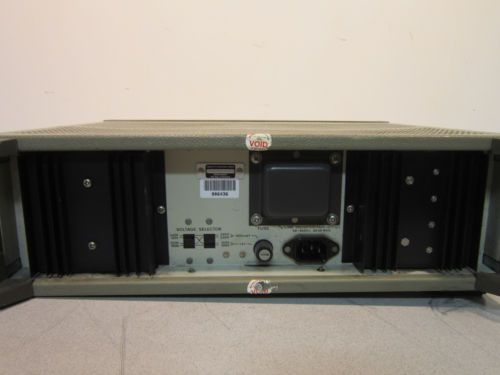

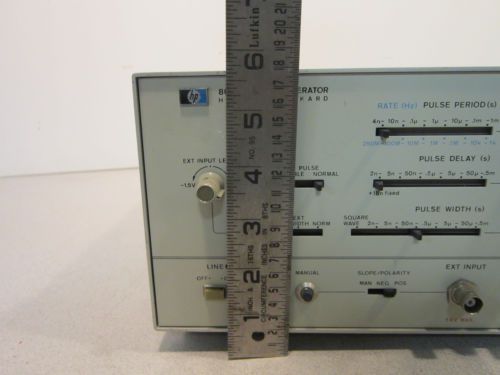

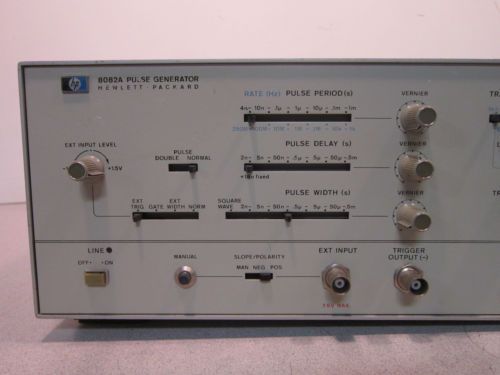

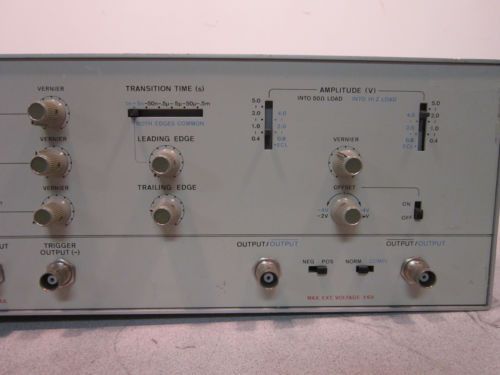

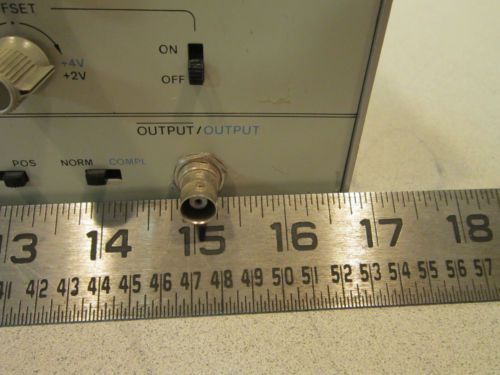

HP 8082A Pulse Generator Powers Up 250 MHz Pulse Generator Specifications Pulse Characteristics (50? source and load impedance) Transition times (10% to 90%) 1ns to 0.5ms in 6 ranges at amplitudes >1.8V and >4.5V respectively in the two upper output ranges. Minimum value may increase to 1.2ns at other amplitudes. Leading/trailing times are common on fastest range, and independently variable over 1:10 ratio on other ranges. Overshoot and ringing ± 10% of pulse amplitude may increase to ± 10% with amplitude vernier CCW. Preshoot ± 5% of pulse amplitude. Linearity Linearity abberation for both slopes ± 5% for transition times > 5ns Output Maximum amplitude is 5V from 50? into 50?. Maximum output voltage is ± 5V (amplitude + offset) Offset ±2V, into 50? DC-source impedance 50? + 5% - 10%. Reflection coefficient 5% in ECL setting, increasing to 15% in 5V range. Output protection Cannot be damaged by open or short circuits or application Attenuator Two separate three step-attenuators reduce the outputs to 1V. Vernier is common for both outputs and reduces the output to 0.4V minimum. A further position provides ECL-compatible outputs (-0.9V to -1.7V typ. open circuit). Timing Repetition rate 250MHz to 1kHz in 6 ranges Period jitter <0.1% of setting + 50ps Delay 2ns - 0.5ms in 6 ranges plus typ. 17ns fxd. with respect to trigger output. Duty cycle >50% Delay jitter <0.1% of setting + 50ps Double pulse up to 125MHz max. (simulates 250MHz) Pulse width 2.4ns to 0.5ms in 6 ranges Width jitter <0.1% of setting + 50ps Width duty cycle >50% Square wave Delay and double pulse are disabled, max. Rep. Rate 250MHz. Duty cycle is 50% ± 10% up to 100MHz, 50% ± 15% for > 100MHz Trigger output Negative going Square Wave (50% duty cycle typ.) >500mV from 50? into 50?. Internal 50? can be switched off by slide-switch on PC-board. Amplitude up to 1V into 50? up to 200MHz Trigger output protection Cannot be damaged by short circuit or application of external ±200mA External Operating Modes External Input Input impedance 50? ±10%. dc coupled. Maximum input ± 6V Trigger level Adjustable -1.5V to + 1.5V. Slope control Positive, negative or manual selectable. In the manual position all ext. functions can be controlled by push button. Button pushed in simulates an "on-signal." Sensitivity Sine-wave >200mV p-p pulses >200mV Repetition rate 0 to 250MHz. External-Controlled Modes External trigger There is approximately 7ns delay between the external input and the trigger output. Rep. rate is externally controlled (is triggered by external signal). Trigger output provides the pulse-shaped input signal. Synchronous gating Gating signal turns rep. rate generator on. Last pulse normal width even if gate ends during pulse. External width Output pulse width determined by width of drive input. Rep. rate and delay are disabled. Trigger output provides shaped input signal. General Operating temperature 0°C to 55°C. Power 100/120/220/240 Vrms; + 5%, -10%; 48-440Hz. 85VA max. Weight net, 7.9kg (17.44lb). Shipping 8.9kg (19.63 lb). Size 133 mm H x 426 W x 345mm D (5.2" x 16.75" x 13.6"). Subject to prior sale! Photos show everything that is included. For more information, or to contact us, please feel free to visit our ME page. 14 day Right of Return if not satisfied. Thanks for looking!!! Please visit our store for more great items! 11013 -
