Hp 8569b Spectrum Analyzer 10mhz - 22ghz To 80ghz With Opt 003 And Mixer Agilent

US $2,600.00

  • Ashkelon, default, Israel
  • Mar 2nd
Open on mobile:
QR code

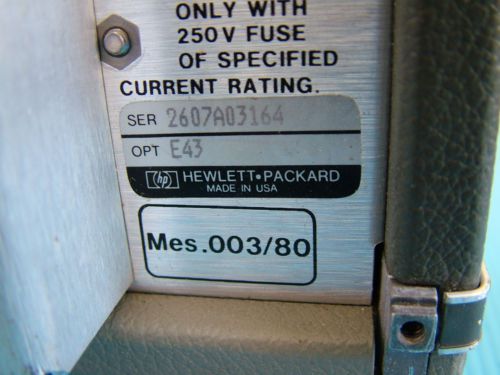

HP 8569B Spectrum Analyzer 10MHz - 22GHz to 80GHz With Opt 003 and Mixer Agilent Fully Tested. Good Working Condition.  Actual Photos and Videos.  Unit S/N 2607A03164. Including: 8569B Spectrum with Option 003 (High Power LO for External mixer) + Mixer 30 - 80GHz Guaranteed. SEE THE VIDEOS AT THE END OF PAGE! Ship with DHL + Tracking, less than 7 Days to USA \ EUROPE. ISRAEL: Need to add 18% VAT to price. PAYPAL ONLY.        THANK YOU. INV:R5    S1   S/N PATENTIX: 200417/418    Mixer S/N P5000444.in This Photo : 64.7GHz Signal using the included mixer ( note the signal sources not included ) unit direct input 10MHz to 22GHz ( int mix mode ) and  to drive external mixer (EXT) up to 115GHz ,   80GHz with the included WR28 Flange Mixer unit include opt 003 , so you dont need external amplifier, simply connect the mixer to the unit LO and IF ports.  LO PORT WITH OPTION 003 - NOTE THE 15DBM MARK ( only opt 003 have this strong output and marking )  Nice And Clean  There is 4 modes : zero span , Per Div = your settings , Full Band = all the selected band ( see the photo above "bands") , and see below how the screen looks when active. Mode "Span" will show 1.7 to 22GHz in One screen like below -                               photo: 37.5GHz Ka band   THIS PHOTO :   10MHz      ( ten Mega )                                                                                  and this :    10GHz   ( ten Giga) 64.7GHz Signal ( Source not included )                                                              using antenna - Cell Band captured OPTION 003 = HIGH POWER LO DRIVE TO DRIVE EXTERNAL MIXER  SEE THE VIDEOS-
“Fully Tested. Good Working Condition.Including: 8569B Analyzer + Mixer 30 TO 80GHz + Cables included. Actual Photos and Videos. ( signal sources not included).”
Brand Agilent / HP
