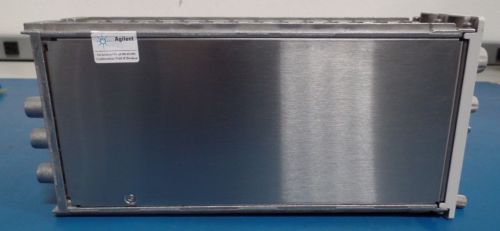

HP Agilent 86105A 20 GHz Optical / 20 GHz Electrical Plug-In Module w/ Opt 201, US $3,250.00 – Picture 0

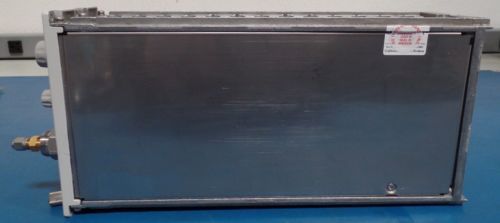

HP Agilent 86105A 20 GHz Optical / 20 GHz Electrical Plug-In Module w/ Opt 201, US $3,250.00 – Picture 1

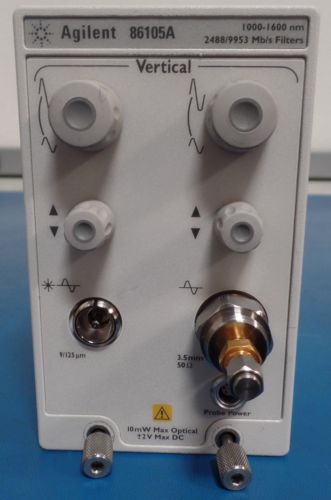

HP Agilent 86105A 20 GHz Optical / 20 GHz Electrical Plug-In Module w/ Opt 201, US $3,250.00 – Picture 2

HP Agilent 86105A 20 GHz Optical / 20 GHz Electrical Plug-In Module w/ Opt 201, US $3,250.00 – Picture 3

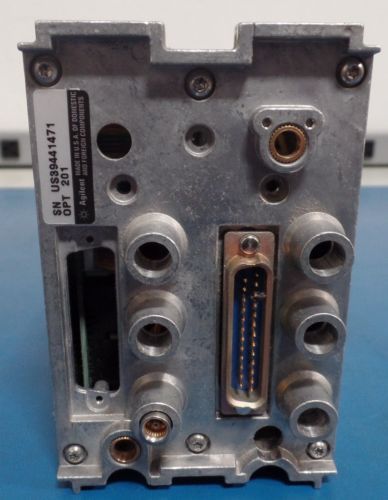

HP Agilent 86105A 20 GHz Optical / 20 GHz Electrical Plug-In Module w/ Opt 201, US $3,250.00 – Picture 4

Hp Agilent 86105a 20 Ghz Optical / 20 Ghz Electrical Plug-in Module W/ Opt 201

US $3,250.00

Laguna Hills, California, United States
Mar 6th

Open on mobile:
QR code

HP Agilent 86105A 20 GHz Optical / 20 GHz Electrical Plug-In Module w/ Opt 201 The Agilent 86105A incorporates two measurement channels -- one optical, the second electrical. Each channel has two selectable bandwidth settings. In the lower bandwidth mode of 12.4 GHz, oscilloscope noise performance is excellent, while the 20 GHz mode allows greater fidelity for high-speed signals. The optical channel also has a switchable filter to produce a calibrated SDH/SONET reference receiver. The integrated optical channel reduces mismatch loss variation by eliminating signal distorting cables and connectors associated with the use of external receivers in order to accurately characterize optical waveforms. The optical channel is calibrated at 1310 nm and 1550 nm to provide accurate display of the received optical waveform in optical power units and measurement of the signal's average power. Switchable filters for compliance testing at 155, 622, 2488 or 9953 Mb/s are available. The electrical measurement channel may be used to perform measurements on tributary electrical signals, to evaluate receiver performance in transceiver testing, for measurements with Agilent's wide range of external optical receivers, or for general purpose measurements 20 GHz amplified optical channel for 9/125 fibers · Wavelength range: 1000-1600 nm · Characteristic rms noise: 8 uW (12.4 GHz BW), 15 uW (20 GHz BW) · Reference receiver capability (155 Mb/s or 622 Mb/s or 2.488 Gb/s or 0.622/2.488 Gb/s or 2.488/9.953 Gb/s) 20 GHz electrical channel with 3.5 mm male input · Characteristic rms noise: 0.25 mV (12.4 GHz BW), 0.5 mV (20 GHz BW) · Maximum input signal: ± 2 Vdc Compatibility 86100A/B Infiniium DCA Mainframes 86100C Infiniium DCA-J Mainframe 86100D Infiniium DCA-X Mainframe Options: 201 Advanced waveform analysis Tested, guaranteed to work. No manual or other accessories other provided. CA residents add 8% CA State Sales Tax. Please contact sales@gstestequipment.com or call (949) 679-5561

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Agilent
MPN	86105A
Model	86105A option 201
