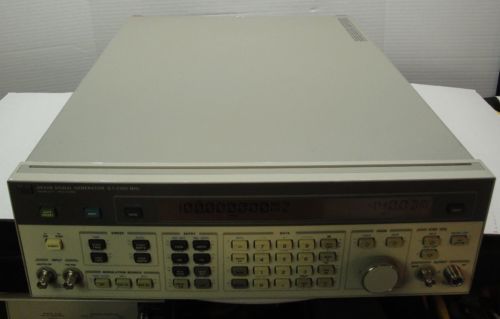

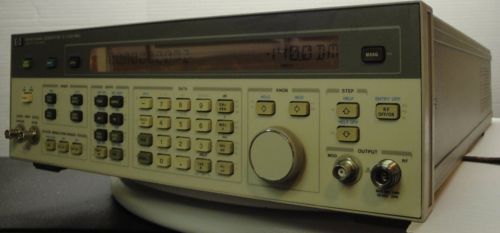

Hp / Agilent 8642b Programmable Signal Generator 100 Khz To 2100 Mhz

US $1,599.00

Fairfax, Virginia, United States
Jan 29th

Open on mobile:
QR code

All functions tested and verified No self test errors Operational and service manual included on CD Unit is very clean showing minimal use Specifications: Bands: The full range is covered in one continuous span. However, many specifications are dependent on carrier frequency. To simplify such specifications, the carrier frequency ranges are divided into bands as shown below: Band Carrier frequency (MHz) 10 1057.500001 to 2115 9 528.750001 to 1057.5 8 264.375001 to 528.75 7 132.187501 to 264.375 6 66.093751 to 132.1875 5 33.046876 to 66.09375 4 16.523438 to 33.046875 3 8.261719 to 16.523437 2 4.130860 to 8.261718 1 0.1 to 4.130859 HET 0.1 to 132.1875 Sweep Modes: Start-stop, span, and phase continuous X-Axis Output: 0 to 10 Vdc, ±10% Y-Axis Output: TTL positive true for display blanking during retrace Resolution: 1 Hz, 0.1 Hz with special function Stability Standard: Aging rate: ±2 ppm/year Option 001: <10e-9/day aging rate after 8 days warmup Spectral Purity Stability Standard: Aging rate: ±2 ppm/year Option 001: <10e-9/day aging rate after 8 days warmup Spectral Purity Specifications Residual FM (in CW, AM or Angle Modulation <1/3 max dev) 500 MHz: <1.2 Hz (0.3 to 3 kHz BW), <2 Hz (0.05 to 15 kHz BW) 1000 MHz: <2 Hz (0.3 to 3 kHz BW), <5 Hz (0.05 to 15 kHz BW) 2000 MHz: <5 Hz (0.3 to 3 kHz BW), <9 Hz (0.05 to 15 kHz BW) SSB Phase Noise at 20 kHz Offset (CW, AM or FM/PhiM <1/60 max dev) 125 MHz: -144 dBc/Hz 200 MHz: -141 dBc/Hz 500 MHz: -137 dBc/Hz 1000 MHz: -134 dBc/Hz 2000 MHz: -125 dBc/Hz Residual AM: <0.01% AM rms, 0.3 to 3 kHz BW Spurious Harmonics: -30 dBc at <= +10 dBm (-25 dBc fc > 1057.5 MHz) Subharmonics: None, fc <=1057.5 MHz (-45 dBc fc > 1057.5 MHz) Nonharmonics (>10 kHz offsets): -100 dBc (-94 dBc fc > 1057.5 MHz) Third Order Intermodulation: < -50 dBc at +10 dBm, 2 generators 25 kHz apart into a resistive combiner. Typically decreases 10 dB for every 5 dB of combined level decrease. Output Specifications Level Range: From maximum available to -140 dBm (0.023 ±V) Maximum Level Available bands 1 thru 7: +20 dBm (2.24 V) band 8: +19 dBm (2.00 V) band HET: +18 dBm (1.78 V) band 9: +17 dBm (1.41 V) band 10: +16 dBm (1.41 V) Resolution: 0.01 dB Absolute Accuracy: ±1 dB, output level >= -127 dBm Flatness: <= ±0.75 dB, +10 dBm output level Impedance: 50 ohm nominal SWR: <1.5:1, level<0 dBm; <2.0:1, level >=0 dBm Reverse Power Protection: 25W, from a 50 ohm source 50 Vdc Modulation Specifications Amplitude Modulation AM Depth: 0 to 99.9%, output level <= +10 dBm AM Resolution: 0.1% AM Indicator Accuracy at 1 kHz Rate and Up to 90% AM: ±(3.5% of setting + 1% AM), fc <=1057.5 MHz ±(5% of setting + 1% AM), fc >1057.5 MHz AM Distortion at 1 kHz Rate: Depth Distortion fc <=1057.5 MHz fc >1057.5 MHz 0to 30% AM <1% <2% 30 to 70% AM <2% <4% 70 to 90% AM <4% <6% AM 3 dB Bandwidth, Depth <=90% External DC/AC Coupling:dc/20 Hz to 100 kHz, fc: 01 to 4.13 MHz, 33.04 to 2115 MHz, HET; dc/20 Hz to 20 kHz, fc: 4.13 to 33.04 MHz Internal: Same as external AC Incidental PhiM at 1 kHz Rate and 30% AM: <0.2 radians peak Frequency Modulation Maximum FM Deviation: Carrier Maximum deviation Maximum deviation frequency dccoupled ac-coupled or internal band (the smaller of) 9 1.5 MHz 1.5 MHz or f mod X 1080 8 750 MHz 750 kHz or f mod X 540 7 375 kHz 375 kHz or f mod X 270 6 187 kHz 187 kHz or f mod X 135 5 93.8 kHz 93.8 kHz or f mod X 67.5 4 46.9 kHz 46.9 kHz or f mod X 33.75 3 23.4 kHz 23.4 kHz or f mod X 16.88 2 11.7 kHz 11.7 kHz or f mod X 8.44 1 93.8 kHz 93.8 kHz or f mod X 67.5 HET 1.5 MHz 1.5 MHz or f mod X 1080 FMResolution: 0.7% of setting or 0.0004% of maximum deviation, whichever is larger FM Indicator Accuracy, Rates <= 100 kHz: ±(5% of setting + 10 Hz) FM Distortion, Rates 20 Hz to 100 kHz: 4% for max. dev., 2% for 1/2 max. dev., 0.4% for 1/15 maximum dccoupled deviation FM 3 dB Bandwidth (dc/ac coupling): dc/20 Hz to 200 kHz (external) Incidental AM: 0.3%, 20 peak dev., 1 kHz rate, fc >400 kHz Phase Modulation Maximum Phase Deviation: Carrier frequency band Maximum deviation (radians) 9 100 8 50 7 25 6 12.5 5 6.25 4 3.13 3 1.56 2 0.78 1 6.25 HET 100 PhiM Accuracy: ±(5% of setting + 0.09 radians), 1 kHz rate Phi Resolution: greater of 0.7% of setting or 0.0004% of max. dev. PhiM Distortion: <0.4%, 1 kHz rate PhiM 3 dB Bandwidth: DC/20 Hz to 15 kHz Pulse Modulation (for output leves <= +15 dBm) Pulse On/Off Ratio: >40 dB; >80 dB, fc >1057.5 MHz Rise/Fall Time: <400 ns, 10 % to 90% Maximum Repetition Frequency: 100 kHz Minimum Pulse Width: 2 ±s Internal Modulation Oscillator Rates: 20 Hz to 100 kHz Frequency Resolution: 1% of setting Accuracy: 2% of setting Output Level Range: 0 to 3 V peak into 600 ohns Resolution: 4 mV Accuracy: ±(4% + 15 mV) within 1 second Distortion: <0.02%, 0.02 kHz to 15.8 kHz; <0.15%, >15.8 kHz Output Impedance: 600 ohms ±10% Remote Programming Specifications Interface: HP-IB (IEEE-488-1978) HP-IB Functions: Listener, talker, and controller. SH1, AH1, T5, TE0, L3, LE0, SR1, RL1, PP1, DC1, DT1, C1, C3, C28, E2 General Specifications Operating Temperature Range: 0° to 55°C Storage Temperature Range: -55° to +75°C Leakage: Conducted and radiated interference is within the requirements of MIL-STD-461V method RE02. Interference is also within the standards set by FTZ-1046. Also, RF leakage of <0.5 ±V is induced in a 2 turn loop 2.5 cm in diameter, held 2.5 cm away from any surface for ouptut levels <=0 dBm. Power Requirements: 100, 120, 220, or 240 V; +5%, -10%; 48 to 440 Hz; 300 VA max Size: 425 mm W x 133 mm H x 617 mm D (16.75 in x 5.25 in x 24.3 in) Agilent System II Module Size: 17 W x 5 1/4 H x 23 D

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	hp / Agilent
MPN	HP / Agilent
Model	HP / Agilent 8642B
Country/Region of Manufacture	United States
