Hubbell Bryant 5295 Angle Plug,15a,125v,5-15p,2pole 3-wire Grounding

US $15.00

  • Dacula, Georgia, United States
  • Jan 29th
Open on mobile:
QR code
HUBBELL BRYANT 5295 ANGLE PLUG,15A,125V,5-15P,2POLE 3-WIRE GROUNDING Product Specifications  Product Type  Plug.  Device Type  Angled Plug.  Device Grade  Heavy Duty.  Amperage  15A  Voltage  125V  Poles and Wires  2 Pole, 3 Wire.  Product Enhancement  12 Position Angle.  Color  Black/White  NEMA #  5-15P  Face/Terminal Assembly  Impact Modified Nylon.  Cord Grip  Impact Modified Nylon.  Cover (Housing)  High-Impact, V-O Valox.  Terminal Cover  Clear Polycarbonate.  Plug Blades  Brass.  Terminal Clamp Nut  Zinc-Plated Steel.  Terminal Screw  #8-32 Brass, Silver Finish on Neutral Screw, Green Finish on Grounding Screw.  Assembly Screws  Zinc-Plated Steel.  Dielectric Voltage  Withstands 1500V per UL498.  Maximum Working Voltage  250V AC or DC  Current Interrupting  Certified for current interrupting at full rated current.  Temperature Rise  Less than 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL498.  Terminal Identification  Brass-Hot; Green-Grounding; Silver-Neutral.  Terminal Accommodation  #18-#10 AWG Flexible Cord.  Product Identification  Ratings are a permanent part of the device.  Cord Accommodation  Round portable service cords in accordance with device ratings as defined in UL standard 62, CSA C22.2 No.49.  Cord Grip Range  .245"-.655" (6.2-16.6)  Flammilibility  HB or Better per UL94.  Operating Temperature  Maximum Continuous 60 deg C, Minimum -40 deg C (w/o impact).  UL Standard  UL Listed to Standard 498 (Attachment Plugs and Receptacles).  CSA Standard  Cetrified to CSA Standard C22.2 No. 42M1984 (General Use Receptacles).  UL Listing  UL Listed File #E1381- Guide #AXUT.  CSA Certification  CSA Certified File #LR16215- Guide 20T2.  Federal Specification  Federal Specification WC596 (where applicable).  Complies with:  NEMA Standards WD-1, WD-6.  Overseas Approval  NOM, CE.   supreme supremewidgets supremeauctiononlinesoftware.widgets.EbayGalleryZ.swf supremewidgets supremeauctiononlinesoftware.widgets.GalleryBasic.swf supremewidgets supremeauctiononlinesoftware.widgets.FeedbackWidgetBasic.swf

Directions

Similar products from Power plugs

Leviton L5-30 Locking Plug Twist Lock NEMA L5-30P 30A 125V 70530-P

Leviton L5-30 Locking Plug Twist Lock NEMA L5-30P 30A 125V 70530-P

  • Jamestown, New York, United States
  • Jan 29th
NEW MELTRIC 33-38043-973 DS30 INLET PLUG 3 Phase 480V-AC 30A w/3 Aux Contacts

NEW MELTRIC 33-38043-973 DS30 INLET PLUG 3 Phase 480V-AC 30A w/3 Aux Contacts

  • Massena, New York, United States
  • Jan 29th
1pc Portable Universal Extension WES4.5 5 Receptacle 13A 220V Wonpro Black

1pc Portable Universal Extension WES4.5 5 Receptacle 13A 220V Wonpro Black

  • Gadsden, Alabama, United States
  • Jan 29th
HUBBELL 23031 Connector Body PARTS ONLY

HUBBELL 23031 Connector Body PARTS ONLY

  • Anchorage, Alaska, United States
  • Jan 29th
Hubbell 8215C Hospital Grade Plug 15A 125V New Old Stock

Hubbell 8215C Hospital Grade Plug 15A 125V New Old Stock

  • Anchorage, Alaska, United States
  • Jan 29th
Hubbell 8219C Hospital Grade Plug 15A 125V PARTS ONLY

Hubbell 8219C Hospital Grade Plug 15A 125V PARTS ONLY

  • Anchorage, Alaska, United States
  • Jan 29th
Woodhead 26W47 26W75 Watertite Plug lot, Nema L5-20P 20A 3Ph 125V Rubber, Yellow

Woodhead 26W47 26W75 Watertite Plug lot, Nema L5-20P 20A 3Ph 125V Rubber, Yellow

  • Chattaroy, Washington, United States
  • Jan 29th
Hubbell HBL-430C7W WATERTIGHT 3 POLE 4 WIRE 30 AMP 3 PHASE 480 V CONNECTOR PIN

Hubbell HBL-430C7W WATERTIGHT 3 POLE 4 WIRE 30 AMP 3 PHASE 480 V CONNECTOR PIN

  • Claxton, Georgia, United States
  • Jan 29th
Leviton 3 Pole 4 Wire Angle Plug 275-T 13-30p Black 50amp Or 30amp

Leviton 3 Pole 4 Wire Angle Plug 275-T 13-30p Black 50amp Or 30amp

  • Pinehurst, North Carolina, United States
  • Jan 29th
Bryant Red Polypropylene Medium Electrical Plug Lockout Plugbox Device BLD

Bryant Red Polypropylene Medium Electrical Plug Lockout Plugbox Device BLD

  • Jamestown, New York, United States
  • Jan 29th
NEW IN BOX HUBBELL HBL5965VY VALISE YELLOW PLUG 125V 15 AMP - Electrical 3 Wires

NEW IN BOX HUBBELL HBL5965VY VALISE YELLOW PLUG 125V 15 AMP - Electrical 3 Wires

  • Hillsborough, New Jersey, United States
  • Jan 29th
Leviton Cap for 20A 3-Wire Watertight Pin & Sleeve Plug/Inlets PC320

Leviton Cap for 20A 3-Wire Watertight Pin & Sleeve Plug/Inlets PC320

  • Jamestown, New York, United States
  • Jan 29th

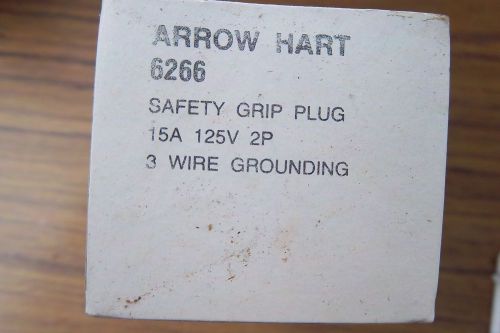

Arrow Hart 6266 Safety Grip Plug
