Hubbell Bryant Twist Locking Flanged Inlet Plug Nema L1-15p 15a 125v Hbl7524c

US $12.99

Jamestown, New York, United States
Jan 29th

Open on mobile:
QR code

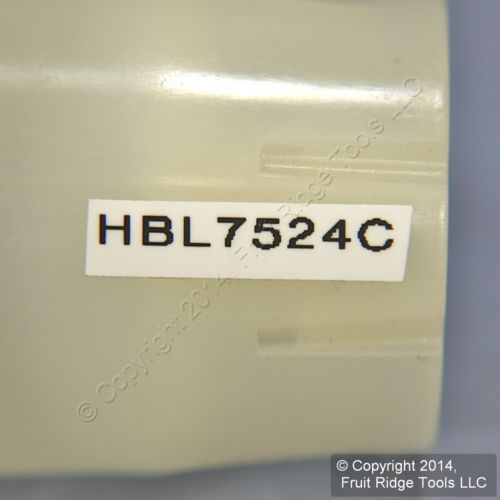

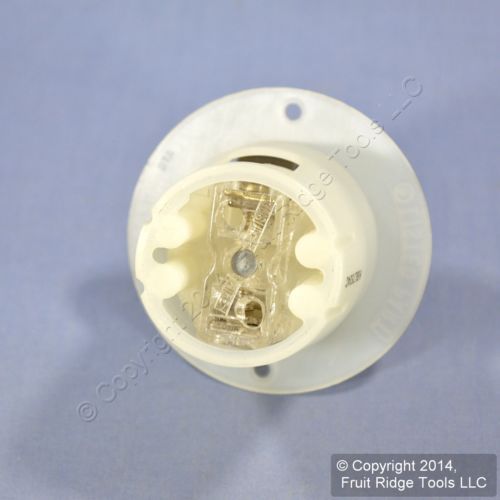

Hubbell Bryant Twist Locking Flanged Inlet Plug NEMA L1-15P 15A 125V HBL7524C Quantity in lot: 1 (Click to Enlarge) Manufacturer: Hubbell Bryant Mfg. Part #: HBL7524C Color: White Device: Flanged Inlet Features: N/A Poles: 2 Wires: 2 NEMA#: L1-15P Phase: Single Phase Grade: Industrial Specification Grade Amperage: 15 Amp Voltage: 125V Ground: Non-Grounding Hubbell Bryant HBL7524C locking flanged inlet. Industrial Specification Grade, NEMA L1-15P, 2-pole, 2-wire, non-grounding, rated 15A 125V. Terminals accomodate #18-#10 AWG. Bulk packed loose with no individual packaging or instructions. Features include:Solid brass blades are fitted and held tightly and securely in place Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position Transparent wiring chambers provide a means of visual inspection of conductors and terminals Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands Color-coded terminal screws Molded-in strip gage provides correct measurement for proper strip length of conductor Terminal identification letters on back cover ensure quick and accurate terminationCaptive terminal screws eliminate nuisance dropping and searching for missing screws Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs. Super tough nylon body resists damage from severe impact, abrasion, and chemical attack NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification Click here to see matching L1-15 plugs, connectors & receptacles. This is New Old Stock and is returnable for any reason. (SKU #HUBHBL7524C-EA-NOBOX; 0.10 Pounds) Need Wallplates for Locking Receptacles? Click the links below: 15A Wallplates (1.406" Diameter) 20A & 30A Wallplates (1.60" Diameter) Additional locking devices and information: Matching L1-15 Plugs, Connectors & Receptacles See All Locking Plugs, Receptacles and Connectors Additional Images (Click to Enlarge) (Click to Enlarge) Payments & Checkout Checkout & Combined Shipments: Please checkout AFTER you are finished shopping to take advantage of combined shipping savings. All of your items need to be in one shopping cart and paid with one payment so that we know to ship them together and you get the resultant savings. Order Changes: We will be happy to help you add to or change your order before you have made payment. Unfortunately, we are not able to add to or change your order after it has been paid. Shipping: Shipping Times: Most orders placed before 2:00 P.M. will ship that day; except e-check payments and freight shipments. (more on shipping times....) Carriers: Most orders ship USPS, please provide your PO box if you do not have street delivery. Larger items such as panels and cartons of outlets (100+) will ship via Fedex and will require a street address for delivery. HI, AK, PR, APO/FPO and US Protectorates: orders will be shipped US Postal Service. (more....) International Shipments (including Canada): will be shipped via USPS. You may choose the shipping speed during checkout. Please note that if you choose First Class Mail, it is inexpensive but it does not provide tracking and can take up to 8 weeks to arrive. We recommend choosing Priority Mail because it offers tracking and arrives significantly faster. In the event that an item is restricted by customs in your country, we will issue a full refund and cancel the transaction. (more information on international shipments...) Local Pickup and Hours of Operation: Our office hours are 9-5, Monday through Friday. We do ship Postal orders on Saturdays but we do not have office personnel on hand to answer emails. Please e-mail us to arrange for pickups (more info.....) Money Back Guarantee & Return Policy: All items are returnable for any reason within 30 days of the auction's end unless otherwise stated in the description; items must be returned in as-sold condition. All items are guaranteed to be as described and in good working order unless stated otherwise in the description. If not we will refund/replace at our option. (more on our guarantee and return policy.....) New Old Stock: Merchandise referred to as "New Old Stock" is unused in its original packaging and is usually obtained in distributor buyouts. Since these items have been in the retail chain they may have differing amounts of wear to the packaging and some may have been opened. We will inspect contents to be sure you are receiving a complete product. In the event that your item is incomplete or defective, we will send a free replacement or refund including return shipping. We are liquidators; we are not dealers or distributors of the items that we sell; We can make no guarantee that warranties on these items will be honored by the manufacturer; however, you can always rely on our 30-day money back guarantee. We use a single set of photos for most items. Packaging may differ from photo, however what you receive should be accurately represented by what is in the photo. If it is not we will pay for its return. Contact Information: Contact Information: Please contact us through eBay's contact seller link to ask questions or to arrange returns. We respond to all e-mails. We have a full return policy so there is no reason for us to avoid your e-mails if you are having a problem. If you have not heard back from us be sure to check your junk e-mail folder. (more on contact information including addresses.....) Conditions of sale: Seller assumes no responsibility for damage or actions resulting from the use or misuse of items sold. Our warranty is limited to the purchase price of the item and does not cover incidental or consequential costs. We are not able or qualified to make assessments of safety or applicability for a particular use of the items that we sell. It is the responsibility of the buyer to determine applicability and safety of each item to his/her particular use. All items are returnable for a refund after inspection by the buyer unless stated otherwise - subject to our money back guarantee policy above. By placing a bid you are acknowledging and agreeing to these terms and those set forth above.

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Hubbell Bryant
Amperage	15 Amp
Color	White
Voltage	125V
Type	Flanged Inlet
Phase	Single Phase
Additional Features	N/A
Grade	Industrial Specification Grade
Poles	2
Ground	Non-Grounding
Wires	2
MPN	HBL7524C
NEMA Number	L1-15P
UPC	N/A
