Hubbell Hbl520c9w 520c9w 20 Amp 250 V 3 Ph 4 Pole 5 Wire Connector Pin & Sleeve

US $129.95

Stuart, Florida, United States
Jan 29th

Open on mobile:
QR code

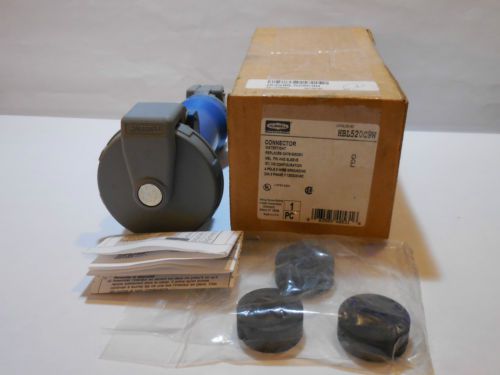

You are purchasing 1 - Hubbell HBL520C9W 20 Amp 120/208 Volt, 3 Phase, 4 Pole, 5 Wire Watertight Female Connector 520C9W IEC309 AC Pin & Sleeve NEW!!! HBL520C9W -- Pin and Sleeve Products Watertight IEC Pin and Sleeve Connector, 4P5W, 20A 3PH 120/208V Product Specifications Product Type IEC Product Type Watertight Service Style Standard Device Connector Amperage 20A Voltage 3 Phase Y 120/208V Poles and Wires 3 Pole, 4 Wire Terminal Accommodations #14 To #10 AWG copper wire only Cord clamp range .330" To .830" Color Replacement Interior Number IN520EF Hinge Spring Stainless Steel (300 series) Housing Zytel 801 Nylon Contact Carrier High-Impact Thermoset Retainer High-Impact Thermoset Terminal Screws Stainless Steel (300 series) Assembly Screws Stainless Steel (300 series) Gaskets Neoprene Cord Clamps Rynite SST35 Grommet/Glands Solid Neoprene Cover Arm Rynite SST35 Arm Spring Stainless Steel (17-1 Type) Cord Clamp Screws Stainless Steel (300 Series) Clamp Nut Nickel Plated Brass Cover Rynite SST35 Cover Screw/Rivet Nickel Plated Brass Rotating Sealing Disc Polycarbonate Ground/Phase Sleeve Brass Pin/Sleeve Spring Stainless Steel (300 Series) Certification UL Listed, CSA Certified Dielectric Withstand Voltage Withstands 3,000V AC Max Working Voltage 600V AC RMS Current Interrupting Certified for current interrupting at full rated current. Short Circuit Withstand Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle. Temperature Rise Max 30° C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%. Endurance Mechanical: 10,000 cycles, Electrical: 6,000 cycles. Impact Resistance In accordance with UL746C Cord Grip Retention Per CSA C22.2 No. 182.1 / UL1682. Cord Accommodation Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards. Terminal Identification Terminals identified in accordance with North American and International conventions. Product Identification Identification and ratings are a part of the external label and molded into the receptacle mount. Moisture Resistance Watertight per IEC 60309-1 Ingress Protection IP67 Suitability Flammability UL94-5VA and V-0 classification. Operating Temperatures Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact. UV Resistance All materials are UV Stabilized. Certifications UL Listed, CSA Certified. Device Description Every Hubbell non-metallic Pin and Sleeve product is designed to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service. UPC Number 78358540531 Weight in LBs 1.55 Link to Drawing Library Click here for Library Link to PDF Catalog Click here for Catalog We purchase the above item(s) in surplus and boxes may show signs of long shelf wear however the product is new unless otherwise noted. Some of the boxes or blister packages that contain this product may have scuffs, cracks, marks or tears from being moved around on shelves or place to place. However the product is new and does not affect the performance of the product. Seller's payment & shipping instructions Payment is due no later than 2 days after auction has ended or once you commit to buy the item(s). If you can’t make the payment through PayPal within that time frame please contact me. I only accept PayPal. Payment through PayPal will have to be cleared prior to shipping. Upon payment received through PayPal I will ship the item (s). I will send an email confirmation with the tracking number. Payment Paypal is the only method of payment accepted. I will ship within three business day after payment is received/cleared from Paypal. PAYMENT MUST BE RECEIVED WITHIN 2 DAYS AFTER COMPLETION OF THE AUCTION unless other arrangements are made with the seller. Buyers that do not complete the auction will be reported to Ebay. Shipping Shipping does not include insurance. If you would like insurance, please let me know and I will advise of the cost. Shipping is available to the contiguous 48 United States only. We do not ship to Hawaii, Alaska, and Puerto Rico. We do not ship to APO/FPO addresses or P.O. Boxes. Return Policy We offer a 7 day Standard Return Policy. If you need to return your product for any reason, you can arrange for this within 7 days of receiving it. Please contact me via email. I will provide you with a return address. Returned products must be in their original package and must be brand new unused. Some of our products are offered with free shipping, meaning shipping has been included in the price to provide you with the total cost of the order. If you return your purchase you will be responsible for the cost of shipping it back to our address. You will be refunded the purchase price less our actual outbound shipping cost. Return processing time generally takes a few weeks. In the unlikely event you receive a product that is incorrect, missing parts, or damaged we will send replacements to you. Please contact me via email.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Hubbell
MPN	HBL520C9W
Model	Pin & Sleeve
