Humboldt H-4325 Motorized Sieve Shaker Laboratory Testing Equipment

US $629.95

Hollywood, Florida, United States
Mar 3rd

Open on mobile:
QR code

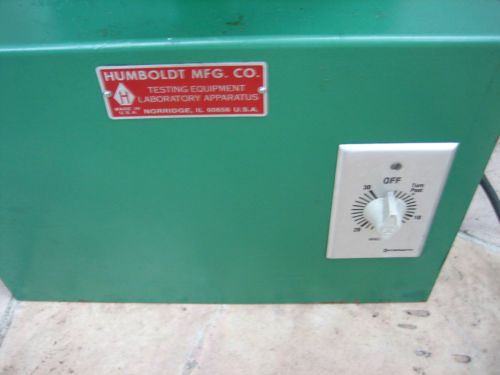

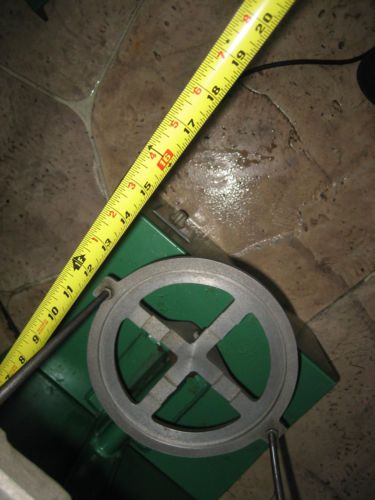

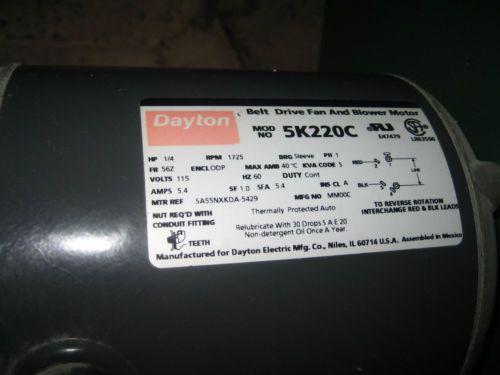

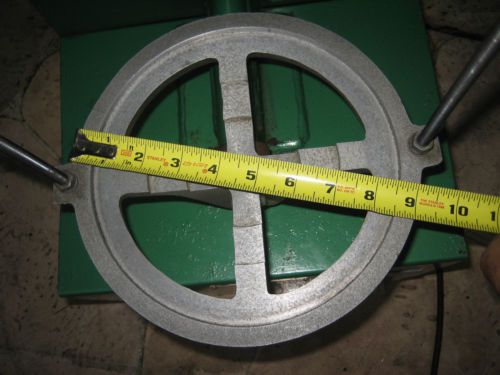

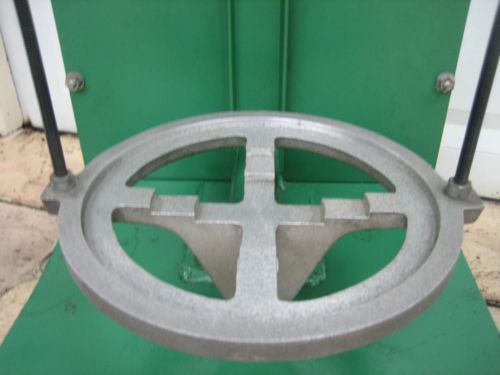

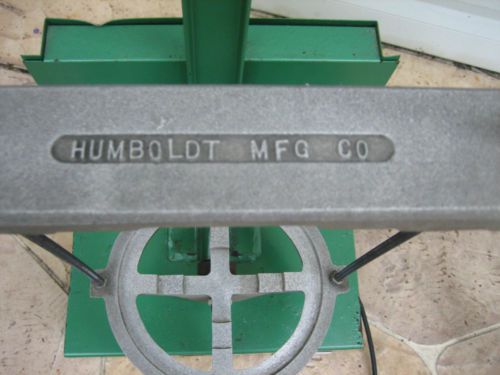

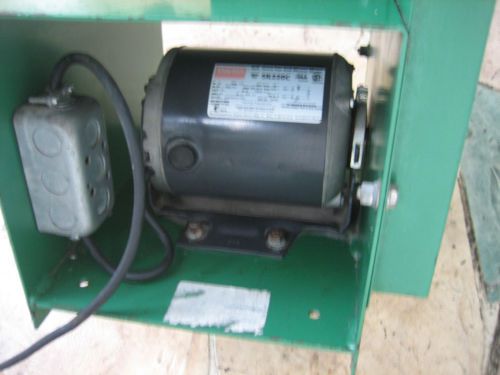

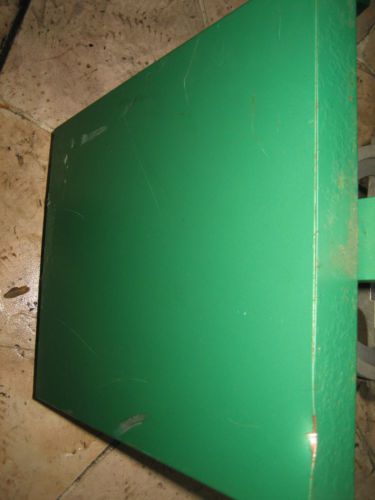

HUMBOLDT H-4325/5DPL6 MOTORIZED SIEVE SHAKER LABORATORY TESTING EQUIPMENT NOT QUITE SURE OF WHICH MODELS FOR SURE BUT MODELS MATCH BOTH NUMBERS REFER TO WEBSITE TO COMPARE ITS UNDER "HUMBOLDT" ???? HUMBOLDT ????? 5DPL6 Motorized Sieve Shaker 3”, 5”, or 8” Sieve Diameter 16 @ 3”, 12@5” or 10@8” Number of Full Size Sieve 18 Half Size Sieve C136 ASTM 30 Minutes Timer Range Analog Timer Type Yes Mounting Required 1/4 HP 115 VAC 50/60 Hz Power Required I HAVE A BUY IT NOW OF $ 629.95 SHIPPED TO YOUR DOOR WITHIN THE UNITED STATES.... ********THATS A $ 1000.00 SAVINGS FROM NEW******* I'VE CHECKED MULTIPLE SITES AND NEVER AT ANY TIME HAS ONE OF THESE UNITS BEEN SOLD AS LOW AS THIS ONE. H-4325 UNIT WORKS PERFECTLY AND DOES HAVE SOME MINOR SCRATCHES/DINGS BUT DOES NOT HINDER MACHINE AND/OR ITS PERFORMANCE This test method determines the particle size distribution of fine and coarse aggregates by sieving. Refer to ASTM C136. The sieve shaker consists basically of a cradle for holding the sieves, a power unit and a base. The cradle consists of a platform fastened to the lower ends of two vertical support rods. The upper ends of which are shock mounted to a horizontal support that are free to pivot about its mounting. A sieve holder, a retaining ring and nuts on the vertical support rods hold the top bar firmly against the nest of sieves. Model H-4325: Accommodates sieve frames from 3" to 8" diameter, 10 or less full height and 18 or less half height plus pan and cover. Built-in timer. Motorized. Model H-4330: Accommodates sieve frames from 8" to 12" diameter, seven 3" deep full height, ten 2" deep intermediate height or thirteen 1-5/8 deep half height sieves plus pan and cover. Built-in timer. Motorized. Model H-4310: Hand-cranked model similar to H-4325 for use in the field or other locations where electric power is not readily available. Sieve Set: Order separately, see sieve chart. Installation & Method Humboldt sieve shakers are shipped complete and ready for operation. Remove all packing materials. Place on sturdy and level surface. Plug power cord into an appropriately grounded outlet. Collect the field sample according to ASTM D75 and reduce to a test sample according to ASTM C702. Dry to constant weight. Operation Select the sieves with mesh sizes that are to be used and stack them together beginning with a pan at the bottom. Then the finest sieve followed by increasing coarser sieves with the coarsest on top. Place stack of sieves in the shaker with the bottom pan resting on the cradle platform. Cover the top sieve so that the stack can be easily secured in the shaker. Secure the stack with the sieve hold-down bar on the top of the stack and screw the nuts on the vertical support rods firmly against the holder. Adjust and tighten the nuts at the top of the vertical support rods according to the weight of the material in the sieves. The greater the weight of the load, the tighter the nuts should be. Start the motor and observe the initial sieving action to see if the sieves are fastened securely, readjust and tighten the nuts if necessary. Set the built-in timer for the desired shake time and turn the machine on. The machine will stop when the timer has expired. REPORTS: Weigh the materials and record the weight and percentage of the original dry weight that is retained in each individual sieve and in the bottom pan. Adjusting Instruction Select the sieves with mesh sizes that will supply the information needed and nest them beginning with a pan on the bottom. Then the finest sieve followed by increasingly coarser sieves with the coarsest sieve on top. Place a sample into the top sieve and place a cover on it. Place the stack of sieves on the shaker and secure with the hold-down bar, clamping it in place with the knobs on each side. Depending on the weight of the sieve stack, an adjustment upward of the lower cradle will be needed. Turn the large pulley and note when the eccentric drive has moved the bottom cradle to the extreme right or left of its travel. At this point the shoulder bolt THIS PIECE OF EQUIPMENT RETAILS FOR A BASE PRICE OF $2220.00 PLUS SHIPPING. I HAVE A BUY IT NOW OF $ 1295.00 SHIPPED TO YOUR DOOR WITHIN THE UNITED STATES.... ********THATS A $ 1000.00 SAVINGS******* I'VE CHECKED MULTIPLE SITES AND NEVER AT ANY TIME HAS ONE OF THESE UNITS BEEN SOLD AS LOW AS THIS ONE. IF YOU ARE INTERESTED IN THIS TYPE OF MACHINERY I HAVE A FEW OTHERS I AM LISTING NOW... ESTATE FIND MANY OTHER ITEMS TO BE LISTED IMMEDIATELY! QUESTIONS ARE ENCOURAGED PLEASE ASK BEFORE YOU BID THANKS. SORRY NO INTERNATIONAL SHIPPING.. UNLESS WE DISCUSS PRICES VIA E-MAIL FIRST THANKS! I WILL COMBINE SHIPPING ON MULTIPLE ITEMS PURCHASED. I DO NOT SHIP OVER SEAS SORRY. DON'T FORGET TO CHECK OUT MY OTHER ESTATE FINDS. ADD ME TO YOUR FAVORITE SELLERS LIST. NEW ITEMS ADDED ALL THE TIME
