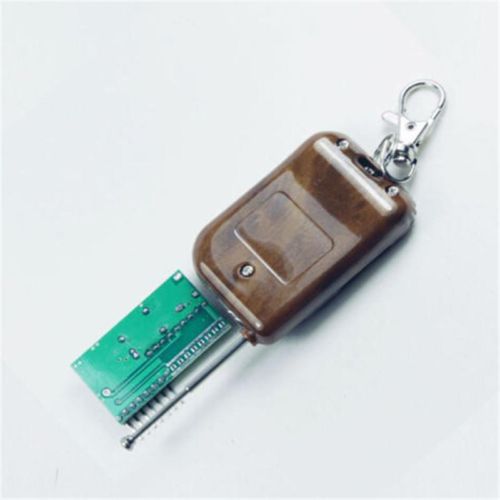

IC2272/2262 4 channel wireless remote control kits 4 key wireless remote control, US $2.72 – Picture 1

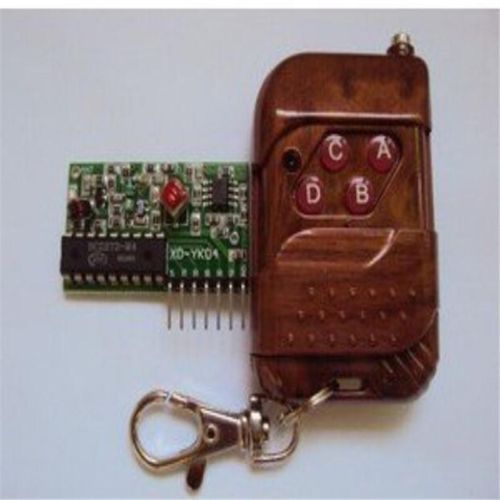

IC2272/2262 4 channel wireless remote control kits 4 key wireless remote control, US $2.72 – Picture 2

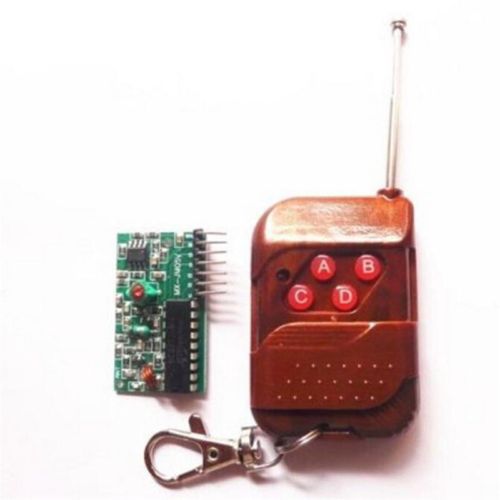

IC2272/2262 4 channel wireless remote control kits 4 key wireless remote control, US $2.72 – Picture 3

Ic2272/2262 4 Channel Wireless Remote Control Kits 4 Key Wireless Remote Control

US $2.72

HK, China
Jan 29th

Open on mobile:
QR code

Description Introductions: Remote control: 1.Operating voltage: DC12V (27A/12V battery x1) 2.Operating Current: 10mA @ 12V 3.Radiated power: 10mw @ 12V 4.Modulation mode: ASK (Amplitude Modulation) 5.Transmitting frequency: 315MHZ (SAW frequency stabilization) 6.Transmission distance :50-100M (Open field the receiver sensitivity -100dbm) 7.Encoder types: fixed code 8. The frequency of this product is 315 mhz. 9. Oscillation resistance: 1.5M With decoding receiver board: 1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay. 2.Size: 6.6*22*41mm There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high. Module function description: This module contains no self-locking function, simple implementation, wireless remote control by pressing a key, the receiver output a high level, the corresponding output when key releases. High level at the receiving end disappear, and each channel are independent of each other, each other. The output of high level can directly drive the relay The corresponding relationship between The output of The receiver pins: A - > D2 B - > D0 C - > D3 Package Included: 1 x IC2262/2272 4 channel wireless remote control kits 4 key For Arduino (without battery) Preview Engineered for professional eBay sellers! On Oct-24-14 at 01:47:00 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Buytra
Transmitting frequency	315MHZ (SAW frequency stabilization)
Model	wireless remote control
Transmission distance	50-100M
Size	6.62241mm
Encoder types	fixed code
Operating voltage	DC12V
frequency	315 mhz
Operating Current	10mA @ 12V
Oscillation resistance	1.5M
Modulation mode	ASK (Amplitude Modulation)
Package includes	1 pcs
