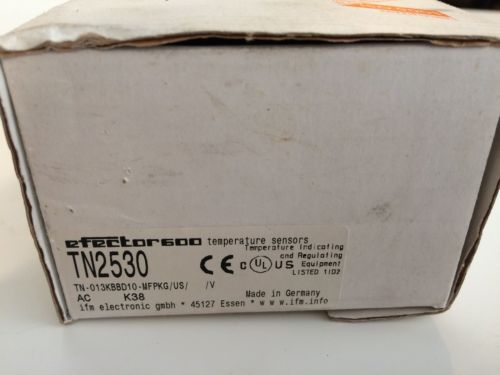

Ifm Efector Electronics Tn2530 Temperature Sensor 4-20ma Analog Input

US $135.00

Catawba, South Carolina, United States
Jun 9th

Open on mobile:
QR code

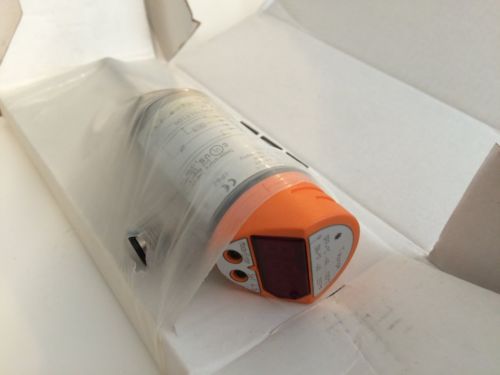

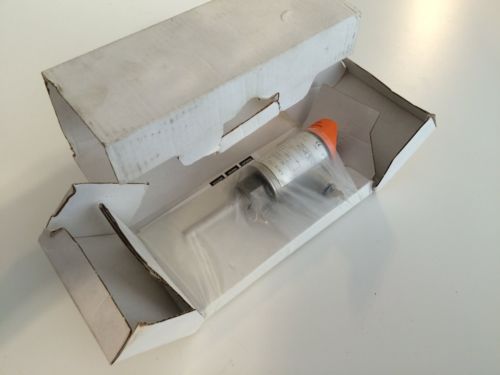

This is a new IFM Efector TN2530 analog temperature sensor. It had been on the shelf for a while, and we no longer need it. Product characteristics Electronic temperature sensor Compact type for adapter Quick disconnect Process connection: internal thread M18 x 1.5 for adapter gold-plated contacts Switching output, analog output 4...20 mA or 0...10 V 7-segment LED display Measuring range: -40...125 °C / -40...257 °F Measuring element: 1 x Pt 1000, to DIN EN 60751, class B Application Application liquids and gases Pressure rating [bar] 300 Minimum installation depth [mm] 15 Electrical data Electrical design DC PNP Operating voltage [V] 20...30 DC Current consumption [mA] < 66 Insulation resistance [M?] > 100 (500 V DC) Protection class III Reverse polarity protection yes Outputs Output Switching output, analog output 4...20 mA or 0...10 V Output function 1 x normally open / closed programmable + 1 x analog (4...20 mA / 0...10 V, scalable) Current rating [mA] 250 Voltage drop [V] < 2 Short-circuit protection Yes (non-latching) Overload protection yes Analog output 4...20 mA (Rmax: 500 ?) / 0...10 V (Rmin: 2000 ?) Measuring / setting range Measuring range -40...125 °C -40...257 °F Analog start point, ASP °C / °F -40...115 / -40...239 Analog end point, AEP °C / °F -30...125 / -22...257 Setting range Set point, SP -39.5...125 °C -39...257 °F Reset point, rP -40...124.5 °C -40...256 °F in steps of 0.5 °C 1 °F Resolution Switching output [K] 0.5 Analog output [K] 0.125 Display [K] 0.5 Accuracy / deviations Switch point accuracy [K] ± (Pt 1000 + 0.2 K) Analog output [K] ± (Pt 1000 + 0.2 K + 0.4%) Display [K] ± (Pt 1000 + 0.2 K + 1/2 Digit) Temperature drift ( / 10 K) 0.1 Reaction times Power-on delay time [s] 1.5 Dynamic response T05 / T09 [s] 1 / 3 *) Measuring / display cycle [ms] [ms] 200 Integrated watchdog yes Software / programming Adjustment of the switch point Programming button Programming options hysteresis / window; normally closed/open; min./max. memory reset; °C/°F selectable; adjustment up to 10 K; analog output selectable and scaleable Environment Ambient temperature [°C] -25...70 Storage temperature [°C] -40...100 Protection IP 67 Tests / approvals EMC EN 61000-4-2 ESD: 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated: 10 V/m EN 61000-4-4 Burst: 2 kV EN 61000-4-6 HF conducted: 10 V Shock resistance DIN IEC 68-2-27: 50 g (11 ms) Vibration resistance DIN EN 60068-2-6 20 g (10...2000 Hz) Mechanical data Process connection internal thread M18 x 1.5 for adapter Materials (wetted parts) stainless steel 316L / 1.4404 Probe length L [mm] 45 Housing materials stainless steel (304S15); PBT (Pocan); PC (Makrolon); EPDM/X (Santoprene); FPM (Viton) Weight [kg] 0.244 Displays / operating elements Display Switching status LED red Function display 7-segment LED display Measured values 7-segment LED display Electrical connection Connection M12 connector; gold-plated contacts Wiring TN2530 - Wiring~Print wiring diagram~ Programming of the output function: Hno = hysteresis / N.O. Hnc = hysteresis / N.C. Fno = window function / N.O. Fnc = window function / N.C.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Efector
MPN	TN2530
Model	TN2530
