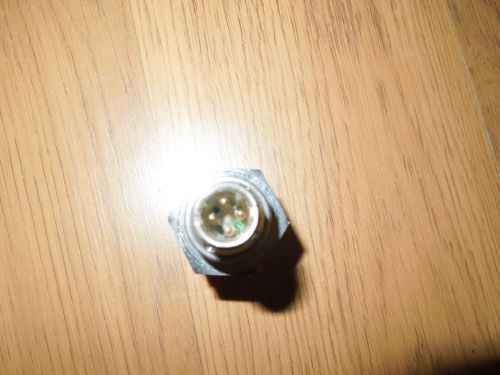

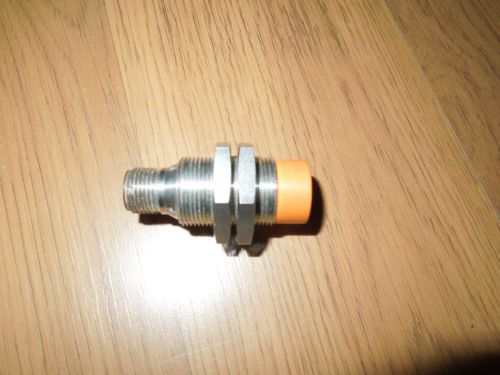

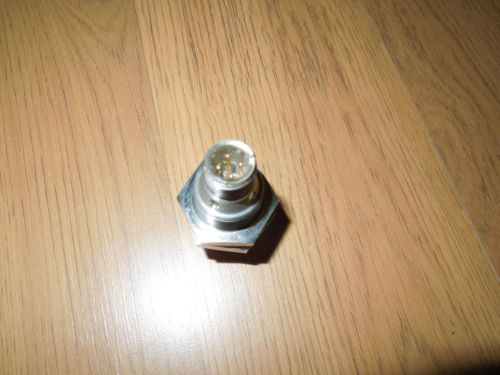

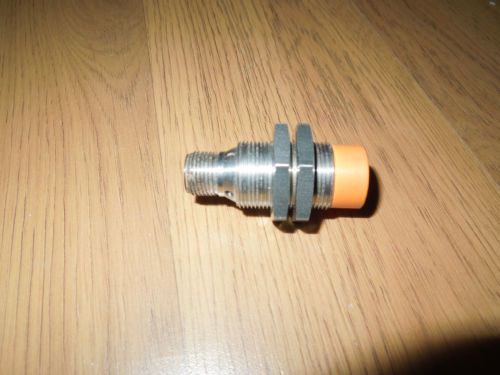

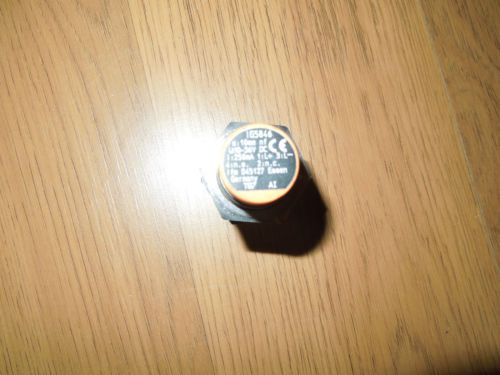

Ifm Efector100 Ig5846 Igb4010-cpkg/v4a/us-104-dpa Rt Inductive Sensor 0760-0607

US $39.99

  • Gaithersburg, Maryland, United States
  • Jan 29th
 This auction is for a used but in perfect working conditions IFM Efector100 IG5846  IGB4010-CPKG/V4A/US-104-DPA RT Inductive Sensor 0760-0607 This item was installed for 2 months in a working machine before removed !! Item was fully tested before removed!! 14 days warranty for any DOA!! Warranty seal will be posted on item when shipped. Shipping to USA and Canada other locations please request a quote before bidding !!! Product characteristics Inductive sensor Metal thread M18 x 1 Quick disconnect gold-plated contacts Sensing range 10 mm; [nf] non-flush mountable Electrical data Electrical design DC PNP Operating voltage [V] 10...36 DC Current consumption [mA] < 15 (24 V) Protection class II Reverse polarity protection yes Outputs Output function complementary Voltage drop [V] < 2.5 Leakage current [mA] < 0.5 Current rating [mA] 250 Short-circuit protection Yes (non-latching) Overload protection yes Switching frequency [Hz] 300 Monitoring range Sensing range [mm] 10 Real sensing range (Sr) [mm] 10 ± 10 % Operating distance [mm] 0...8.1 Accuracy / deviations Correction factors mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.4 / aluminium approx. 0.3 / copper approx. 0.2 Hysteresis [% of Sr] 3...15 Switch-point drift [% of Sr] -10...10 Environment Ambient temperature [°C] -25...80 Protection IP 67 Tests / approvals EMC EN 61000-4-2 ESD:  4 kV CD / 8 kV AD EN 61000-4-3 HF radiated:  3 V/m (80...1000 MHz) EN 61000-4-4 Burst:  2 kV EN 61000-4-5 Surge:  0.5 kV (line to line, Ri: 2Ohm) EN 61000-4-6 HF conducted:  3 V (0.15...80 MHz) EN 55011 (Emission):  class B MTTF [Years] 1447 Mechanical data Mounting non-flush mountable Housing materials stainless steel 316Ti / 1.4571; active face: PBT (Pocan) Weight [kg] 0.042 Displays / operating elements Output status indication LED red (4 x 90°) Electrical connection Connection M12 connector; gold-plated contacts Wiring
